SCAME204.WB11D-T232 SCAME WALL BOX 1 SOCKET TYPE 2

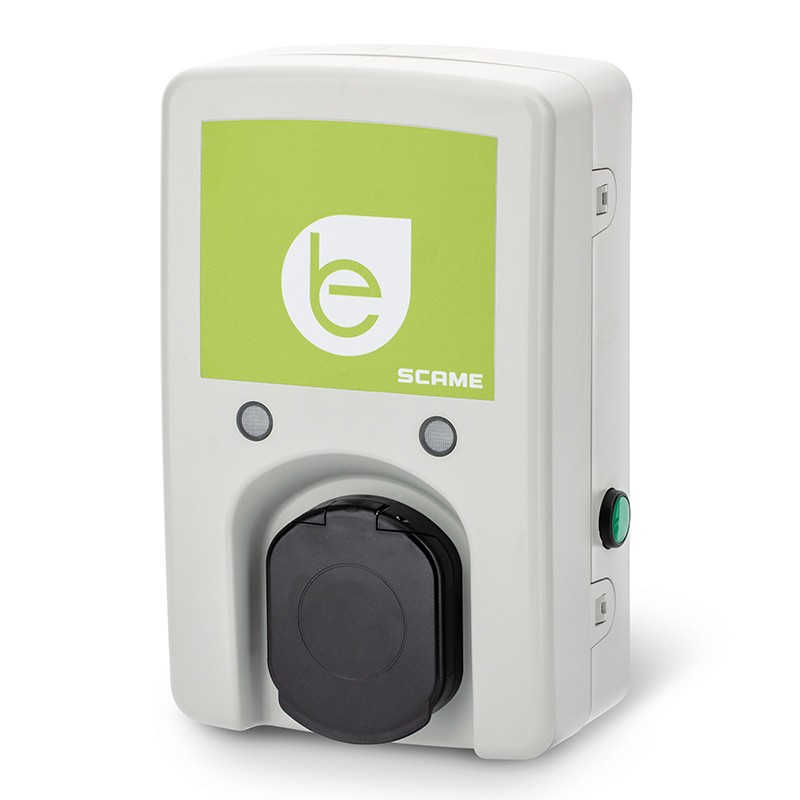

SCAME 204.WB11D-T232 204.WB11D-T232 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

204.WB11D-T232 SCAME WALL BOX 1 SOCKET TYPE 2

Reference: 204.WB11D-T232

Manufacturer: SCAME

Description:

WALL BOX 1 SOCKET TYPE 2
WALL BOX 1 SOCKET TYPE 2 RFID
Type 2 1P+N+E 32A 230V~ 7,4kW 32A 230V 1P+N+E IP54 IK08

Categories:

  • Industrial socket/plug applications > Charging device E-Mobility
  • SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Commercial Series
WB Series
Synthetical description
WALL BOX 1 SOCKET TYPE 2
Material
ENGINEERING PLASTIC
Rated current
32A
Rated voltage
230V
Working frequency
50/60Hz
Poles
1P+N+E
Protection degree IP
IP54
Working temperature
-25°C/+40°C
GLOW WIRE
GW 650°C
Protection degree IK
IK08
Colour
GREY
Saline solution
Resistant
UV protection
UV resistant
Mounting version
SURFACE MOUNTING
Dimensions
215x350x120mm

Version
BUSINESS
EV standard
Type 2 1P+N+E 32A 230V~ 7,4kW
HMI (Human-Machine Interfaces)
LCD 2x20 char
User authentication
RFID authentication
EV functions
charge in mode 3 with pwm circuit pilot
predisposition for serial communication
energy metering and current consumption
identification of authorized user
working in mode stand-alone free or personal
protection against direct contact Safety Child Shutters
identification of connected cord-set size
managing of latching system
EV equipment
1 terminal strip 3x6mm²
1 power supply 24Vdc 36W
1 fuse holder 1P+N gG 4A
1 DC Leakage detector
1 control card
1 stop charge push-button (mode free)
1 lcd display 2x20 rows backlight
1 reader RFID 13,56MHz
1 modular contactor 2P 40A 24Vdc
1 digital energy meter 1P+N 40A
1 couple of service led
EV excluded
upstream protections (by the installer):
1 circuit breaker 1P+N C40 30mA ist. A
emergency line 24Vdc (optional)

DATASHEET - PDF

Title
Size
Type
204.WB11D-T232 204.WB11D-T232 EN_204.WB11D-T232.pdf
46 Kbytes
PDF CATALOGUE SCAME EN
20 Mbytes
