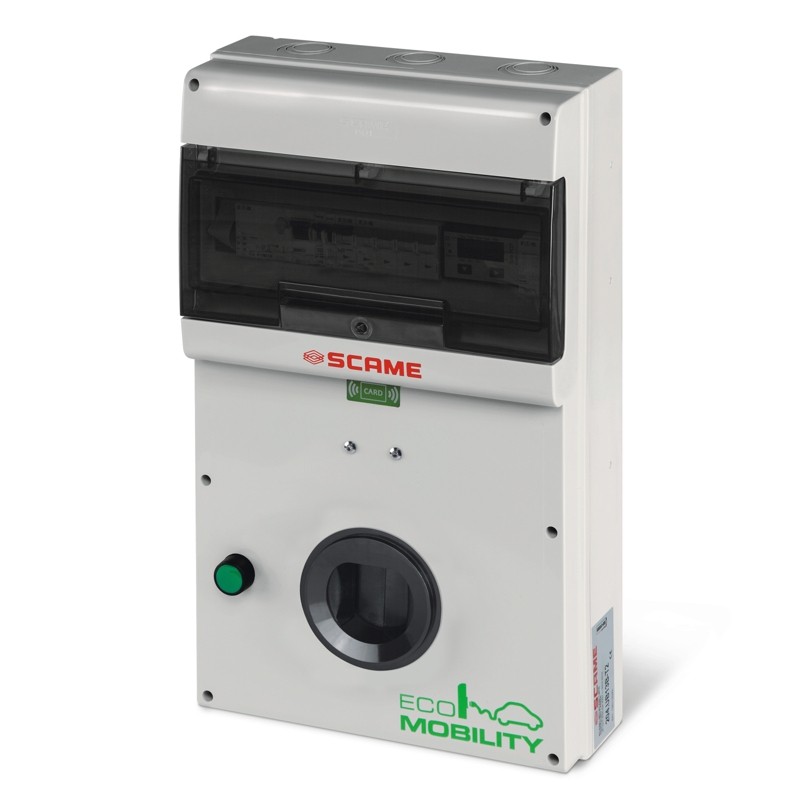

204.UB13B-3C SCAME CONSUMER UNIT 1 SOCKET 3C 22kW IP54 32A View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

204.UB13B-3C SCAME CONSUMER UNIT 1 SOCKET 3C 22kW IP54 32A

204.UB13B-3C

SCAME

CONSUMER UNIT 1 SOCKET 3C 22kW IP54 32A

Type 3C 3P+N+E 32A 400V~ 22kW 32A 400V 3P+N+E IP54 IK07

More details


Connector for electric vehicles - SCAME > LIBERA Series - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

Best sellers

▲

More info

▲


Commercial Series
UB Series
Synthetical description
CONSUMER UNIT 1 SOCKET
Material
ENGINEERING PLASTIC
Rated current
32A
Rated voltage
400V
Working frequency
50/60Hz
Poles
3P+N+E
Protection degree IP
IP54
Working temperature
-25°C/+40°C
GLOW WIRE
GW 650°C
Protection degree IK
IK07
Colour
GREY
Saline solution
Resistant
UV protection
UV resistant
Mounting version
SURFACE MOUNTING

Version
BUSINESS
EV standard
Type 3C 3P+N+E 32A 400V~ 22kW
HMI (Human-Machine Interfaces)
None
EV specifications
Charging station for electric vehicles with wall installation (or on a pole) made of grey technopolymer resistant to impact and UV rays, IP54 degree of protection, size 328 X 550 X 140 mm.Container with lockable window for 16 DIN modules with status LEDs.<br>Station equipped with a type 3C socket with a protective shutter compliant with the CEI EN 62196-2 standard and suitable for charging in mode 3 in compliance with the CEI EN 61851-1 standard (IPXXD degree of protection is guaranteed without further disconnecting devices).<br>Socket equipped with plug locking system to prevent accidental removal and interlocking of the cover to prevent tampering and unauthorised access.<br>Maximum deliverable current 32 A three phase (22 kW) with identification of the size of the connected cable.<br>Station complete with automatic and differential protection devices (type B for three-phase socket) and digital meter for the measurement of the energy delivered and the control of the absorbed current.<br>Set up for external 24 V DC emergency power supply system to guarantee continuity of service in case of main AC power failure.<br>Set up for communication over RS485 serial line (NET mode with management via server).<br>RFID reader for user recognition and management of the charge. Operation in FREE or PERSONAL stand-alone mode.<br>STOP button to end the charge and allow plug extraction (FREE mode).<br>Operating temperature -25°C to +40°C, IK07 impact resistance.<br>Possibility of accessorising the station with pole support and galvanised steel plate.<br>Compliant with CEI EN 61851-1, CEI EN 62196-2, CEI EN 61439-7, CEI EN 60304-7-722 standards and complete with CE marking.<br>

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
204.UB13B-3C 204.UB13B-3C EN_204.UB13B-3C.pdf 23 Kbytes 204.UB13B-3C 204.UB13B-3C EN_204.UB13B-3C.pdf
