> SCAME>Connector for electric vehicles - SCAME>LIBERA Series >204.UB11L-3C SCAME CONSUMER UNIT 1 SOCKET 3C 3,5kW IP44 16A
Previous Product Next Product

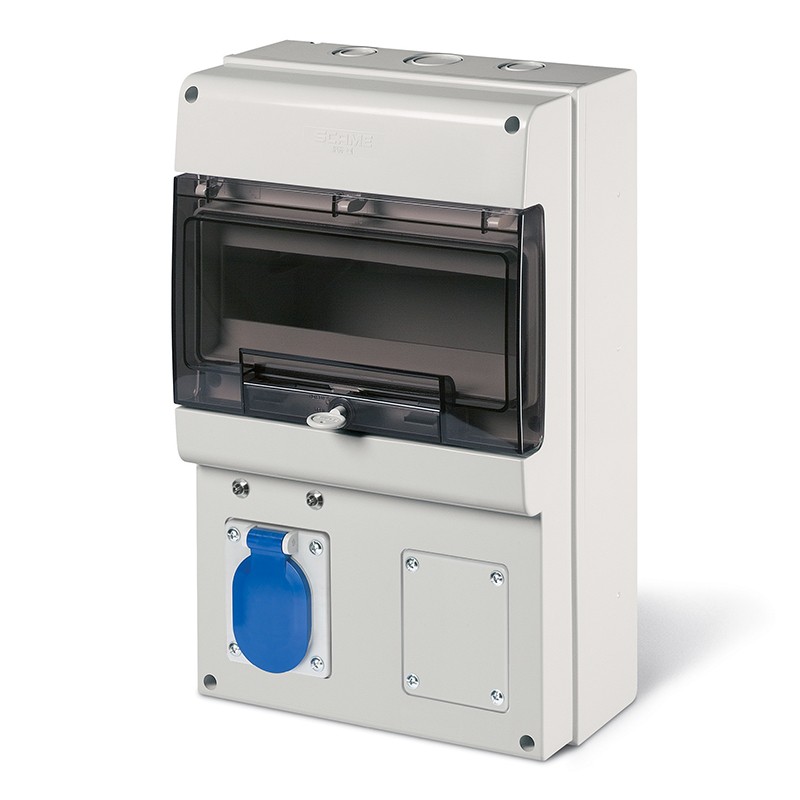

204.UB11L-3C SCAME CONSUMER UNIT 1 SOCKET 3C 3,5kW IP44 16A View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

204.UB11L-3C SCAME CONSUMER UNIT 1 SOCKET 3C 3,5kW IP44 16A

204.UB11L-3C

SCAME

CONSUMER UNIT 1 SOCKET 3C 3,5kW IP44 16A

Type 3C 1P+N+E 16A 230V~ 3,7kW 16A 230V 1P+N+E IP44 IK07

More details


Connector for electric vehicles - SCAME > LIBERA Series - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

Best sellers

▲

More info

▲


Commercial Series
UB Series
Synthetical description
CONSUMER UNIT 1 SOCKET
Material
ENGINEERING PLASTIC
Rated current
16A
Rated voltage
230V
Working frequency
50/60Hz
Poles
1P+N+E
Protection degree IP
IP44
Working temperature
-25°C/+40°C
GLOW WIRE
GW 650°C
Protection degree IK
IK07
Colour
GREY
Saline solution
Resistant
UV protection
UV resistant
Mounting version
SURFACE MOUNTING

Version
SOLO
EV standard
Type 3C 1P+N+E 16A 230V~ 3,7kW
HMI (Human-Machine Interfaces)
None
EV specifications
Charging station for electric vehicles with wall installation (or on a pole) made of grey technopolymer resistant to impact and UV rays, IP44 degree of protection, size 256 X 400 X 140 mm.Container with lockable window for 16 DIN modules with status LEDs.<br>Station equipped with a type 3C socket with a protective shutter compliant with the CEI EN 62196-2 standard suitable for charging in mode 3 in compliance with the CEI EN 61851-1 standard (IPXXD degree of protection is guaranteed without further disconnecting devices).<br>Maximum deliverable current 16 A single-phase (3.5 kW) with identification of the connected cable size and with digital meter for the measurement of the energy delivered and control of the absorbed current.<br>Set up for communication on RS485 serial line.<br>For correct installation and commissioning an external upstream protection is necessary, using a 2P D20 30mA circuit breaker ist.<br> A.<br>Stand-alone FREE operation.<br>Operating temperature -25°C to +40°C, IK07 impact resistance.<br>Possibility of accessorising the station with pole support and galvanised steel plate.<br>Compliant with CEI EN 61851-1, CEI EN 62196-2, CEI EN 61439-7, CEI EN 60304-7-722 standards and complete with CE marking.<br>

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
Download general catalog Download general catalog
