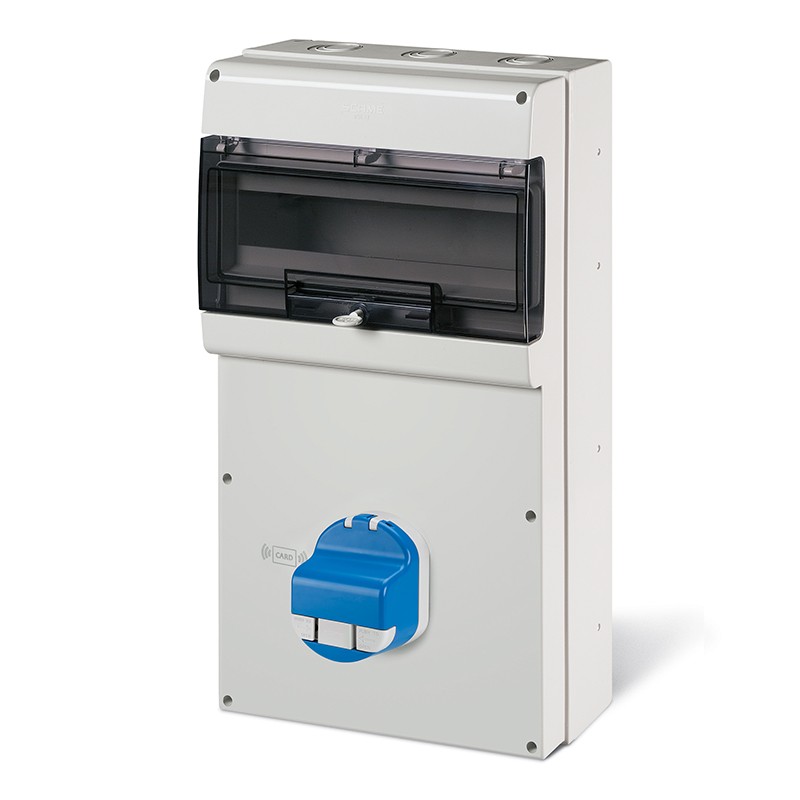

204.UB11B-UN SCAME CON. UNIT 1 SOCKET WITH LOCK UNEL 3,5kW View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

204.UB11B-UN SCAME CON. UNIT 1 SOCKET WITH LOCK UNEL 3,5kW

204.UB11B-UN

SCAME

CON. UNIT 1 SOCKET WITH LOCK UNEL 3,5kW

DE 2P+E 16A 230V~ 3,7kW 16A 230V 1P+N+E IP54 IK07

More details


Connector for electric vehicles - SCAME > LIBERA Series - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

Best sellers

▲

More info

▲


Commercial Series
UB Series
Synthetical description
CON. UNIT 1 SOCKET WITH LOCK
Material
ENGINEERING PLASTIC
Rated current
16A
Rated voltage
230V
Working frequency
50/60Hz
Poles
1P+N+E
Protection degree IP
IP54
Working temperature
-25°C/+40°C
GLOW WIRE
GW 650°C
Protection degree IK
IK07
Colour
GREY
Saline solution
Resistant
UV protection
UV resistant
Mounting version
SURFACE MOUNTING

Version
BUSINESS
EV standard
DE 2P+E 16A 230V~ 3,7kW
HMI (Human-Machine Interfaces)
None
User authentication
RFID authentication
EV functions
protection against overcurrents and electric shock
predisposition for serial communication
energy metering and current consumption
identification of authorized user
working in mode stand-alone free or personal
protection against direct contact Safety Child Shutters
managing of lid locking and latching system
EV equipment
1 terminal strip 3x6mm²
1 power supply 24Vdc 36W
1 fuse holder 1P+N gG 4A
1 control card
1 stop charge push-button (mode free)
1 reader RFID 13,56MHz
1 digital energy meter 1P+N 40A
1 couple of service led
1 modular contactor 2P 25A 24Vdc
1 circuit breaker 1P+N D20 30mA ist. A
EV excluded
emergency line 24Vdc (optional)
EV specifications
Charging station for electric vehicles with wall installation (or on a pole) made of grey technopolymer resistant to impact and UV rays, IP54 degree of protection, size 328 X 550 X 140 mm.Container with lockable window for 16 DIN modules with status LEDs.<br>Station equipped with one UNEL-type (domestic) socket suitable for charging in mode 1 in compliance with the CEI EN 61851-1 standard. The use of this socket is allowed only in those environments where mode 3 is not mandatory.<br>Maximum deliverable current 16 A single-phase (3.5 kW).<br>Socket equipped with plug locking system made by blocking the opening of the lid even when the plug is inserted to prevent tampering and unauthorised access.<br>Station complete with automatic and differential protection devices and digital meter for the measurement of the energy delivered and the control of the absorbed current.<br>Set up for external 24 V DC emergency power supply system to guarantee continuity of service in case of main AC power failure.<br>Set up for communication over RS485 serial line (NET mode with management via server).<br>RFID reader for user recognition and management of the charge. Operation in FREE or PERSONAL stand-alone mode.<br>STOP button to end the charge and allow plug extraction (FREE mode).<br>Operating temperature -25°C to +40°C, IK07 impact resistance.<br>Possibility of accessorising the station with pole support and galvanised steel plate.<br>Compliant with CEI EN 61851-1, CEI EN 62196-2, CEI EN 61439-7, CEI EN 60304-7-722 standards and complete with CE marking.<br>
