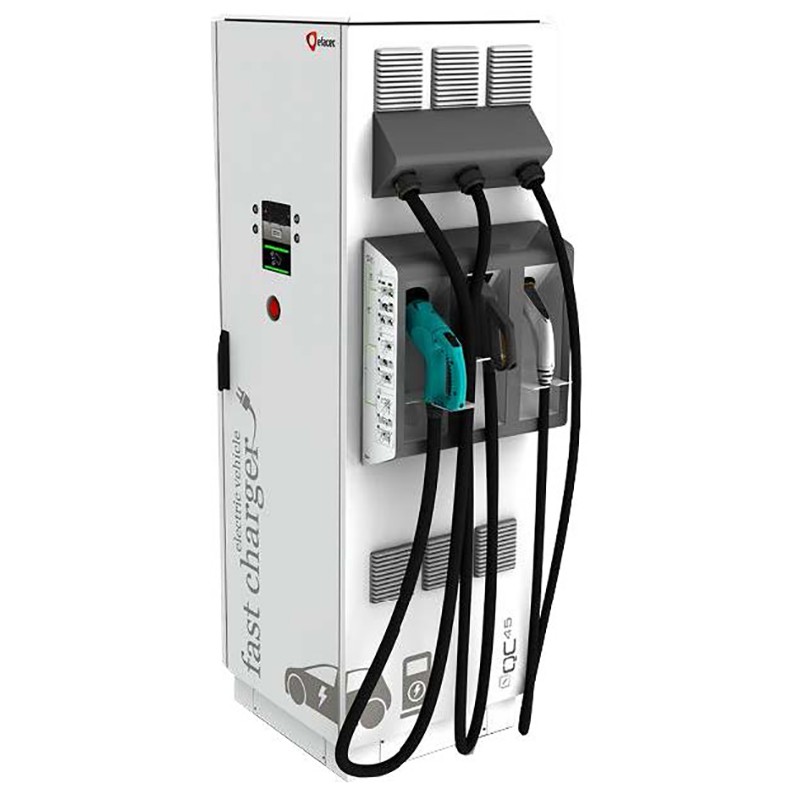

204.QC45-CC SCAME EST.RELOAD COMBO2 50kW View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

204.QC45-CC SCAME EST.RELOAD COMBO2 50kW

204.QC45-CC

SCAME

EST.RELOAD COMBO2 50kW

Combo2 45kW IP54 IK10

More details


Connector for electric vehicles - SCAME > LIBERA Series - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
LIBERA Series
Synthetical description
STATIONARY CHARGING STATION
Material
VARNISHED METAL
Protection degree IP
IP54
Working temperature
-25°C/+50°C
Protection degree IK
IK10
Colour
GREY
Saline solution
Resistant
UV protection
UV resistant
Mounting version
ON TURRET

EV standard
Combo2 45kW
EV specifications
Charging station for mode 4 electric vehicles with floor installation via galvanised steel base acting as a condensation separation chamber on which the 600 x 600 x 1800 mm cabinet is attached.<br>Structure in galvanised sheet steel painted with C4-class polyester powder to ensure maximum resistance to atmospheric conditions and supplied with anti-vandal screws.<br>Station with 73 A three-phase input equipped with a CCS type 2 connector (also called COMBO 2) suitable for charging in mode 4 in compliance with CEI EN 61851-1 and CEI EN 61851-23 standards, capable of delivering a maximum DC current of 120 A (45 kW).<br>Human-machine interface consisting of 6.4in TFT colour display for messages and managing diagnostics, 4 operating buttons, status LED and emergency stop button.<br>RFID reader for user recognition and management of the charge and operation in stand-alone mode with the possibility of network connection (LAN/Wi-Fi/3G).<br>Operating temperature -25°C to +50°C (with option for extension down to -35°C), IK10 impact resistance, casing with IP54 degree of protection, efficiency > 93%, 0.98 power factor. < br>Compliant with CEI EN 61851-1, CEI EN 61851-23, CEI EN 61851-24, CEI EN 62196-1, CEI EN 62196-3 standards and complete with CE marking.<br>(according to low-voltage directive 2006/95/EC and EMC directive 2004/108/EC).<br>All devices accessible to the user are positioned according to the highest safety standards and comply with the most advanced standards for the disabled according to American ADA standards and EU regulations.<br>

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
204.QC45-CC 204.QC45-CC EN_204.QC45-CC.pdf 46 Kbytes 204.QC45-CC 204.QC45-CC EN_204.QC45-CC.pdf
