> SCAME>Connector for electric vehicles - SCAME>LIBERA Series >204.CR41B-002 SCAME COLUMN CA 4 SOCKETS WITH LOCK
Previous Product Next Product

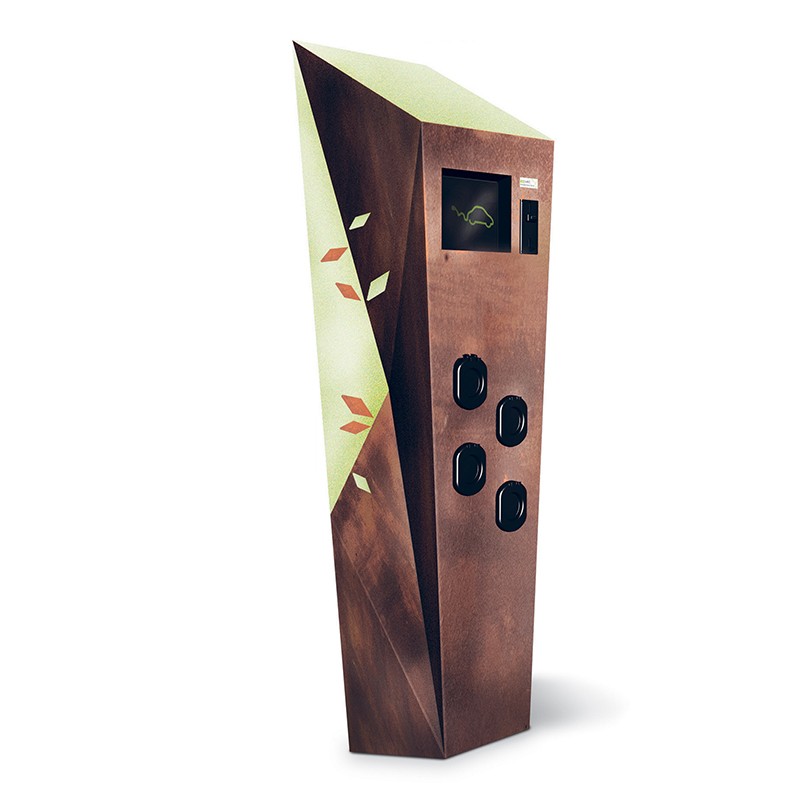

204.CR41B-002 SCAME COLUMN CA 4 SOCKETS WITH LOCK View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

204.CR41B-002 SCAME COLUMN CA 4 SOCKETS WITH LOCK

204.CR41B-002

SCAME

COLUMN CA 4 SOCKETS WITH LOCK

Type 2 1P+N+E 32A 230V~ 7,4kW 32A 400V 3P+N+E IP54 IK10

More details


Connector for electric vehicles - SCAME > LIBERA Series - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
CR Series
Synthetical description
PILLAR CR 4 SOCKETS WITH LOCK
Material
VARNISHED METAL
Rated current
32A
Rated voltage
400V
Working frequency
50/60Hz
Poles
3P+N+E
Protection degree IP
IP54
Working temperature
-25°C/+40°C
Protection degree IK
IK10
Saline solution
Resistant
UV protection
UV resistant
Mounting version
ON TURRET
Dimensions
450x1670x470mm

Version
BUSINESS
EV standard
Type 2 1P+N+E 32A 230V~ 7,4kW
EV specifications
Environmentally friendly charging station for electric vehicles with floor installation via trapezoidal COR-TEN steel base acting as a condensation separation chamber, equipped with studs on which to fix the column using M8 nuts.<br>COR-TEN steel structure with back panel customisable with customer logo or brand.<br>Column equipped with four sockets: two type 2 anti-vandal and two type 3A with protective shutters compliant with the CEI EN 62196-2 standard and suited for charging in mode 3 in compliance with the CEI EN 61851-1 standard (IPXXD degree of protection is guaranteed without further disconnecting devices).<br>Sockets equipped with plug locking system and interlocking of the cover to prevent tampering and unauthorised access.<br>Maximum deliverable current 32 A three-phase (22 kW) with identification of the connected cable size for the type 2 sockets and 16 A single-phase (3.5 kW) for the type 3A sockets.<br>Column complete with automatic and differential protection devices (type B for three-phase socket) and digital meter for the measurement of the energy delivered and the control of the absorbed current.<br>Column equipped with a coin box with service management depending on the coins deposited (timed charge).<br>Touchscreen for displaying messages and managing diagnostics, backup batteries to ensure continuity of the service in the event of power loss.<br>Set up for communication on RS485 serial line.<br>Operating temperature -25°C to +40°C, IK10 impact resistance, casing with IP54 degree of protection.<br>Compliant with CEI EN 61851-1, CEI EN 62196-2, CEI EN 61439-7, CEI EN 60304-7-722 standards and complete with CE marking.<br>

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
Download general catalog Download general catalog
