> SCAME>204.CB23B-T2T2EV SCAME COLUMNS CB 2 SOCKETS WITH LOCK T2 7kW
Previous Product Next Product

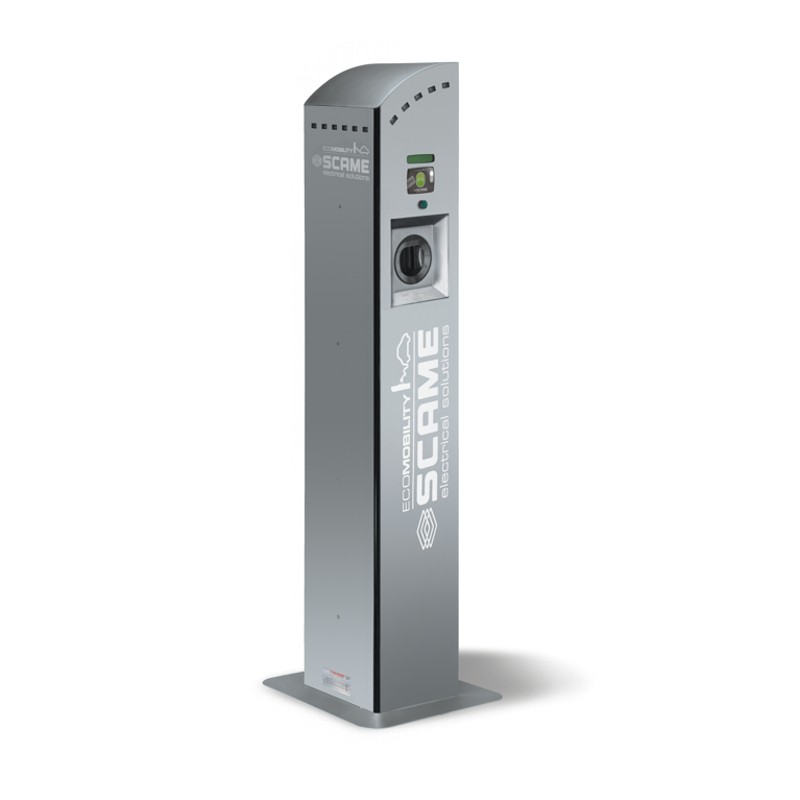

204.CB23B-T2T2EV SCAME COLUMNS CB 2 SOCKETS WITH LOCK T2 7kW View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

204.CB23B-T2T2EV SCAME COLUMNS CB 2 SOCKETS WITH LOCK T2 7kW

204.CB23B-T2T2EV

SCAME

COLUMNS CB 2 SOCKETS WITH LOCK T2 7kW

COLUMN CB 2 SOCKETS WITH LOCK Type 2 3P+N+T 32A 400V~ 22kW 63A 400V 3P+N+T-IP54 IK10 With RFID identification

Type 2 3P+N+E 32A 400V~ 22kW 63A 400V 3P+N+E IP54 IK10

More details


Home > SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
CB Series
Synthetical description
PILLAR CB 2 SOCKETS WITH LOCK
Material
AI (Stainless steel)
Rated current
63A
Rated voltage
400V
Working frequency
50/60Hz
Poles
3P+N+E
Protection degree IP
IP54
Working temperature
-25°C/+40°C
Protection degree IK
IK10
Colour
BRUSHED ALLUMINIUM
Saline solution
Resistant
UV protection
UV resistant
Mounting version
ON TURRET
Dimensions
315x1507x250mm

Version
PRO
EV standard
Type 2 3P+N+E 32A 400V~ 22kW
HMI (Human-Machine Interfaces)
LCD 2x20 char
User authentication
RFID authentication
EV functions
charge in mode 3 with pwm circuit pilot
energy metering and current consumption
identification of authorized user
protection against direct contact Safety Child Shutters
working in mode stand-alone free or personal
charge managing in case of power outage
identification of connected cord-set size
protection against overcurrents and electric shock
managing of lid locking and latching system
power contactor aperture monitoring
EV equipment
1 base with separation chamber
2 control cards
2 lcd display 2x20 rows backlight
2 readers RFID 13,56MHz
2 stop charge push-buttons (mode free)
1 lighting head in translucent and RGB led
1 terminal strip 5x35mm²
2 digital energy meters 3P+N 65A
1 main switch 4P 80A
1 couple of batteries 12Vdc 1,2Ah
2 couples of service led
2 industrial contactor 4P 32A 24Vdc
2 circuit breakers 3P+N C40 30mA ist. B
2 fuse holders 1P+N gG 4A
2 power supplies 24Vdc 36W

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
204.CB23B-T2T2EV 204.CB23B-T2T2EV EN_204.CB23B-T2T2EV.pdf 19 Kbytes 204.CB23B-T2T2EV 204.CB23B-T2T2EV EN_204.CB23B-T2T2EV.pdf
