> SCAME>Connector for electric vehicles - SCAME>LIBERA Series >204.CB21B-3C3A SCAME COLUMN CB 2 SOCKETS WITH LOCK
Previous Product Next Product

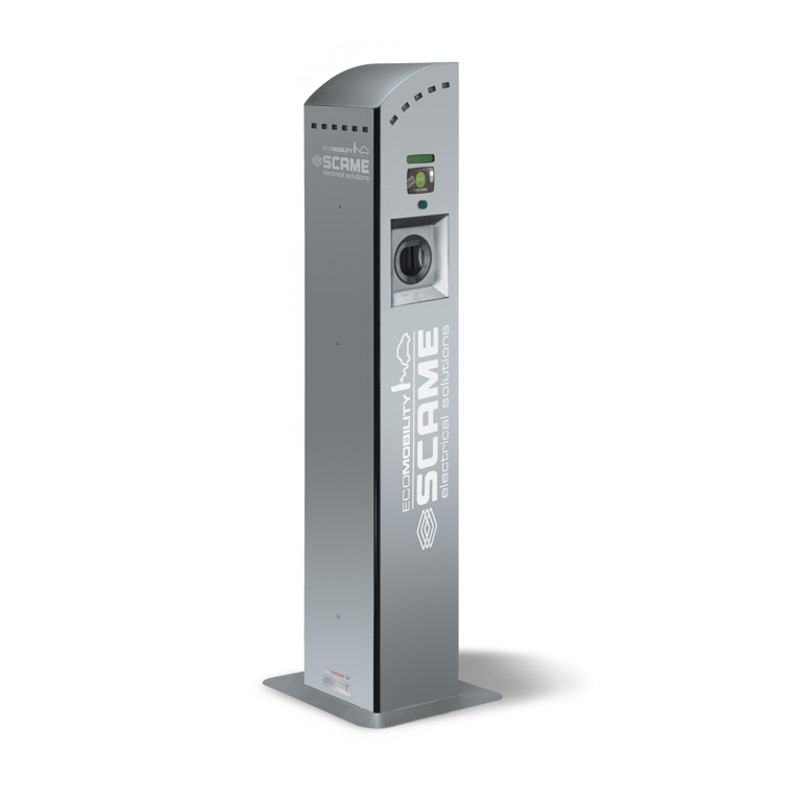

204.CB21B-3C3A SCAME COLUMN CB 2 SOCKETS WITH LOCK View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

204.CB21B-3C3A SCAME COLUMN CB 2 SOCKETS WITH LOCK

204.CB21B-3C3A

SCAME

COLUMN CB 2 SOCKETS WITH LOCK

Type 3A 1P+N+E 16A 230V~ 3,7kW Type 3C 1P+N+E 32A 230V~ 7,4kW 32A 400V 3P+N+E IP54 IK10

More details


Connector for electric vehicles - SCAME > LIBERA Series - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
CB Series
Synthetical description
PILLAR CB 2 SOCKETS WITH LOCK
Material
AI (Stainless steel)
Rated current
32A
Rated voltage
400V
Working frequency
50/60Hz
Poles
3P+N+E
Protection degree IP
IP54
Working temperature
-25°C/+40°C
Protection degree IK
IK10
Saline solution
Resistant
UV protection
UV resistant
Mounting version
ON TURRET
Dimensions
315x1507x250mm

Version
PRO
EV standard
Type 3A 1P+N+E 16A 230V~ 3,7kW
Type 3C 1P+N+E 32A 230V~ 7,4kW
EV specifications
Charging station for electric vehicles with floor installation via stainless steel base (500 X 410 mm) acting as a condensation separation chamber, equipped with studs on which to fix the column using M8 nuts (centre distance 250 X 170 mm).<br>Brushed stainless steel structure with RGB LED light head with three colours indicating the station's operating status.<br>Column equipped with a type 3C socket and a type 3A socket with protective shutters compliant with the CEI EN 62196-2 standard and suitable for charging in mode 3 in compliance with the CEI EN 61851-1 standard (IPXXD degree of protection is guaranteed without further disconnecting devices).<br>Sockets equipped with plug locking system and interlocking of the cover to prevent tampering and unauthorised access.<br>Maximum deliverable current 32 A single-phase (7 kW) with identification of the connected cable size for the type 3C socket and 16 A single-phase (3.5 kW) for the type 3A socket.<br>Column complete with automatic and differential protection devices and digital meter for the measurement of the energy delivered and the control of the absorbed current.<br>LCD display for messages and diagnostic management with the possibility of changing the language through a simple button, backup batteries to ensure continuity of service in the event of power loss.<br>RFID reader for user recognition and management of the charge. Operation in FREE or PERSONAL stand-alone mode.<br>STOP button to end the charge and allow plug extraction (FREE mode).<br>Set up for communication over RS485 serial line (NET mode with management via server).<br>Operating temperature -25°C to +40°C, IK10 impact resistance, casing with IP54 degree of protection.<br>Compliant with CEI EN 61851-1, CEI EN 62196-2, CEI EN 61439-7, CEI EN 60304-7-722 standards and complete with CE marking.<br>

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
204.CB21B-3C3A 204.CB21B-3C3A EN_204.CB21B-3C3A.pdf 19 Kbytes 204.CB21B-3C3A 204.CB21B-3C3A EN_204.CB21B-3C3A.pdf
