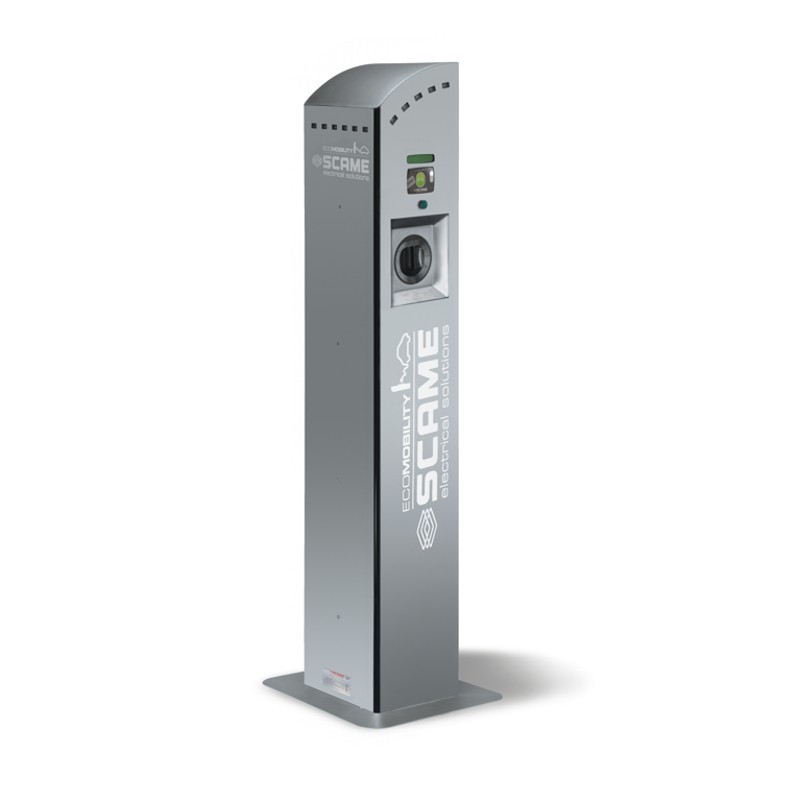

204.CB21B-3A3A SCAME COLUMNS CB 2 SOCKETS WITH LOCK 3A 3,5kW View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

204.CB21B-3A3A SCAME COLUMNS CB 2 SOCKETS WITH LOCK 3A 3,5kW

204.CB21B-3A3A

SCAME

COLUMNS CB 2 SOCKETS WITH LOCK 3A 3,5kW

CB COLUMN 2 SOCKETS WITH LOCK 3A 3.7kW

Type 3A 1P+N+E 16A 230V~ 3,7kW 16A 400V 3P+N+E IP54 IK10

More details


Industrial socket/plug applications > Charging device E-Mobility

Connector for electric vehicles - SCAME > LIBERA Series - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
CB Series
Synthetical description
PILLAR CB 2 SOCKETS WITH LOCK
Material
AI (Stainless steel)
Rated current
16A
Rated voltage
400V
Working frequency
50/60Hz
Poles
3P+N+E
Protection degree IP
IP54
Working temperature
-30°C/+50°C
Protection degree IK
IK10
Colour
BRUSHED ALLUMINIUM
Saline solution
Resistant
UV protection
UV resistant
Mounting version
ON TURRET
Dimensions
315x1507x250mm

Version
PRO
EV standard
Type 3A 1P+N+E 16A 230V~ 3,7kW
HMI (Human-Machine Interfaces)
LCD 2x20 char
User authentication
RFID authentication
Connectivity
None
EV functions
charge in mode 3 with pwm circuit pilot
predisposition for serial communication
energy metering and current consumption
identification of authorized user
protection against direct contact Safety Child Shutters
working in mode stand-alone free or personal
charge managing in case of power outage
protection against overcurrents and electric shock
managing of lid locking and latching system
EV equipment
1 base with separation chamber
1 power supply 24Vdc 36W
1 fuse holder 1P+N gG 4A
1 backup battery
2 DC Leakage detectors
2 control cards
2 lcd display 2x20 rows backlight
2 readers RFID 13,56MHz
2 stop charge push-buttons (mode free)
1 lighting head in translucent and RGB led
1 terminal strip 5x35mm²
1 main switch 4P 40A
2 circuit breakers 1P+N D20 30mA ist. A
2 modular contactors 2P 20A 24Vdc
2 digital energy meters 1P+N 40A
EV specifications
Charging station for electric vehicles with floor installation via stainless steel base (500 X 410 mm) acting as a condensation separation chamber, equipped with studs on which to fix the column using M8 nuts (centre distance 250 X 170 mm).<br>Brushed stainless steel structure with RGB LED light head with three colours indicating the station's operating status.<br>Column equipped with two type 3A sockets with protective shutters compliant with the CEI EN 62196-2 standard and suitable for charging in mode 3 in compliance with the CEI EN 61851-1 standard (IPXXD degree of protection is guaranteed without further disconnecting devices).<br>Socket equipped with plug locking system to prevent accidental removal and interlocking of the cover to prevent tampering and unauthorised access.<br>Maximum deliverable current 16 A single-phase (3.5 kW) for each socket.<br>Column complete with automatic and differential protection devices and digital meter for the measurement of the energy delivered and the control of the absorbed current.<br>LCD display for messages and diagnostic management with the possibility of changing the language through a simple button, backup batteries to ensure continuity of service in the event of power loss.<br>RFID reader for user recognition and management of the charge. Operation in FREE or PERSONAL stand-alone mode.<br>STOP button to end the charge and allow plug extraction (FREE mode).<br>Set up for communication over RS485 serial line (NET mode with management via server).<br>Operating temperature -25°C to +40°C, IK10 impact resistance, casing with IP54 degree of protection.<br>Compliant with CEI EN 61851-1, CEI EN 62196-2, CEI EN 61439-7, CEI EN 60304-7-722 standards and complete with CE marking.<br>
