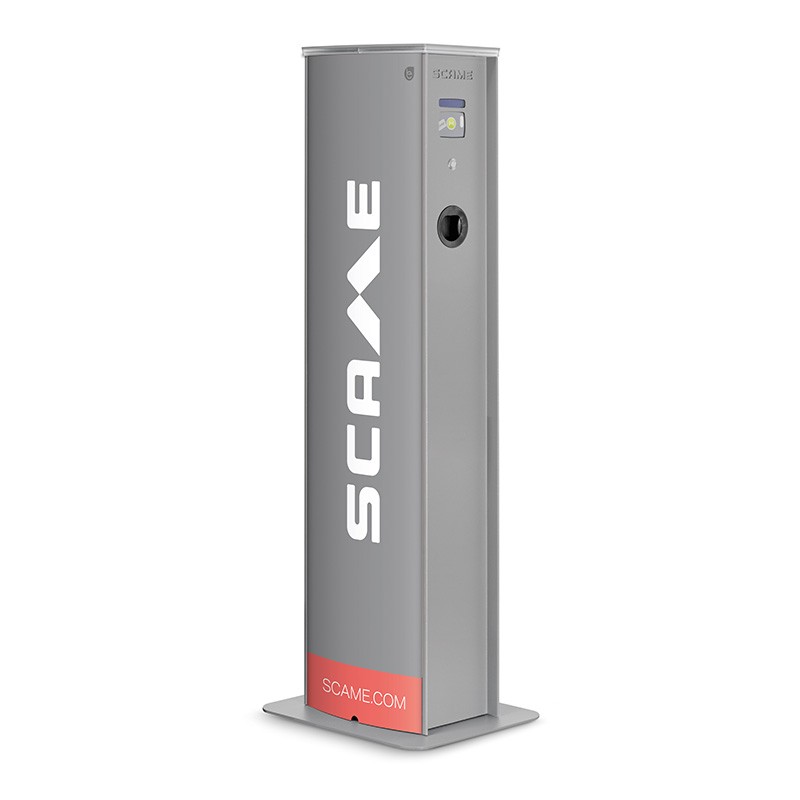

SCAME 204.CA41E-003 204.CA41E-003 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

204.CA41E-003 SCAME PILLAR CA 4 SOCKETS WITH LOCK

Reference: 204.CA41E-003

Manufacturer: SCAME

Description:

PILLAR CA 4 SOCKETS WITH LOCK
COLUMN CA 4 SOCKETS WITH LOCK Type 2 1P+N+T 32A 230V~ 7,4 kW 63A 400V 3P+N+T-IP54 IK10 With RFID identification
Type 2 1P+N+E 32A 230V~ 7,4kW 63A 400V 3P+N+E IP54 IK10

Categories:

  • SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Commercial Series
CA Series
Synthetical description
PILLAR CA 4 SOCKETS WITH LOCK
Material
VARNISHED METAL
Rated current
63A
Rated voltage
400V
Working frequency
50/60Hz
Poles
3P+N+E
Protection degree IP
IP54
Working temperature
-30°C/+50°C
Protection degree IK
IK10
Colour
GREY
Saline solution
Resistant
UV protection
UV resistant
Mounting version
ON TURRET
Dimensions
385x1510x263mm

Version
SOLO
EV standard
Type 2 1P+N+E 32A 230V~ 7,4kW
HMI (Human-Machine Interfaces)
LCD 2x20 char
User authentication
RFID authentication
EV functions
charge in mode 3 with pwm circuit pilot
identification of authorized user
protection against direct contact Safety Child Shutters
charge managing in case of power outage
identification of connected cord-set size
managing of lid locking and latching system
working in mode stand-alone free
current consuption metering
EV equipment
1 base with separation chamber
1 lighting head in translucent and RGB led
1 couple of front panels in polycarbonate
4 modular contactors 2P 40A 24Vdc
1 terminal strip 12x35mm²
4 current transformers
4 lcd display 2x20 rows backlight
4 stop charge push-buttons (mode free)
4 DC Leakage detectors
4 fuse holderS 1P+N gG 4A
2 backup batteries
4 control cards
4 power supplies 24Vdc 36W
EV excluded
upstream protections (by the installer):
4 circuit breakers 1P+N C40 30mA ist. A
