> SCAME>204.CA26D-T2T2 SCAME PILLAR CA 2 SOCKETS WITH LOCK
Previous Product Next Product

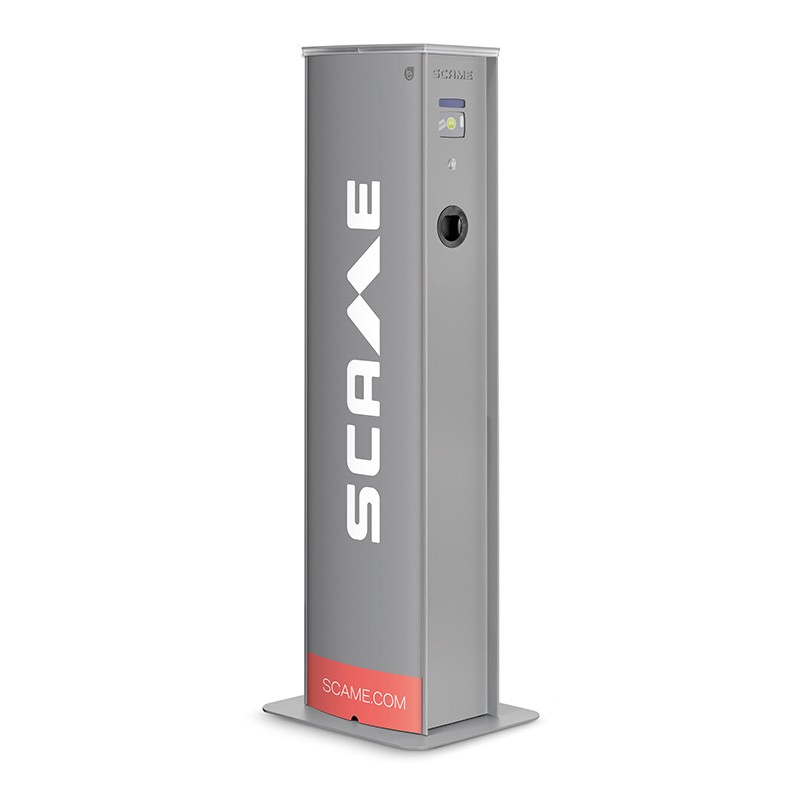

204.CA26D-T2T2 SCAME PILLAR CA 2 SOCKETS WITH LOCK View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

204.CA26D-T2T2 SCAME PILLAR CA 2 SOCKETS WITH LOCK

204.CA26D-T2T2

SCAME

PILLAR CA 2 SOCKETS WITH LOCK

COLUMN CA 2 SOCKETS WITH LOCK

Type 2 3P+N+E 32A 400V~ 22kW 32A 400V 3P+N+E IP54 IK10

More details


Industrial socket/plug applications > Charging device E-Mobility

Home > SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
CA Series
Synthetical description
PILLAR CA 2 SOCKETS WITH LOCK
Material
VARNISHED METAL
Rated current
32A
Rated voltage
400V
Working frequency
50/60Hz
Poles
3P+N+E
Protection degree IP
IP54
Working temperature
-30°C/+50°C
Protection degree IK
IK10
Colour
GREY
Saline solution
Resistant
UV protection
UV resistant
Mounting version
ON TURRET
Dimensions
385x1510x263mm

Version
BUSINESS
EV standard
Type 2 3P+N+E 32A 400V~ 22kW
HMI (Human-Machine Interfaces)
LCD 2x20 char
User authentication
RFID authentication
Connectivity
None
EV functions
charge in mode 3 with pwm circuit pilot
predisposition for serial communication
energy metering and current consumption
identification of authorized user
working in mode stand-alone free or personal
protection against direct contact Safety Child Shutters
charge managing in case of power outage
identification of connected cord-set size
managing of lid locking and latching system
EV equipment
1 base with separation chamber
2 DC Leakage detectors
2 control cards
2 stop charge push-buttons (mode free)
2 lcd display 2x20 rows backlight
2 readers RFID 13,56MHz
1 lighting head in translucent and RGB led
1 couple of front panels in polycarbonate
2 power supplies 24Vdc 36W
1 terminal strip 10x35mm²
2 backup batteries
2 fuse holders 1P+N gG 4A
2 digital energy meters 3P+N 80A
2 modular contactors 4P 25A 24Vdc
EV excluded
upstream protections (by the installer):
2 circuit breakers 3P+N C20 30mA ist. A

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
204.CA26D-T2T2 204.CA26D-T2T2 EN_204.CA26D-T2T2.pdf 34 Kbytes 204.CA26D-T2T2 204.CA26D-T2T2 EN_204.CA26D-T2T2.pdf
