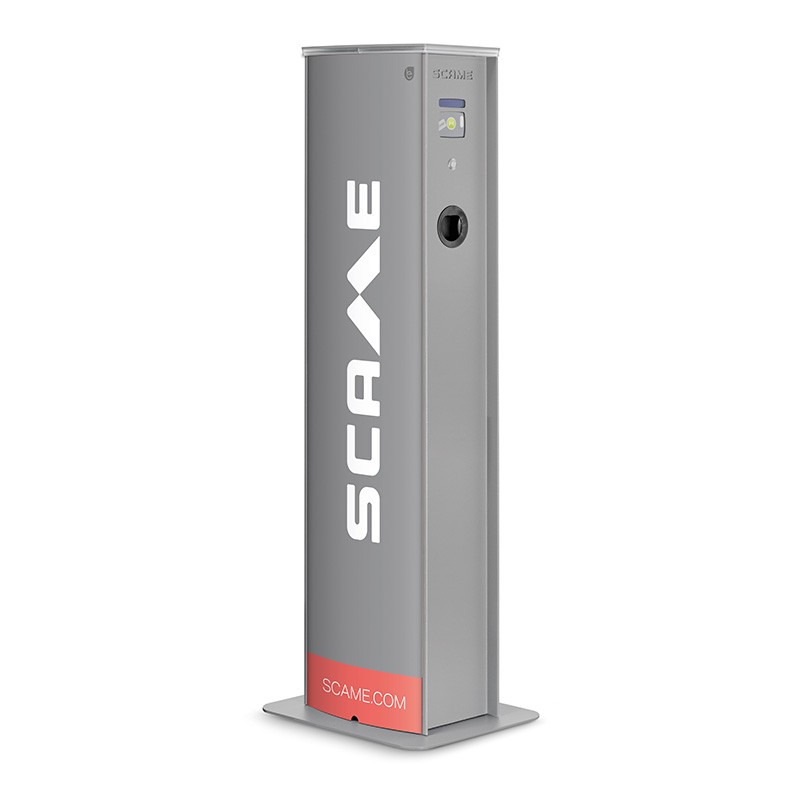

204.CA23D-T2T2M SCAME COLUMN CA 2 SOCKETS WITH LOCK View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

204.CA23D-T2T2M SCAME COLUMN CA 2 SOCKETS WITH LOCK

204.CA23D-T2T2M

SCAME

COLUMN CA 2 SOCKETS WITH LOCK

Type 2 3P+N+E 32A 400V~ 22kW 63A 400V 3P+N+E IP54 IK10

More details


Home > SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

Total: $4,575.39
Unit price: $4,575.39
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
CA Series
Synthetical description
PILLAR CA 2 SOCKETS WITH LOCK
Material
VARNISHED METAL
Rated current
63A
Rated voltage
400V
Working frequency
50/60Hz
Poles
3P+N+E
Protection degree IP
IP54
Working temperature
-30°C/+50°C
Protection degree IK
IK10
Colour
GREY
Saline solution
Resistant
UV protection
UV resistant
Mounting version
ON TURRET
Dimensions
385x1510x263mm

Version
BUSINESS
EV standard
Type 2 3P+N+E 32A 400V~ 22kW
HMI (Human-Machine Interfaces)
LCD 2x20 char
User authentication
RFID authentication
Connectivity
None
EV functions
charge in mode 3 with pwm circuit pilot
predisposition for serial communication
energy metering and current consumption
identification of authorized user
working in mode stand-alone free or personal
protection against direct contact Safety Child Shutters
charge managing in case of power outage
identification of connected cord-set size
managing of lid locking and latching system
EV equipment
1 base with separation chamber
2 DC Leakage detectors
2 control cards
2 stop charge push-buttons (mode free)
2 lcd display 2x20 rows backlight
2 readers RFID 13,56MHz
1 lighting head in translucent and RGB led
1 couple of front panels in polycarbonate
2 modular contactors 4P 40A 24Vdc
1 terminal strip 10x35mm²
2 backup batteries
2 fuse holders 1P+N gG 4A
2 digital energy meters MID 3P+N 80A
2 power supplies 24Vdc 36W
EV excluded
upstream protections (by the installer):
2 circuit breakers 3P+N C40 30mA ist. A
