> SCAME>204.CA22C-T2T2 SCAME PILLAR CA 2 SOCKETS WITH LOCK
Previous Product Next Product

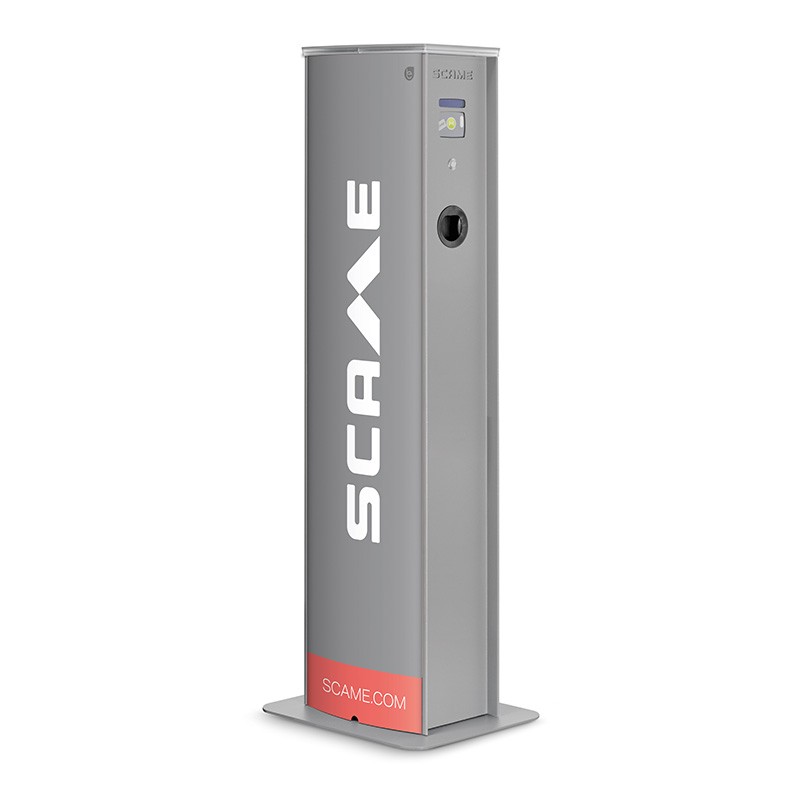

204.CA22C-T2T2 SCAME PILLAR CA 2 SOCKETS WITH LOCK View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

204.CA22C-T2T2 SCAME PILLAR CA 2 SOCKETS WITH LOCK

204.CA22C-T2T2

SCAME

PILLAR CA 2 SOCKETS WITH LOCK

COLUMN CA 2 SOCKETS WITH LOCK

Type 2 3P+N+E 32A 400V~ 22kW 63A 400V 3P+N+E IP54 IK10

More details


Industrial socket/plug applications > Charging device E-Mobility

Home > SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
CA Series
Synthetical description
PILLAR CA 2 SOCKETS WITH LOCK
Material
VARNISHED METAL
Rated current
63A
Rated voltage
400V
Working frequency
50/60Hz
Poles
3P+N+E
Protection degree IP
IP54
Working temperature
-30°C/+50°C
Protection degree IK
IK10
Colour
GREY
Saline solution
Resistant
UV protection
UV resistant
Mounting version
ON TURRET
Dimensions
385x1510x263mm

Version
BUSINESS
EV standard
Type 2 3P+N+E 32A 400V~ 22kW
HMI (Human-Machine Interfaces)
LCD 2x20 char
User authentication
RFID authentication
Connectivity
None
EV functions
charge in mode 3 with pwm circuit pilot
predisposition for serial communication
identification of authorized user
working in mode stand-alone free or personal
protection against direct contact Safety Child Shutters
identification of connected cord-set size
charge managing in case of power outage
protection against overcurrents and electric shock
managing of lid locking and latching system
current consuption metering
EV equipment
1 base with separation chamber
1 power supply 24Vdc 36W
1 fuse holder 1P+N gG 4A
1 backup battery
1 modular contactor 2P 40A 24Vdc
1 modular contactor 4P 40A 24Vdc
2 DC Leakage detectors
2 control cards
2 stop charge push-buttons (mode free)
1 circuit breaker 1P+N C40 30mA ist. A
2 lcd display 2x20 rows backlight
2 readers RFID 13,56MHz
1 lighting head in translucent and RGB led
1 terminal strip 5x35mm²
1 couple of front panels in polycarbonate
1 main switch 4P 80A
1 circuit breaker 3P+N C40 30mA ist. A
2 current transformers

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
204.CA22C-T2T2 204.CA22C-T2T2 EN_204.CA22C-T2T2.pdf 34 Kbytes 204.CA22C-T2T2 204.CA22C-T2T2 EN_204.CA22C-T2T2.pdf
