> SCAME>204.CA22B-T2T2F SCAME PILLAR CA 2 SOCKETS WITH LOCK
Previous Product Next Product

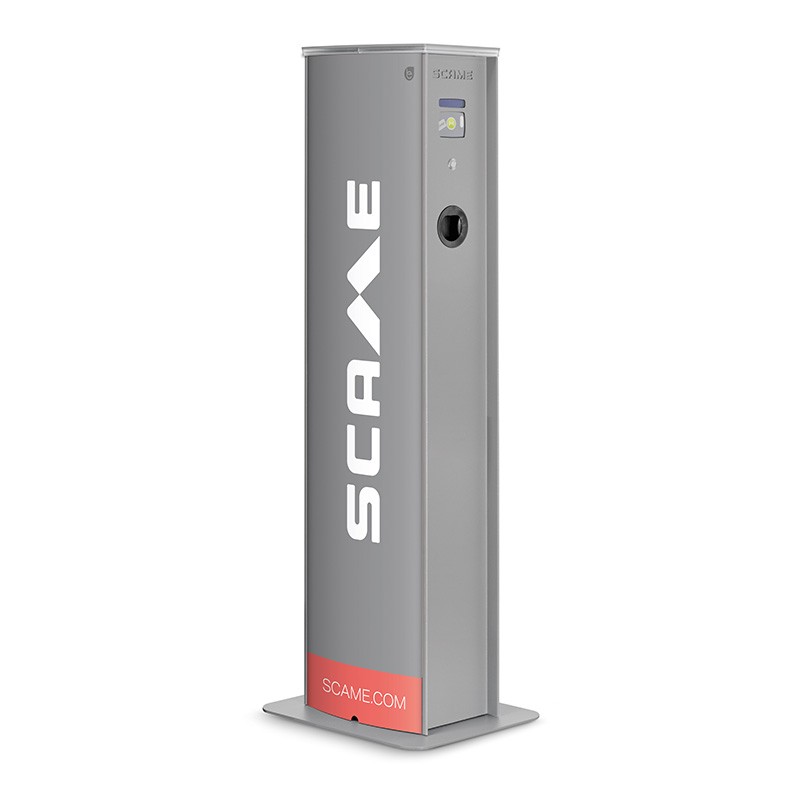

204.CA22B-T2T2F SCAME PILLAR CA 2 SOCKETS WITH LOCK View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

204.CA22B-T2T2F SCAME PILLAR CA 2 SOCKETS WITH LOCK

204.CA22B-T2T2F

SCAME

PILLAR CA 2 SOCKETS WITH LOCK

Type 2 3P+N+E 32A 400V~ 22kW 63A 400V 3P+N+E IP54 IK10 OCPP 1.6 JSON

More details


Home > SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
CA Series
Synthetical description
PILLAR CA 2 SOCKETS WITH LOCK
Material
VARNISHED METAL
Rated current
63A
Rated voltage
400V
Working frequency
50/60Hz
Poles
3P+N+E
Protection degree IP
IP54
Working temperature
-30°C/+50°C
Protection degree IK
IK10
Colour
GREY
Saline solution
Resistant
UV protection
UV resistant
Mounting version
ON TURRET
Dimensions
385x1510x263mm

Version
PRO
EV standard
Type 2 3P+N+E 32A 400V~ 22kW
HMI (Human-Machine Interfaces)
LCD 2x20 char
User authentication
RFID authentication
Connectivity
Ethernet
None
Communication protocol
OCPP 1.6 JSON
EV functions
charge in mode 3 with pwm circuit pilot
predisposition for serial communication
energy metering and current consumption
identification of authorized user
working in mode stand-alone free or personal
protection against direct contact Safety Child Shutters
identification of connected cord-set size
charge managing in case of power outage
protection against overcurrents and electric shock
interfacing with OCPP Central Station
managing of lid locking and latching system
wireless connection to web
EV equipment
1 base with separation chamber
1 fuse holder 1P+N gG 4A
1 backup battery
1 modular contactor 2P 40A 24Vdc
1 modular contactor 4P 40A 24Vdc
2 DC Leakage detectors
2 control cards
2 stop charge push-buttons (mode free)
1 circuit breaker 1P+N C40 30mA ist. A
1 digital energy meter 1P+N 40A
2 lcd display 2x20 rows backlight
2 readers RFID 13,56MHz
1 lighting head in translucent and RGB led
1 terminal strip 5x35mm²
1 router Wi-Fi/4G
1 digital energy meter MID 3P+N 80A
1 couple of front panels in polycarbonate
1 main switch 4P 80A
1 circuit breaker 3P+N C40 30mA ist. A
2 couples of service led
1 local server Wi-Fi with OCPP 1.6J protocol
1 power supply 24Vdc 60W

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
Download general catalog Download general catalog
