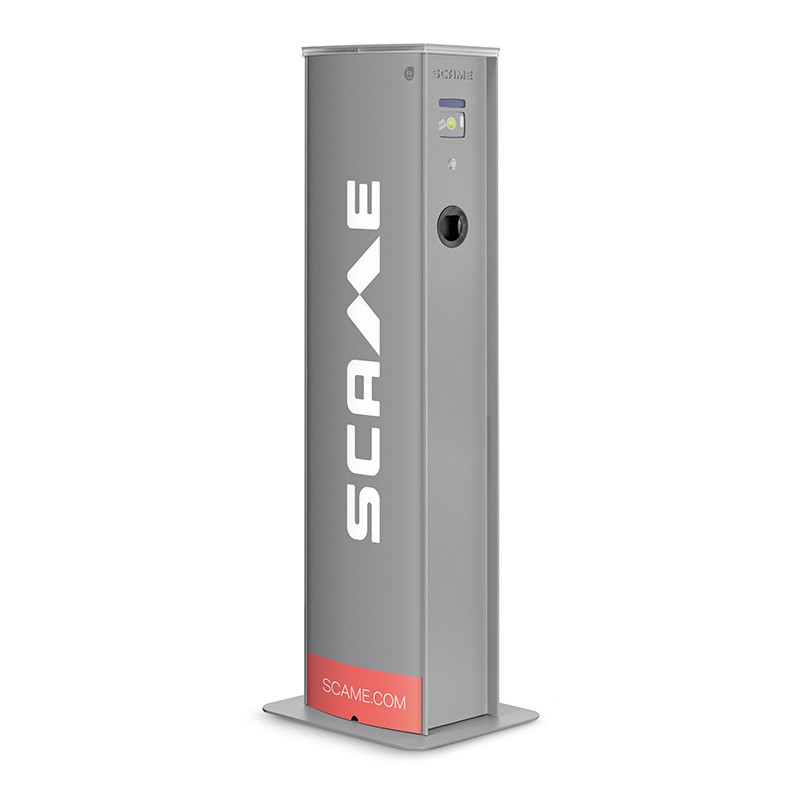

204.CA22B-T23AMA SCAME PILLAR CA 2 SOCKETS WITH LOCK View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

204.CA22B-T23AMA SCAME PILLAR CA 2 SOCKETS WITH LOCK

204.CA22B-T23AMA

SCAME

PILLAR CA 2 SOCKETS WITH LOCK

COLUMN CA 2 SOCKETS WITH LOCK

Type 2 1P+N+E 16A 230V~ 3,7kW Type 2 3P+N+E 32A 400V~ 22kW 50A 400V 3P+N+E IP54 IK10 OCPP 1.6 JSON

More details


Industrial socket/plug applications > Charging device E-Mobility

Home > SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

Total: $5,992.99
Unit price: $5,992.99
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
CA Series
Synthetical description
PILLAR CA 2 SOCKETS WITH LOCK
Material
VARNISHED METAL
Rated current
50A
Rated voltage
400V
Working frequency
50/60Hz
Poles
3P+N+E
Protection degree IP
IP54
Working temperature
-30°C/+55°C with derating
Protection degree IK
IK10
Colour
GREY
Saline solution
Resistant
UV protection
UV resistant
Mounting version
ON TURRET
Dimensions
385x1510x263mm

Version
PRO
EV standard
Type 2 1P+N+E 16A 230V~ 3,7kW
Type 2 3P+N+E 32A 400V~ 22kW
HMI (Human-Machine Interfaces)
LCD 2x20 char
User authentication
RFID authentication
Connectivity
Ethernet
Communication protocol
OCPP 1.6 JSON
EV functions
charge in mode 3 with pwm circuit pilot
predisposition for serial communication
energy metering and current consumption
identification of authorized user
working in mode stand-alone free or personal
protection against direct contact Safety Child Shutters
identification of connected cord-set size
charge managing in case of power outage
protection against overcurrents and electric shock
interfacing with OCPP Central Station
managing of lid locking and latching system
load Balancing function
EV equipment
1 base with separation chamber
1 power supply 24Vdc 36W
1 fuse holder 1P+N gG 4A
1 backup battery
1 local server wired with OCPP 1.6J protocol
1 modular contactor 4P 40A 24Vdc
2 DC Leakage detectors
2 control cards
2 stop charge push-buttons (mode free)
2 lcd display 2x20 rows backlight
2 readers RFID 13,56MHz
1 lighting head in translucent and RGB led
1 terminal strip 5x35mm²
1 digital energy meter MID 3P+N 80A
1 couple of front panels in polycarbonate
1 digital energy meter MID 1P+N 40A
1 main switch 4P 80A
1 circuit breaker 1P+N D20 30mA ist. A
1 circuit breaker 3P+N C40 30mA ist. A
1 modular contactor 2P 20A 24Vdc

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
204.CA22B-T23AMA 204.CA22B-T23AMA EN_204.CA22B-T23AMA.pdf 34 Kbytes 204.CA22B-T23AMA 204.CA22B-T23AMA EN_204.CA22B-T23AMA.pdf
