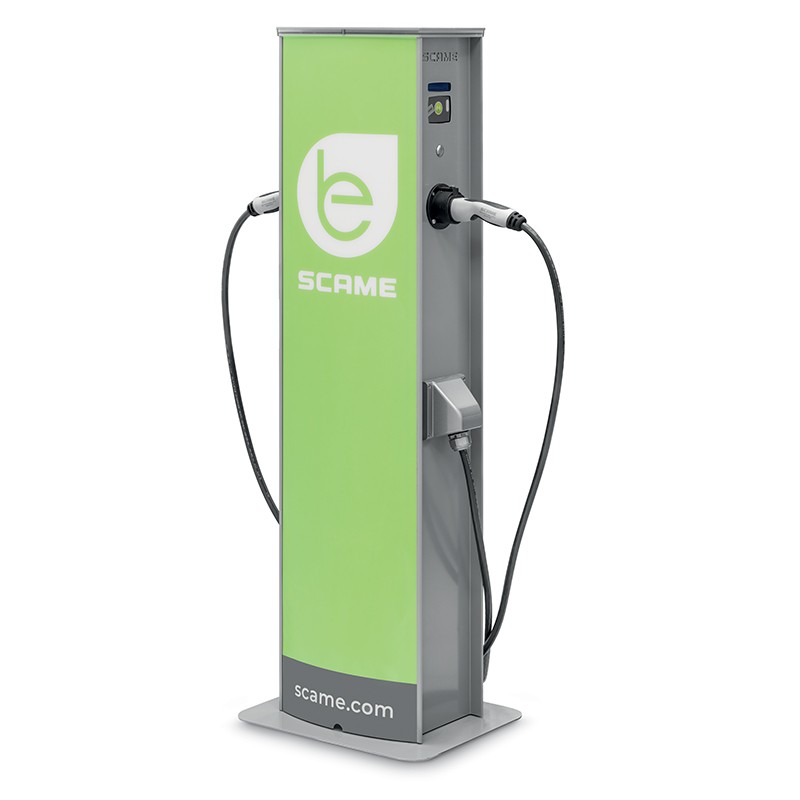

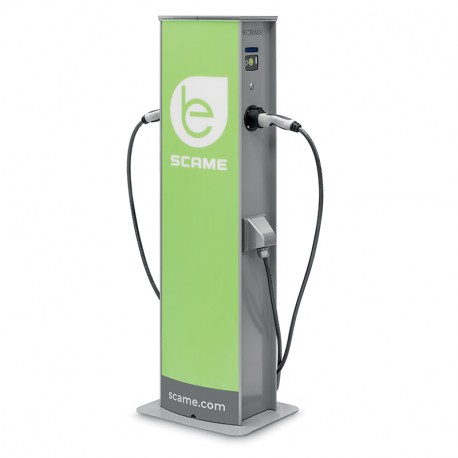

204.CA21R-T23T23 SCAME PILLAR CA 2 SOCKETS+CABLE WITH LOCK View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

204.CA21R-T23T23 SCAME PILLAR CA 2 SOCKETS+CABLE WITH LOCK

204.CA21R-T23T23

SCAME

PILLAR CA 2 SOCKETS+CABLE WITH LOCK

COLUMN CA 2 SOCKETS WITH LOCK

Type 2 1P+N+E 32A 230V~ 7,4kW 32A 400V 3P+N+E IP54 IK10 Type 2 3m

More details


Industrial socket/plug applications > Charging device E-Mobility

Home > SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
CA Series
Synthetical description
PILLAR CA 2 CONNECT. T2 RFID
Material
VARNISHED METAL
Cable length
3m
Cable section
3G6+1x0,5mm²
Rated current
32A
Rated voltage
400V
Working frequency
50/60Hz
Poles
3P+N+E
Protection degree IP
IP54
Working temperature
-30°C/+50°C
Protection degree IK
IK10
Colour
GREY
Saline solution
Resistant
UV protection
UV resistant
Mounting version
ON TURRET
Dimensions
385x1510x263mm

Version
BUSINESS
EV standard
Type 2 1P+N+E 32A 230V~ 7,4kW
With integrated cable
Type 2
HMI (Human-Machine Interfaces)
LCD 2x20 char
User authentication
RFID authentication
Connectivity
None
EV functions
charge in mode 3 with pwm circuit pilot
predisposition for serial communication
energy metering and current consumption
identification of authorized user
working in mode stand-alone free or personal
charge managing in case of power outage
protection against overcurrents and electric shock
power contactor aperture monitoring
EV equipment
1 base with separation chamber
1 power supply 24Vdc 36W
1 fuse holder 1P+N gG 4A
1 backup battery
2 DC Leakage detectors
2 control cards
2 stop charge push-buttons (mode free)
2 lcd display 2x20 rows backlight
2 readers RFID 13,56MHz
1 lighting head in translucent and RGB led
1 terminal strip 5x35mm²
1 couple of front panels in polycarbonate
1 main switch 4P 40A
2 circuit breakers 1P+N C40 30mA ist. A
2 shunt trip releases 24Vdc
2 digital energy meters 1P+N 40A
2 inlets dummy for connector storage
2 cables 3G6+1x0,5mm² 3m
2 modular contactors 2P 40A 24Vdc

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
204.CA21R-T23T23 204.CA21R-T23T23 EN_204.CA21R-T23T23.pdf 40 Kbytes 204.CA21R-T23T23 204.CA21R-T23T23 EN_204.CA21R-T23T23.pdf
