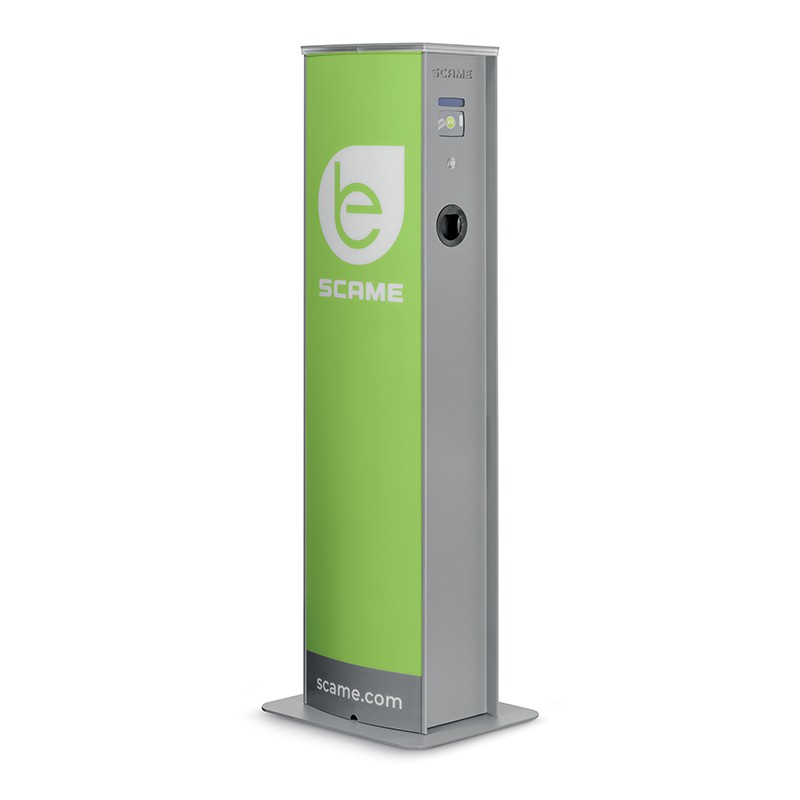

204.CA21B-T2UN SCAME COLUMNS CA 2 SOCKETS WITH LOCK View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

204.CA21B-T2UN SCAME COLUMNS CA 2 SOCKETS WITH LOCK

204.CA21B-T2UN

SCAME

COLUMNS CA 2 SOCKETS WITH LOCK

Type 2 1P+N+E 32A 230V~ 7,4kW DE 2P+E 16A 230V~ 3,7kW 32A 400V 3P+N+E IP54 IK10

More details


Industrial socket/plug applications > Charging device E-Mobility

Connector for electric vehicles - SCAME > LIBERA Series - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

Total: $4,633.97
Unit price: $4,633.97
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Material series
CA Series
Synthetical description
PILLAR CA 2 SOCKETS WITH LOCK
Material
VARNISHED METAL
Rated current
32A
Rated voltage
400V
Working frequency
50/60Hz
Poles
3P+N+E
Protection degree IP
IP54
Working temperature
-30°C/+50°C
Protection degree IK
IK10
Colour
GREY
Saline solution
Resistant
UV protection
UV resistant
Mounting version
ON TURRET
Dimensions
385x1510x263mm

Version
BUSINESS
EV standard
Type 2 1P+N+E 32A 230V~ 7,4kW
DE 2P+E 16A 230V~ 3,7kW
HMI (Human-Machine Interfaces)
LCD 2x20 char
User authentication
RFID authentication
EV functions
charge in mode 3 with pwm circuit pilot
predisposition for serial communication
energy metering and current consumption
identification of authorized user
working in mode stand-alone free or personal
protection against direct contact Safety Child Shutters
identification of connected cord-set size
charge managing in case of power outage
protection against overcurrents and electric shock
managing of lid locking and latching system
EV equipment
1 base with separation chamber
1 fuse holder 1P+N gG 4A
1 DC Leakage detector
1 backup battery
1 modular contactor 2P 40A 24Vdc
2 control cards
2 stop charge push-buttons (mode free)
1 circuit breaker 1P+N C40 30mA ist. A
2 lcd display 2x20 rows backlight
2 readers RFID 13,56MHz
1 lighting head in translucent and RGB led
1 terminal strip 5x35mm²
1 couple of front panels in polycarbonate
1 main switch 4P 40A
1 circuit breaker 1P+N D20 30mA ist. A
1 modular contactor 2P 25A 24Vdc
2 digital energy meters 1P+N 40A
1 power supply 24Vdc 60W
2 couples of service led
EV specifications
Pillar in painted galvanized steel prepared for floor installation with basement with function of anti-condensation separation room.<br> RGB LED light head with three colours indicating the station's operating status.<br> Front panels in polycarbonate with the possibility of customization with the customer's logo or brand.<br> Equipped with:<br> 1 socket Type 2 in compliance with IEC/EN 62196-2 for mode 3 charging in compliance with IEC/EN 61851-1, equipped with shutter protection (IPXXD degree of protection without any additional devides), plug latching system to avoid unintetional withdraw under load, vandal-proof lockable lid, maximum supply current 32A single-phase 230Vac (7,4kW).<br> 1 German socket type (domestic), equipped with shutter protection (IPXXD degree of protection without any additional devides), lockable lid even with plug inserted to avoid unintentional withdraw, maximum supply current 16A single-phase 230Vac (3,7kW), the use of this socket is allowed only in areas where is not compulsory the mode 3.<br> Complete with:<br> Automatic and residual current device for protection against over currents and indirect contact.<br> Digital meter for the measurement of the energy delivered and the control of current cosumption.<br> «DC Leakage» devices for detection of contiunuos earth leakage current (>=6 mA).<br> Backup batteries to ensure continuity of service in the case of power outage.<br> «Save Unlock» system to ensure the possibility of extracting the connector in the event of a blackout.<br> RFID reader for user identification and management of the charge, working in FREE or PERSONAL stand-alone mode.<br> LCD backlit display 2x20 character, for messages and diagnostic management with the possibility to change the language through the button.<br> Push button for display language changing and STOP to end the charge and allow plug extraction in FREE mode.<br> Set up for communication over RS485 serial line (NET mode with management via server).<br> Operating temperature -30°C to +50°C.<br> Impact resistance IK10.<br> Enclosure with IP54 degree of protection.<br> Compliant with IEC/EN 61851-1, IEC 61439-7 standards and complete with CE marking.<br>
