> SCAME>204.CA21B-T2T2EV SCAME COLUMNS CA 2 SOCKETS WITH LOCK T2 7kW
Previous Product Next Product

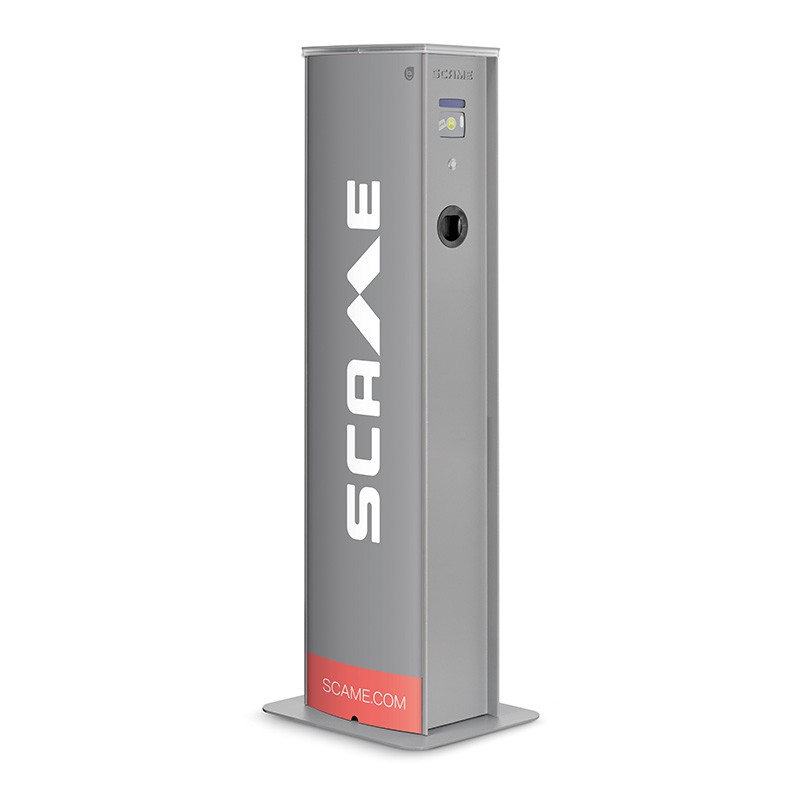

204.CA21B-T2T2EV SCAME COLUMNS CA 2 SOCKETS WITH LOCK T2 7kW View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

204.CA21B-T2T2EV SCAME COLUMNS CA 2 SOCKETS WITH LOCK T2 7kW

204.CA21B-T2T2EV

SCAME

COLUMNS CA 2 SOCKETS WITH LOCK T2 7kW

COLUMN CA 2 SOCKETS WITH LOCK Type 2 1P+N+T 32A 230V~ to 7.4 kW 32A 400V 3P+N+T-IP54 IK10 With RFID identification

Type 2 1P+N+E 32A 230V~ 7,4kW 32A 400V 3P+N+E IP54 IK10

More details


Home > SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
CA Series
Synthetical description
PILLAR CA 2 SOCKETS WITH LOCK
Material
VARNISHED METAL
Rated current
32A
Rated voltage
400V
Working frequency
50/60Hz
Poles
3P+N+E
Protection degree IP
IP54
Working temperature
-25°C/+40°C
Protection degree IK
IK10
Colour
GREY
Saline solution
Resistant
UV protection
UV resistant
Mounting version
ON TURRET
Dimensions
385x1510x263mm

Version
PRO
EV standard
Type 2 1P+N+E 32A 230V~ 7,4kW
HMI (Human-Machine Interfaces)
LCD 2x20 char
User authentication
RFID authentication
EV functions
charge in mode 3 with pwm circuit pilot
energy metering and current consumption
identification of authorized user
working in mode stand-alone free or personal
protection against direct contact Safety Child Shutters
charge managing in case of power outage
identification of connected cord-set size
protection against overcurrents and electric shock
power contactor aperture monitoring
managing of lid locking and latching system
EV equipment
1 base with separation chamber
2 control cards
2 stop charge push-buttons (mode free)
2 lcd display 2x20 rows backlight
2 readers RFID 13,56MHz
1 lighting head in translucent and RGB led
1 terminal strip 5x35mm²
1 couple of front panels in polycarbonate
1 main switch 4P 40A
2 circuit breakers 1P+N C40 30mA ist. A
2 power supplies 24Vdc 36W
2 shunt trip releases 24Vdc
2 digital energy meters 1P+N 45A
2 industrial contactors 2P 32A 24Vdc
In accordance with IEC 61851-1 ed.2
2 fuse holders 1P+N gG 4A
1 couple of batteries 12Vdc 1,2Ah
2 couples of service led

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
204.CA21B-T2T2EV 204.CA21B-T2T2EV EN_204.CA21B-T2T2EV.pdf 34 Kbytes 204.CA21B-T2T2EV 204.CA21B-T2T2EV EN_204.CA21B-T2T2EV.pdf
