SCAME204.CA13P-T2 SCAME PILLAR CA 1 SOCKET WITH LOCK

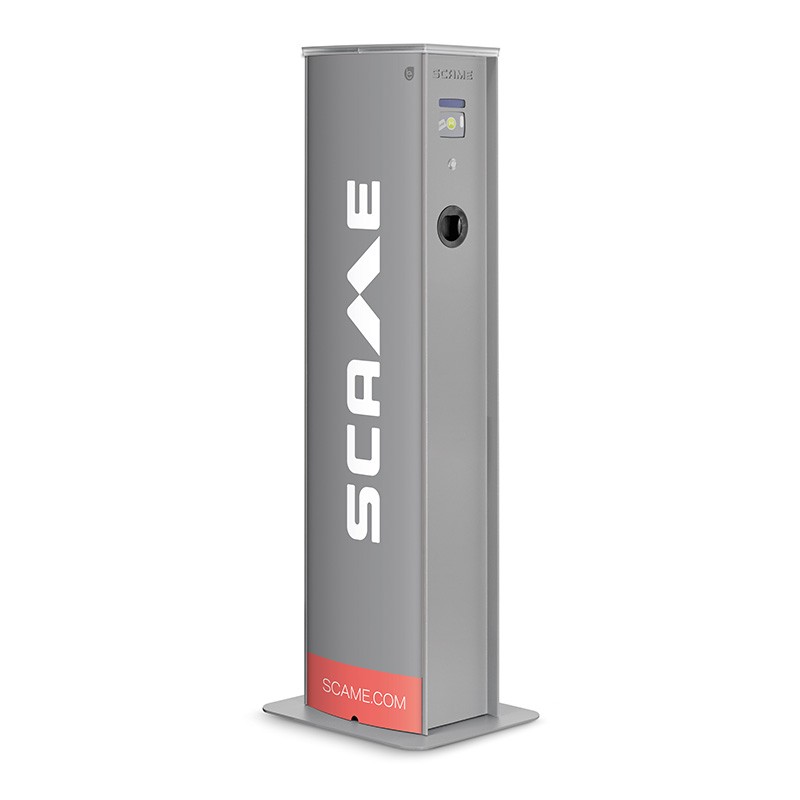

SCAME 204.CA13P-T2 204.CA13P-T2 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

204.CA13P-T2 SCAME PILLAR CA 1 SOCKET WITH LOCK

Reference: 204.CA13P-T2

Manufacturer: SCAME

Description:

PILLAR CA 1 SOCKET WITH LOCK
COLUMN CA 1 SOCKET WITH LOCK Type 2 3P+N+T 32A 400V~ 22kW 32A 400V 3P+N+T-IP54 IK10 With RFID identification
Type 2 3P+N+E 32A 400V~ 22kW 32A 400V 3P+N+E IP54 IK10

Categories:

  • SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

Commercial Series
CA Series
Synthetical description
PILLAR CA 1 SOCKET WITH LOCK
Material
VARNISHED METAL
Rated current
32A
Rated voltage
400V
Working frequency
50/60Hz
Poles
3P+N+E
Protection degree IP
IP54
Working temperature
-30°C/+50°C
Protection degree IK
IK10
Colour
GREY
Saline solution
Resistant
UV protection
UV resistant
Mounting version
ON TURRET
Dimensions
385x1510x263mm

Version
SOLO
EV standard
Type 2 3P+N+E 32A 400V~ 22kW
HMI (Human-Machine Interfaces)
LCD 2x20 char
EV functions
charge in mode 3 with pwm circuit pilot
predisposition for serial communication
protection against direct contact Safety Child Shutters
charge managing in case of power outage
identification of connected cord-set size
protection against overcurrents and electric shock
managing of lid locking and latching system
working in mode stand-alone free
current consuption metering
EV equipment
1 base with separation chamber
1 power supply 24Vdc 36W
1 fuse holder 1P+N gG 4A
1 DC Leakage detector
1 control card
1 stop charge push-button (mode free)
1 lcd display 2x20 rows backlight
1 backup battery
1 modular contactor 4P 40A 24Vdc
1 lighting head in translucent and RGB led
1 terminal strip 5x35mm²
1 couple of front panels in polycarbonate
1 circuit breaker 3P+N C40 30mA ist. A
1 current transformer

DATASHEET - PDF

Title
Size
Type
204.CA13P-T2 204.CA13P-T2 EN_204.CA13P-T2.pdf
34 Kbytes
PDF CATALOGUE SCAME EN
20 Mbytes
