> SCAME>204.CA11B-T2A SCAME PILLAR CA 1 SOCKET WITH LOCK
Previous Product Next Product

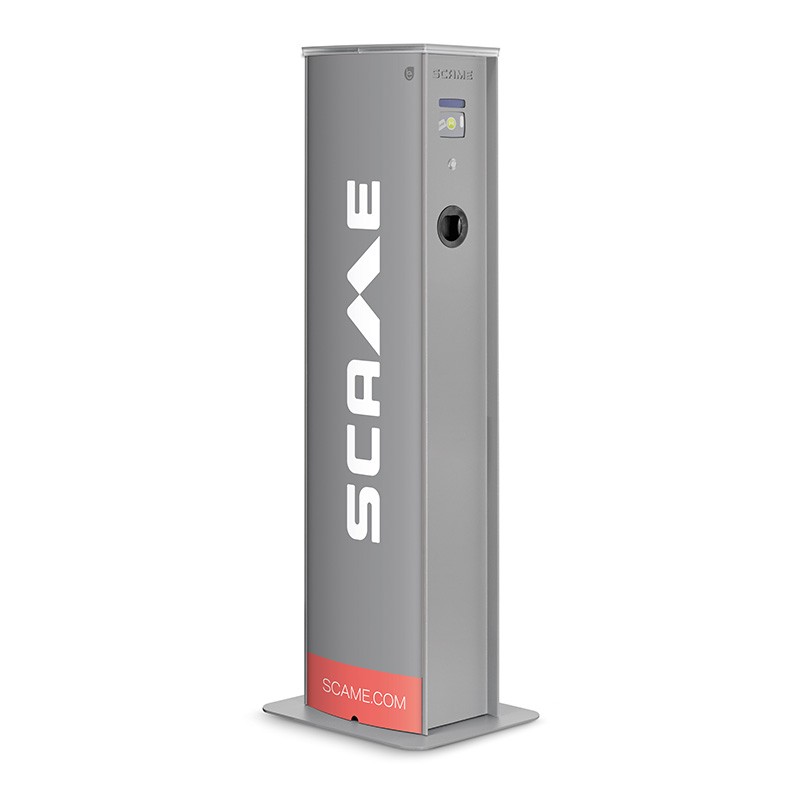

204.CA11B-T2A SCAME PILLAR CA 1 SOCKET WITH LOCK View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

204.CA11B-T2A SCAME PILLAR CA 1 SOCKET WITH LOCK

204.CA11B-T2A

SCAME

PILLAR CA 1 SOCKET WITH LOCK

COLUMN CA 1 SOCKET WITH LOCK Type 2 1P+N+T 32A 230V~ to 7.4 kW 32A 230V 1P+N+T-IP54 IK10 With RFID identification

Type 2 1P+N+E 32A 230V~ 7,4kW 32A 230V 1P+N+E IP54 IK10 OCPP 1.6 JSON

More details


Home > SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
CA Series
Synthetical description
PILLAR CA 1 SOCKET WITH LOCK
Material
VARNISHED METAL
Rated current
32A
Rated voltage
230V
Working frequency
50/60Hz
Poles
1P+N+E
Protection degree IP
IP54
Working temperature
-30°C/+50°C
Protection degree IK
IK10
Colour
GREY
Saline solution
Resistant
UV protection
UV resistant
Mounting version
ON TURRET
Dimensions
385x1510x263mm

Version
PRO
EV standard
Type 2 1P+N+E 32A 230V~ 7,4kW
HMI (Human-Machine Interfaces)
LCD 2x20 char
User authentication
RFID authentication
Connectivity
Ethernet
Communication protocol
OCPP 1.6 JSON
EV functions
charge in mode 3 with pwm circuit pilot
predisposition for serial communication
energy metering and current consumption
identification of authorized user
working in mode stand-alone free or personal
protection against direct contact Safety Child Shutters
charge managing in case of power outage
identification of connected cord-set size
protection against overcurrents and electric shock
interfacing with OCPP Central Station
managing of lid locking and latching system
load Balancing function
EV equipment
1 base with separation chamber
1 power supply 24Vdc 36W
1 fuse holder 1P+N gG 4A
1 DC Leakage detector
1 control card
1 stop charge push-button (mode free)
1 lcd display 2x20 rows backlight
1 backup battery
1 reader RFID 13,56MHz
1 modular contactor 2P 40A 24Vdc
1 local server wired with OCPP 1.6J protocol
1 circuit breaker 1P+N C40 30mA ist. A
1 digital energy meter 1P+N 40A
1 lighting head in translucent and RGB led
1 couple of front panels in polycarbonate
1 terminal strip 3x35mm²

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SCAME EN .pdf 20 Mbytes
204.CA11B-T2A 204.CA11B-T2A EN_204.CA11B-T2A.pdf 34 Kbytes 204.CA11B-T2A 204.CA11B-T2A EN_204.CA11B-T2A.pdf
