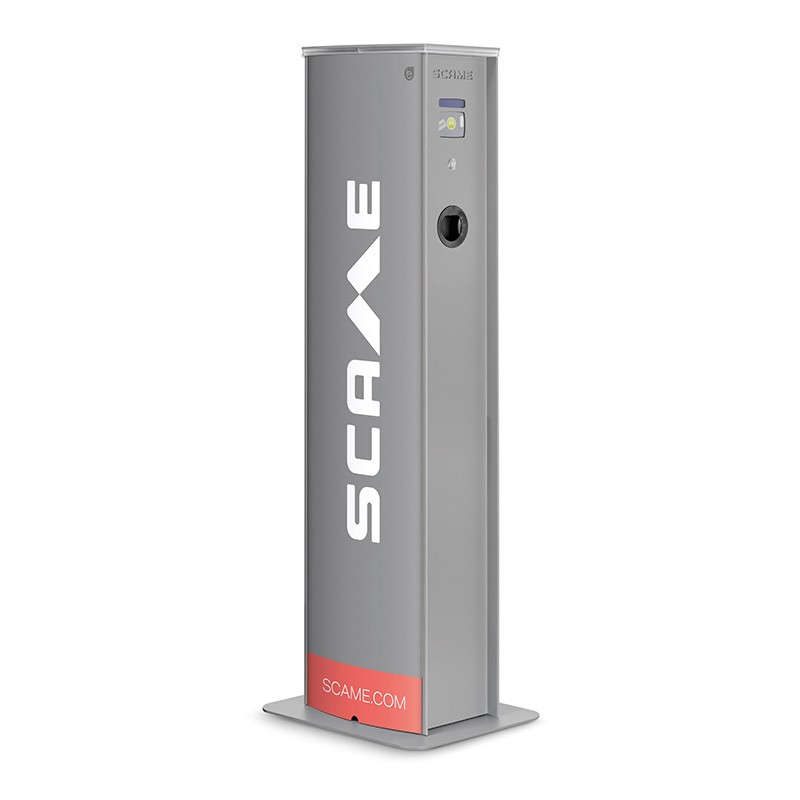

204.CA11B-T2 SCAME COLUMNS CA 1 SOCKET WITH LOCK T2 7kW View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

204.CA11B-T2 SCAME COLUMNS CA 1 SOCKET WITH LOCK T2 7kW

204.CA11B-T2

SCAME

COLUMNS CA 1 SOCKET WITH LOCK T2 7kW

Type 2 1P+N+E 32A 230V~ 7,4kW 32A 230V 1P+N+E IP54 IK10

More details


Industrial socket/plug applications > Charging device E-Mobility

Connector for electric vehicles - SCAME > LIBERA Series - SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Commercial Series
CA Series
Synthetical description
PILLAR CA 1 SOCKET WITH LOCK
Material
VARNISHED METAL
Rated current
32A
Rated voltage
230V
Working frequency
50/60Hz
Poles
1P+N+E
Protection degree IP
IP54
Working temperature
-30°C/+50°C
Protection degree IK
IK10
Colour
GREY
Saline solution
Resistant
UV protection
UV resistant
Mounting version
ON TURRET
Dimensions
385x1510x263mm

Version
BUSINESS
EV standard
Type 2 1P+N+E 32A 230V~ 7,4kW
HMI (Human-Machine Interfaces)
LCD 2x20 char
User authentication
RFID authentication
Connectivity
None
EV functions
charge in mode 3 with pwm circuit pilot
predisposition for serial communication
energy metering and current consumption
identification of authorized user
working in mode stand-alone free or personal
protection against direct contact Safety Child Shutters
charge managing in case of power outage
identification of connected cord-set size
protection against overcurrents and electric shock
managing of lid locking and latching system
EV equipment
1 base with separation chamber
1 power supply 24Vdc 36W
1 fuse holder 1P+N gG 4A
1 DC Leakage detector
1 control card
1 stop charge push-button (mode free)
1 lcd display 2x20 rows backlight
1 backup battery
1 reader RFID 13,56MHz
1 modular contactor 2P 40A 24Vdc
1 circuit breaker 1P+N C40 30mA ist. A
1 digital energy meter 1P+N 40A
1 lighting head in translucent and RGB led
1 couple of front panels in polycarbonate
1 terminal strip 3x35mm²
EV specifications
Charging station for electric vehicles with floor installation via galvanised steel base (500 X 410 mm) acting as a condensation separation chamber, equipped with studs on which to fix the column using M8 nuts (centre distance 250 X 170 mm).<br>Structure in galvanised and painted sheet steel equipped with front panels in plexiglass with the possibility of customisation with the customer's logo or brand.<br>RGB LED light head with three colours indicating the station's operating status.<br>Column equipped with a type 2 anti-vandal socket with a protective shutter compliant with the CEI EN 62196-2 standard and suitable for charging in mode 3 in compliance with the CEI EN 61851-1 standard (IPXXD degree of protection is guaranteed without further disconnecting devices).<br>Socket equipped with plug locking system to prevent accidental removal and interlocking of the cover to prevent tampering and unauthorised access.<br>Maximum deliverable current 32 A single phase (7 kW) with identification of the size of the connected cable.<br>Column complete with automatic and differential protection devices and digital meter for the measurement of the energy delivered and the control of the absorbed current.<br>LCD display for messages and diagnostic management with the possibility of changing the language through a simple button, backup batteries to ensure continuity of service in the event of power loss.<br>RFID reader for user recognition and management of the charge. Operation in FREE or PERSONAL stand-alone mode.<br>STOP button to end the charge and allow plug extraction (FREE mode).<br>Set up for communication over RS485 serial line (NET mode with management via server).<br>Operating temperature -25°C to +40°C, IK10 impact resistance, casing with IP54 degree of protection.<br>Compliant with CEI EN 61851-1, CEI EN 62196-2, CEI EN 61439-7, CEI EN 60304-7-722 standards and complete with CE marking.<br>
