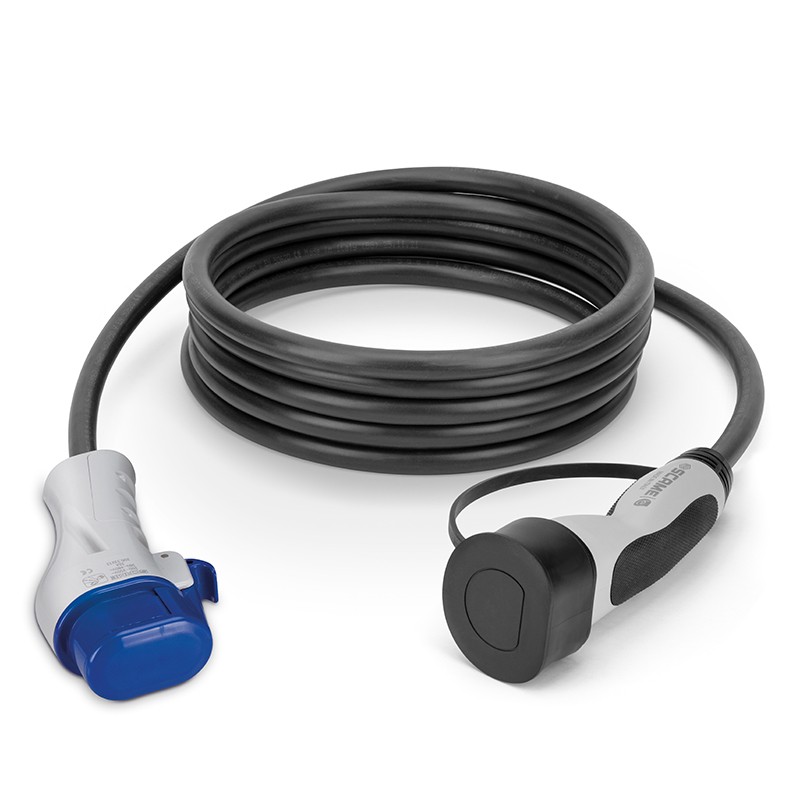

201.CSC424-5 SCAME CORD SET IP44 32A p.3A 32A s.T2 20A

201.CSC424-5

SCAME

CORD SET IP44 32A p.3A 32A - s.T2 20A

CORD SET IP44 32A 3C 32A 3P - T2 32A 3P

3C 32A 3P - T2 32A 3P 5G6+1x0,5mm² 5m 22kW

More details


Industrial socket/plug applications > Charging cable E-Mobility

Home > SCAME

Brand new product in its original packaging covered by the warranties and certifications provided by SCAME

Total: $484.20
Unit price: $484.20
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

More info



Commercial Series
LIBERA[CS] Series
Synthetical description
CHARGING CABLE
Protection degree IP
IP44
Rated current
32A
Rated voltage
400V
Working frequency
50/60Hz
Poles
3P+N+E
Max power
22kW
Material
THERMOPLASTIC
GLOW WIRE
GW 850°C
Saline solution
Resistant
UV protection
UV resistant
Notes
3C 32A 3P - T2 32A 3P
Cable section
5G6+1x0,5mm²
Cable length
5m
Cable outer diameter
ø15,5÷16,5mm
Rated cable voltage
450V-750V
Cable insulation
PUR
Maximum cable temperature
+90°C
Working temperature
-30°C/+40°C

EV standard
Type 2 3P+N+E 32A 400V~ 22kW
Type 3C 3P+N+E 32A 400V~ 22kW
EV plug
Type 3C 3P+N+E 32A 400V~
EV connector
Type 2 3P+N+E 32A 400V~

Datasheet - PDF
