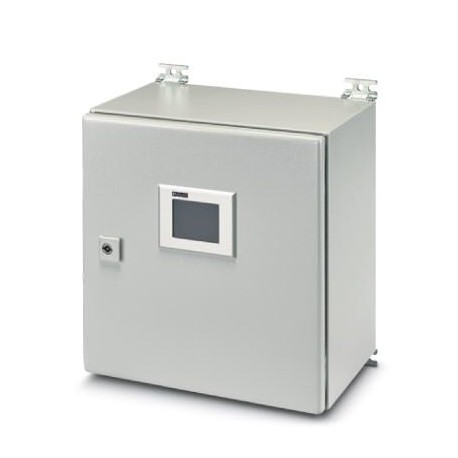

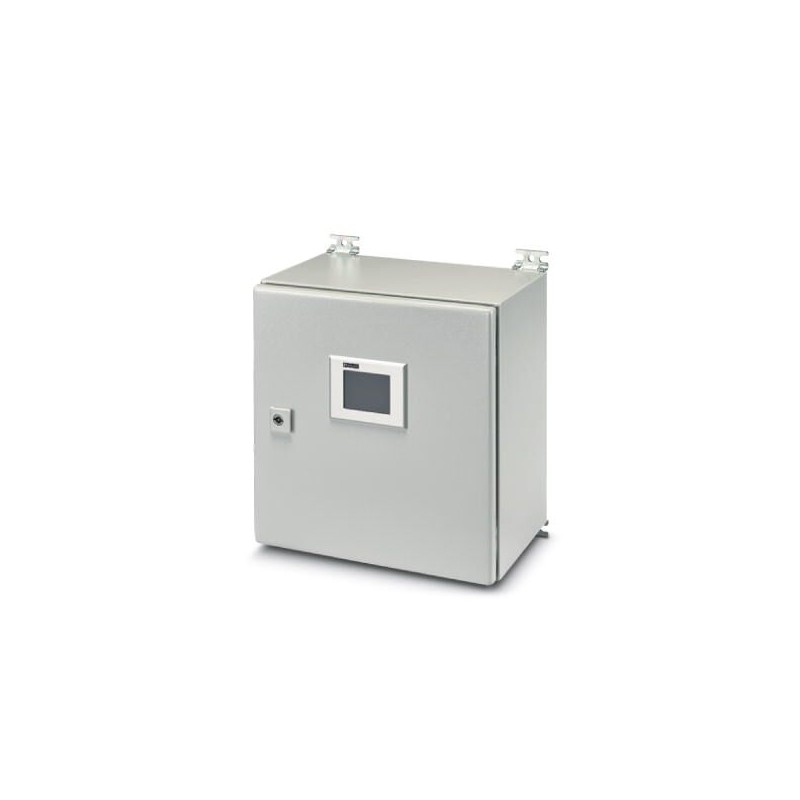

WAL-SC-PUMPMONITOR 1039428 PHOENIX CONTACT Switching device combination WAL-SC-PUMPMONITOR 1039428
WAL-SC-PUMPMONITOR
1039428
PHOENIX_CONTACT
Switching device combination - WAL-SC-PUMPMONITOR - 1039428
Distribution boards > Cable entry cabinet
Industry Solutions (IS)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Solution for continuously monitoring the ongoing maintenance requirements for pumps used in water and wastewater treatment
Key Commercial Data
| Orderkey | 1039428 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626594460 |
| Custom tariff number | 85371098 |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
General data
| Weight | 12 kg |
|---|---|
| Installation location | Indoor use, no exposure to direct sunlight |
| Degree of protection | IP54 |
| Protection class | I, IEC 61140, EN 61140, VDE 0140-1 |
Housing
| Housing material | Sheet steel (dip-primed, powder-coated on the outside, textured finish) |
|---|---|
| RAL color | 7035 |
Ambient conditions
| Ambient temperature (operation) | 0 °C ... 55 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Air pressure (operation) | 70 hPa ... 106 kPa (up to 2000 m above sea level) |
| Air pressure (storage/transport) | 70 hPa ... 106 kPa (up to 2000 m above sea level) |
| Permissible humidity (operation) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (according to DIN EN 61131-2) |
| Shock (operation) | DIN EN 60068-2-27 |
| Vibration (operation) | DIN EN 60068-2-6 |
Dimensions
| Outer dimensions: width, height, depth | 380 mm x 380 mm x 210 mm (Housing dimensions) |
|---|---|
| 380 mm x 434 mm x 220 mm (With wall brackets) |
Technical characteristics
| Nominal output current (IN) | 0.6 A |
|---|---|
| Control voltage | 24 V DC |
| Nominal current control voltage | 2.5 A |
| Recommended backup fuse for 230 V AC | 32 A (Characteristic B, 1-pos.) |
| Range value | 100 V AC ... 240 V AC (UN) |
| Recommended backup fuse | 32 A (Characteristic B, 1-pos.) |
Cable entry
| Type of cable entry | Cable feed-through plates With cable glands |
|---|---|
| Cable gland | 1x M16 |
| 1x M20 | |
| 7x M25 |
Standards and Regulations
| Vibration (operation) | DIN EN 60068-2-6 |
|---|---|
| Shock (operation) | DIN EN 60068-2-27 |
Classifications
eCl@ss
| eCl@ss 10.0.1 | 27142422 |
|---|---|
| eCl@ss 5.1 | 27371890 |
| eCl@ss 7.0 | 27142422 |
| eCl@ss 8.0 | 27142422 |
| eCl@ss 9.0 | 27142422 |
ETIM
| ETIM 4.0 | EC000816 |
|---|---|
| ETIM 5.0 | EC000268 |
| ETIM 6.0 | EC000268 |
| ETIM 7.0 | EC000268 |
