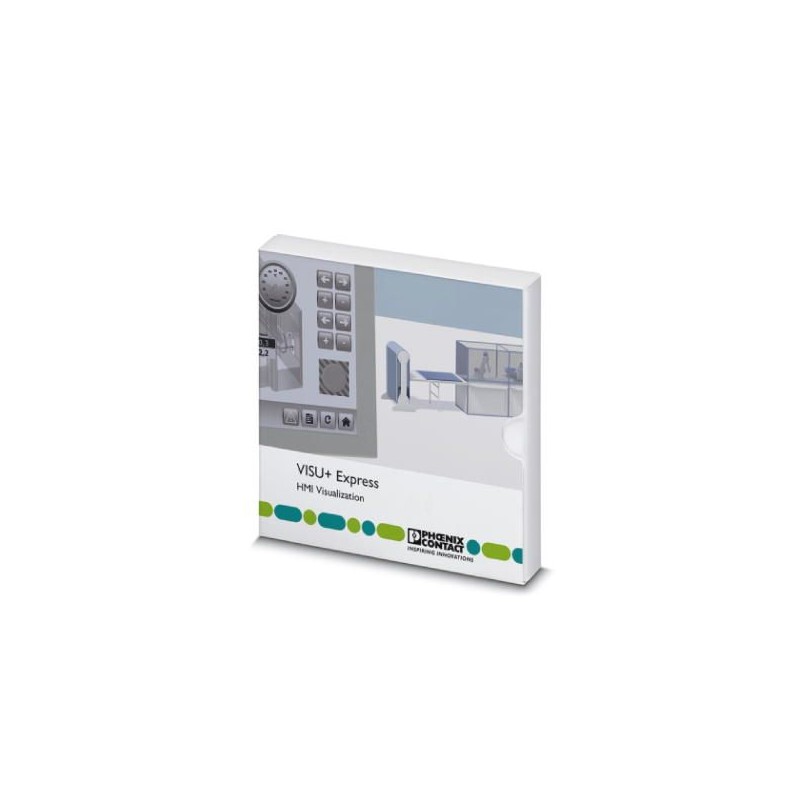

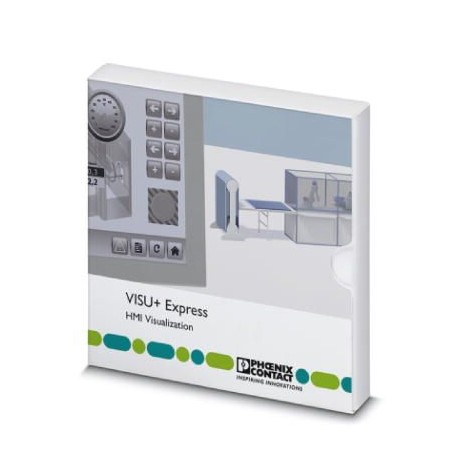

VISU+ 2 EXPRESS 2402774 PHOENIX CONTACT Software
VISU+ 2 EXPRESS
2402774
PHOENIX_CONTACT
Software
Development environment for all touchpads with built-in Visu+ visualization software runtime.
PLC's > Visualization software
Automation Software (AS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2402774 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 61 (C-6-2017) |
| GTIN | 4055626131856 |
| Weight per Piece (excluding packing) | 68.900 g |
| Custom tariff number | 85234910 |
| Country of origin | DE (Germany) |
Functions
| Basic functions | Know-How protection and safety through encoding of projects |
|---|---|
| FDA CFR 21 Part 11 compatible | |
| OPC Classic Interface and direct drivers | |
| Expanded functionality | Web client capability |
| Extended alarm management with SMS and e-mail function | |
| Number of I/O nodes | not relevant |
Hardware requirements
| Hard disk | min. 1 GByte (recommended: 2 GB) |
|---|---|
| RAM | min. 512 Mbyte (Recommended: 1 GByte) |
| CPU | Pentium/Celeron, 1.6 GHz |
| Optical drive | DVD-ROM |
| Monitor resolution | XGA (1024 x 768) |
| Operating equipment | Keyboard, mouse |
Software requirements
| Operating system | Windows®XP (SP3) |
|---|---|
| Windows®Vista Business | |
| Windows®7 Professional SP1 (32-Bit/64-Bit) | |
| Windows®7 Ultimate SP1 (32-Bit/64-Bit) | |
| Windows®8 Professional (32-Bit/64-Bit) | |
| Windows®8 Enterprise (32-Bit/64-Bit) | |
| Windows®Server 2003 | |
| Windows®Server 2008 | |
| Windows®Server 2008 R2 | |
| Windows®10 (32-Bit/64-Bit) | |
| Languages supported | German, English, French, Italian |
| Supported browsers | Internet Explorer 5.5 or higher |
Environmental Product Compliance
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
|---|
Classifications
eCl@ss 4.027248002eCl@ss 4.127248002eCl@ss 5.027242502eCl@ss 5.127242500eCl@ss 6.027242500eCl@ss 7.027242502eCl@ss 8.027242502eCl@ss 9.027242502
| Feature Name | Feature Value |
|---|---|
| With OPC-interface, server (EF003172) | No |
| With OPC-interface, client (EF003173) | No |
| With programming interfaces (EF003174) | No |
| Multi-user capable, runtime (EF003152) | No |
| Max. number of clients (EF003154) | 0 |
| Suitable for web-clients (EF003155) | Yes |
| SCADA functionality (EF007458) | No |
| Alarm-management (EF006805) | No |
| Trend representation (EF007510) | No |
| Online projecting possible (EF003158) | Yes |
| Language switch possible (EF007493) | Yes |
| With script language Visual Basic (EF003163) | No |
| With other script language (EF003164) | No |
| Library with object elements (EF003165) | Not available |
| User groups (password protection) possible (EF003166) | Yes |
| Function process diagnostics (EF003170) | Not available |
| Min. required processor speed for runtime system (EF003175) | 1.6 GHz |
| Min. required processor speed for configuration software (EF003181) | 1.6 GHz |
