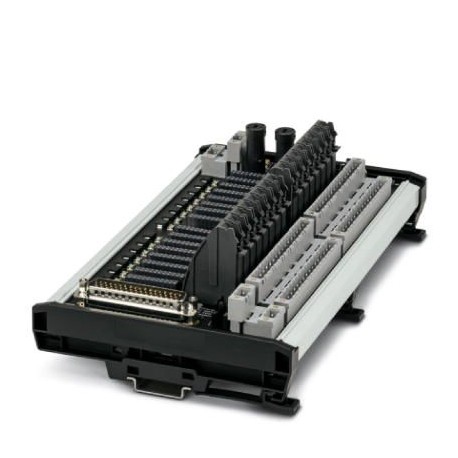

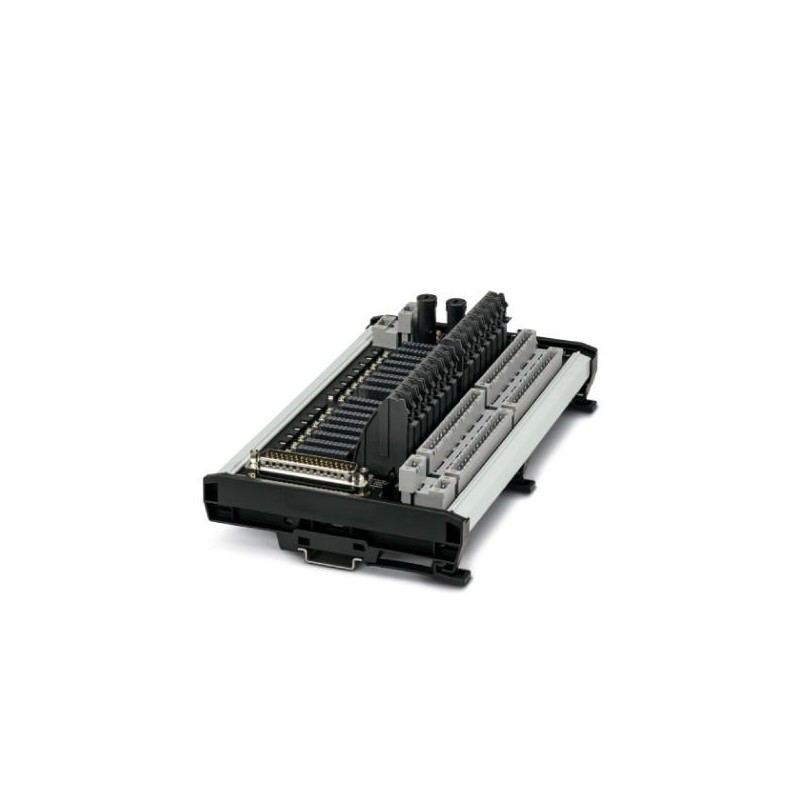

VIP/MSTB/D50M/BASE/16CH/CX/EX 2908788 PHOENIX CONTACT Base module

Reference: VIP/MSTB/D50M/BASE/16CH/CX/EX

Code: 2908788

Manufacturer: PHOENIX CONTACT

Product on demand only, returns will not be accepted.

Description:

Base module
Marshalling VIP I/O base element with 16 channels for universal use. Field terminals and plug-in supply are available as accessories. Optionally with screw or push-in connection technology. Compatible with the Tricon CX DCS (D-SUB 50) series.

Categories:

  • PLC's > Interface module
  • PHOENIX CONTACT > INTERFACE Components (IF)

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX CONTACT

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 874,10 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Key Commercial Data

Orderkey2908788
Packing unit1 pc
NoteMade to Order (non-returnable)
GTIN4055626477992
Weight per Piece (excluding packing)761.300 g
Custom tariff number85366990
Country of originUS (United States)

Dimensions

Width250 mm
Height142.3 mm
Depth78 mm

Ambient conditions

Ambient temperature (operation)-40 °C ... 70 °C
Ambient temperature (storage/transport)-40 °C ... 70 °C

General

Max. operating voltage Umax30 V DC (field terminals)
Max. operating voltage30 V DC (field terminals)
230 V AC (field terminals)
30 V DC (A and B terminals)
30 V DC (D-SUB 50 connector)
Max. perm. current (per branch)3 A (field signal)
0.5 A (control contacts)
Max. permissible current3 A (A and B terminals)
Max. permissible total current10 A (per module)
Status displayNo
Mounting positionAs desired on 35 mm DIN rail in acc. with EN 60715
Degree of protectionIP20

Connection data for connection 1

Connection nameField level
Connection in acc. with standardIEC / EN
Connection methodpluggable
Number of connections4
Number of positions16

Connection data for connection 2

Connection nameController level
Connection methodD-SUB pin strip
Number of connections1
Number of positions50

Supported controller

ControllerTricon CX

Standards and Regulations

Standards/regulationsIEC 60664
DIN EN 50178
Degree of pollution2
Overvoltage categoryII, III
ConformanceANSI/ISA 60079-0; 60079-11; 60079-15
ANSI/IEC 60529
FM 3600; 3611; 3810
ATEXSira 18ATEX 4041X
Ex II 3G; Ex nA IIC T4 Gc; Ex II 3(3)G Ex nA [ic] IIC T4 Gc; Ex II (3)G [Ex ic Gc] IIC
Ex II 3G (3)D Ex nA [ic IIIC Dc] IIC T4 Gc; Ex II (3)D [Ex ic Dc] IIIC
Sira 18ATEX 2040X
Ex II 3(1)G Ex nA [ia Ga] IIC T4 Gc; Ex II (1)G [Ex ia Ga] IIC; Ex II 3G (1)D
Ex nA [ia IIIC Da] IIC T4 Gc; Ex II (1)D [Ex ia Da] IIIC
IECExIECEx SIR 18.0007X
Ex nA IIC T4 Gc; Ex nA [ic] IIC T4 Gc; [Ex ic Gc] IIC; [Ex ic Dc] IIIC; Ex nA [ia Ga] IIC T4 Gc
Ex nA [ic IIIC Dc] IIC T4 Gc; Ex nA [ia IIIC Da] IIC T4 Gc; [Ex ia Ga] IIC; [Ex ia Da] IIIC
CSA, USA/CanadaNonincendive: Class I, Div. 2, Groups ABCD T4
Connection to Class I, II, III, Div. 2, Groups ABCDEFG
Class I, Zone 2, (A)Ex nA IIC T4 Gc, Class I, Zone 2
Class I, Zone 2 with connection to Class I, Zone 2, (A)Ex nA [ic] IIC T4 Gc
Class I, Zone 2 with connection to Class I, Zone 0, (A)Ex nA [ia Ga] IIC T4 Gc
Class I, Zone 2 with connection to Zone 22, (A)Ex nA [ic IIIC Dc] IIC T4 Gc
Class I, Zone 2 with connection to Zone 20, (A)Ex nA [ia IIIC Da] IIC T4 Gc

Environmental Product Compliance

REACh SVHCLead 7439-92-1

Classifications

ETIM for 2908788 PLC's (EC002780)

Feature nameType of electrical connection, control sided (EF008549)
Feature valueD-Sub
Feature nameNumber of poles (EF001391)
Feature value16
Feature nameRated current (EF000227)
Feature value3 A
Feature nameDepth (EF000049)
Feature value78 mm
Feature nameWidth (EF000008)
Feature value250 mm
Feature nameHeight (EF000040)
Feature value142.3 mm
Feature nameMounting method (EF000003)
Feature valueDIN rail (top hat rail) 35 mm
