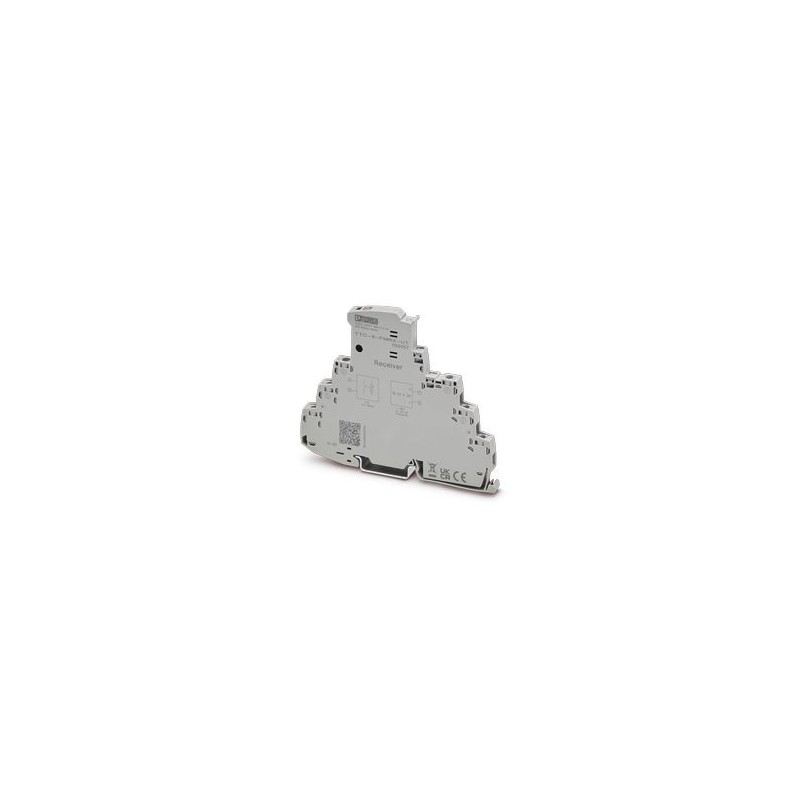

TTC-6-FMRX-UT 1193557 PHOENIX CONTACT Receiver module, for optical monitoring and floating remote signal of ..
TTC-6-FMRX-UT
1193557
PHOENIX_CONTACT
Receiver module, for optical monitoring and floating remote signal of contiguous surge protection devices of the TERMITRAB complete or CLIXTRAB product family. Suitable for rail profile with direct or indirect ground connection.
Remote Indication Module Receiver
Receiver module, for the visual monitoring and floating remote signaling of adjacent surge protective devices from the TERMITRAB complete or CLIXTRAB product family. Suitable for directly or indirectly grounded DIN rails.
Earthing, lightning and surge protection > Surge protection device for data networks/MCR-technology
Trabtech (TT)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Type | DIN rail module, one-piece |
| Product type | Remote signaling set |
| Product family | TERMITRAB complete |
| Insulation characteristics | |
| Overvoltage category | I (for supply) |
| III (for remote signaling) | |
| Pollution degree | 2 |
| Indicator/remote signaling | |
| Switching function | N/C contact |
| Supply: Status indicator/remote signaling | |
| nom. voltage | 24 V AC ... 48 V AC (50/60 Hz, with derating) |
| 12 V DC ... 48 V DC (with derating) | |
| Operating voltage | 20 V AC ... 49 V AC (50/60 Hz, with derating) |
| 10 V DC ... 74 V DC (with derating) | |
| Operating current | max. 20 mA DC (12 V) |
| Number of surge protection modules that can be mounted side by side | 50 (TTC-6) |
| 30 (CLT-10) | |
| Cross section AWG | (converted acc. to IEC) |
| Connection method | Screw connection |
| Screw thread | M3 |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Dimensional drawing |  |
| Width | 6.2 mm +0.1 mm |
| Height | 105.8 mm |
| Depth | 83.5 mm (incl. DIN rail 7.5 mm) |
| Flammability rating according to UL 94 | V-0 |
| Insulating material | PBT |
| Housing material | PBT |
| Surge protection fault message | Optical, remote indicator contact |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | ≤ 4000 m (amsl) |
| Permissible humidity (operation) | 5 % ... 95 % |
| Standards/specifications | EN 50124-1 |
| Note | 2017 |
| Standards/specifications | EN 50121-4 |
| Note | 2016 |
| Standards/specifications | EN 61000-6-3 |
| Note | 2007 + A1:2011 |
| Standards/specifications | EN 61000-6-2 |
| Note | 2005 |
| Mounting type | DIN rail: TH 35 - 7.5 mm |
