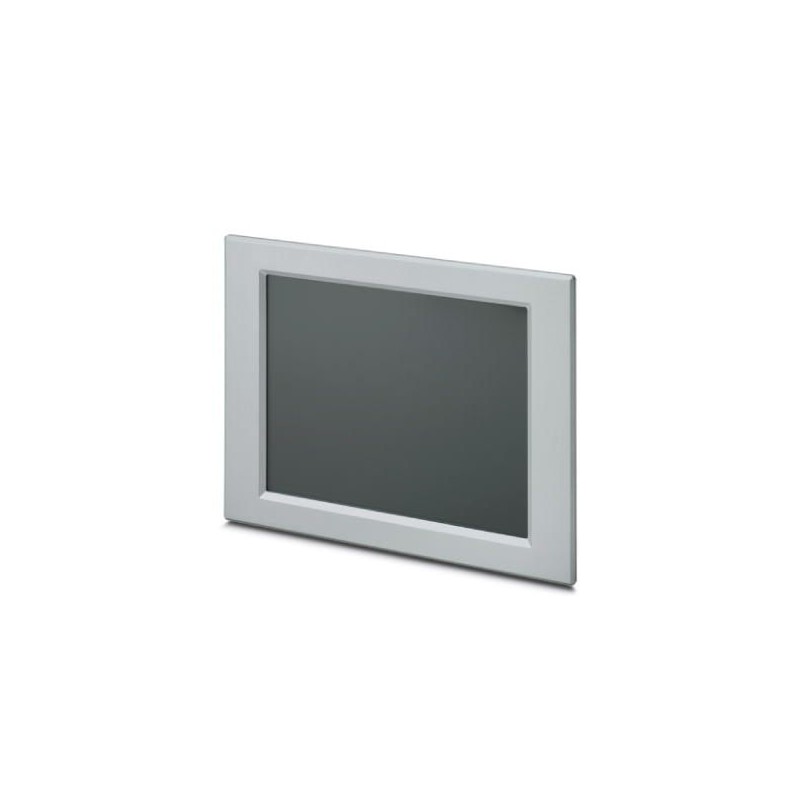

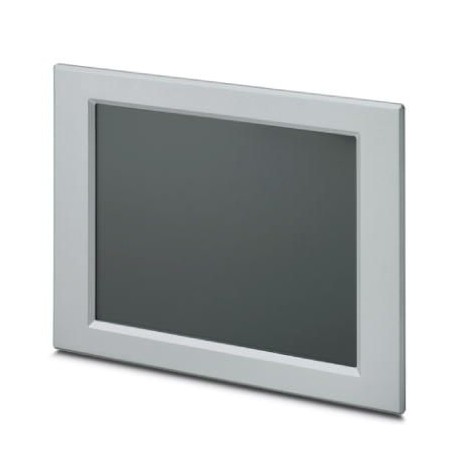

TP 5120S 2403105 PHOENIX CONTACT Touch Panel with 30,7 cm / 12,1"-TFT-Screen (analog resistive (polyester)),..
TP 5120S
2403105
PHOENIX_CONTACT
Touch Panel with 30,7 cm / 12,1"-TFT-Screen (analog resistive (polyester)), 800 x 600 Pixel (SVGA), 16.2 million colors, Intel®Atom™ N455 1.66 GHz, 4x USB 2.0, 1x COM (RS-232/422/485), 2x COM (RS-232), 2x Ethernet (10/100/1000 Mbit/s), RJ45, Windows®Embedded Compact 7, and user Software: Visu+ / AX OPC Server. (System bus: no)
Control Systems (CST)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Data commercial
| Key order | Two million four hundred three thousand one hundred five |
|---|---|
| Packing unit | 1 pcs |
| Key selling | DRCABC - |
| EAN | Four trillion fifty five billion six hundred twenty six million two hundred forty seven thousand nine hundred eight |
| Unit weight (excluding packaging) | 3,500 kg |
| Tariff number tariff | Eighty four million seven hundred fourteen thousand one hundred |
| Country of origin | TW (Taiwan) |
Observation
| Restriction of use | EMC: class A product, see manufacturer's declaration in the download center |
|---|
Dimensions
| External dimension Width | 365 mm |
|---|---|
| Outside dimension Height | 282 mm |
| Outside dimension Depth | 55 mm |
| Measure the mounting Width | 334 mm |
| Measure mounting Height | 253 mm |
| Indication about the extent of assembly | Assembly section |
Screen
| Display | 30,7 cm / 12,1"-TFT |
|---|---|
| Brightness | 350 cd/m2 typical (adjustable) |
| Resolution of the screen | 800 x 600 Pixel(s) (SVGA) |
| Background lighting | LED |
| Backlight MTBF | > 50000 h |
| Touch Technology | analog-resistive (polyester) |
| Colors | 16.2 million colors |
Data computer
| Processor | Intel®Atom™ N455 1.66 GHz |
|---|---|
| Cooling | passive |
| Operating system | Windows®Embedded Compact 7 |
| Software user | Visu+ |
| AX OPC Server | |
| Main memory | 2 GB DDR3 SODIMM |
| Data memory | CompactFlash® 2 GB |
| Network | 2x Ethernet (10/100/1000 Mbit/s), RJ45 |
| Interfaces | 4x USB 2.0 |
| 1x COM (RS-232/422/485) | |
| 2x COM (RS-232) | |
| Monitor output | 1x VGA |
| System bus | without |
| Ports | no post plug-in |
| Real-time clock | yes (with backup battery) |
| Battery life | 5 years (typ.) |
Overview
| Material of the front plate | Aluminium die-casting |
|---|---|
| Mounting type | Mounting on front plate |
| Weight | 4.6 kg |
Environmental conditions
| Index of protection | IP65 (front side), IP20 (rear side) |
|---|---|
| Room temperature (service) | 0 °C ... 50 °C |
| Ambient temperature (storage / transport) | -40 °C ... 70 °C |
| Humidity of air permissible (service) | 5 % ... 95 % (without condensation) |
| Humidity of air permissible (storage / transport) | 5 % ... 95 % (without condensation) |
| Vibration (service) | DIN EN 60068-2-6 |
| Shock | 15g, 11 ms according to IEC 60068-2-27 |
Power of the device
| Supply voltage | 24 V DC |
|---|---|
| 19,2 V DC ... 28.8 V DC | |
| Power consumption | typ. 12.5 W |
| Power supply | 24 V DC ±20 % |
Standards and specifications
| Shock | 15g, 11 ms according to IEC 60068-2-27 |
|---|---|
| Vibration (service) | DIN EN 60068-2-6 |
Environmental Product Compliance
| China RoHS | Space of time for the intended use (FEUP): 50 years |
|---|---|
| You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
Ratings
eCl@ss 4.0Twenty seven million two hundred fifty thousand three hundred fifteeneCl@ss 4.1Twenty seven million two hundred fifty thousand three hundred fifteeneCl@ss 5.0Twenty seven million two hundred fifty nine thousand two hundred fiveeCl@ss 5.1Twenty seven million three hundred thirty thousand two hundredeCl@ss 6.0Twenty seven million two hundred forty two thousand three hundredeCl@ss 7.0Twenty seven million two hundred forty two thousand three hundred twoeCl@ss 8.0Twenty seven million two hundred forty two thousand three hundred twoeCl@ss 9.0Twenty seven million three hundred thirty thousand two hundred one
UNSPSC 6.01Forty three million one hundred seventy two thousand fifteenUNSPSC 7.0901Forty three million two hundred one thousand four hundred fourUNSPSC 11Forty three million one hundred seventy two thousand fifteenUNSPSC 12.01Forty three million two hundred one thousand four hundred fourUNSPSC 13.2Forty three million two hundred eleven thousand nine hundred four
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX AUTOMATION EN .pdf | 35 Mbytes |
|
