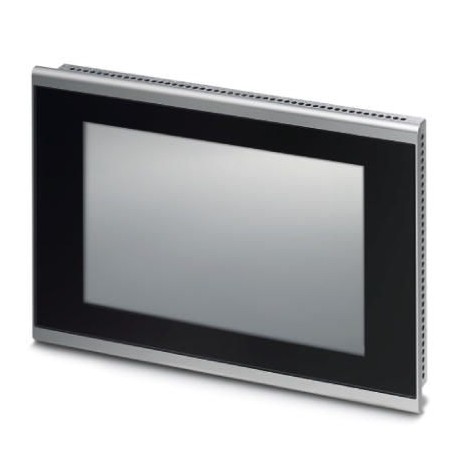

TP 3070W/P 2403459 PHOENIX CONTACT Touch panel
TP 3070W/P
2403459
PHOENIX_CONTACT
Touch panel
Control Systems (CST)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 2403459 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 22 (C-6-2017) |
| GTIN | 4055626354774 |
| Weight per Piece (excluding packing) | 1,300.000 g |
| Custom tariff number | 84714100 |
| Country of origin | DE (Germany) |
Dimensions
| External dimension, width | 208 mm |
|---|---|
| External dimension, height | 148.5 mm |
| External dimension, depth | 6 mm |
| Note regarding external dimension | Dimensions of the front plate |
| Installation dimension, width | 198 mm |
| Installation dimension, height | 138 mm |
| Installation dimension, depth | 53 mm |
| Note regarding installation dimension | Installation cutout |
| Installation dimension, depth | 80 mm |
| Note regarding installation dimension | With bus interface |
Display
| Display | 17.8 cm/7" TFT |
|---|---|
| Brightness | 400 cd/m², typical (adjustable) |
| Screen resolution | 800 x 480 Pixel(s) (WVGA) |
| Backlighting | LED |
| Display backlight MTBF | 50000 h |
| Touch technology | Projective-capacitive (PCAP) |
| Colors | 16.7 million colors |
| Reading angle left | 70 ° |
| Reading angle right | 70 ° |
| Reading angle top | 60 ° |
| Reading angle bottom | 60 ° |
Computer data
| Processor | Arm®Cortex®-A8, 1000 MHz |
|---|---|
| Operating system | Windows®Embedded Compact 7 |
| User software | Visu+ |
| RAM | 512 MB LPDDR RAM |
| Mass storage | NAND-Flash, 1 GB |
| Network | 1 x Ethernet (10/100 Mbps), RJ45 |
| Interfaces | 2x USB host 2.0 |
| Bus system | without |
| Slots | 1x SD |
| Realtime clock | Yes (battery-backed) |
| Service life of battery | 5 years (typical) |
General
| Material front plate | Aluminum (natural anodized) |
|---|---|
| Housing material | Steel sheet, zinc-plated |
| Mounting type | Front installation |
| Weight | 1300 g |
Ambient conditions
| Degree of protection | IP65 (front), IP20 (back) |
|---|---|
| NEMA 4X | |
| Ambient temperature (operation) | 0 °C ... 50 °C |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 85 % (non-condensing) |
| Permissible humidity (storage/transport) | 20 % ... 85 % (non-condensing) |
| Vibration (operation) | DIN EN 60068-2-6 |
| Shock | DIN EN 60068-2-27 |
Device supply
| Supply voltage | 24 V DC |
|---|---|
| Supply voltage range | 18 V DC ... 30 V DC |
| Typical current consumption | typ. 0.4 A (Standard) |
| Power consumption | typ. 9.6 W (Standard) |
| Power supply unit | 24 V DC ±20 % |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 15; |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
