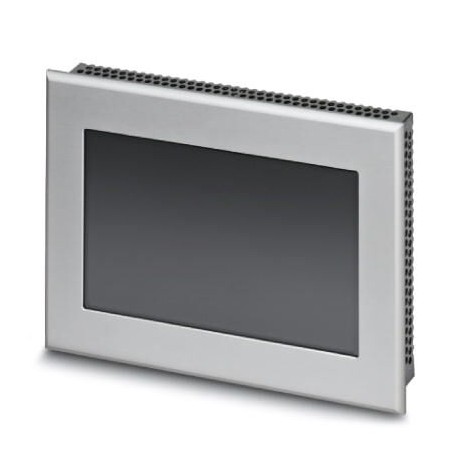

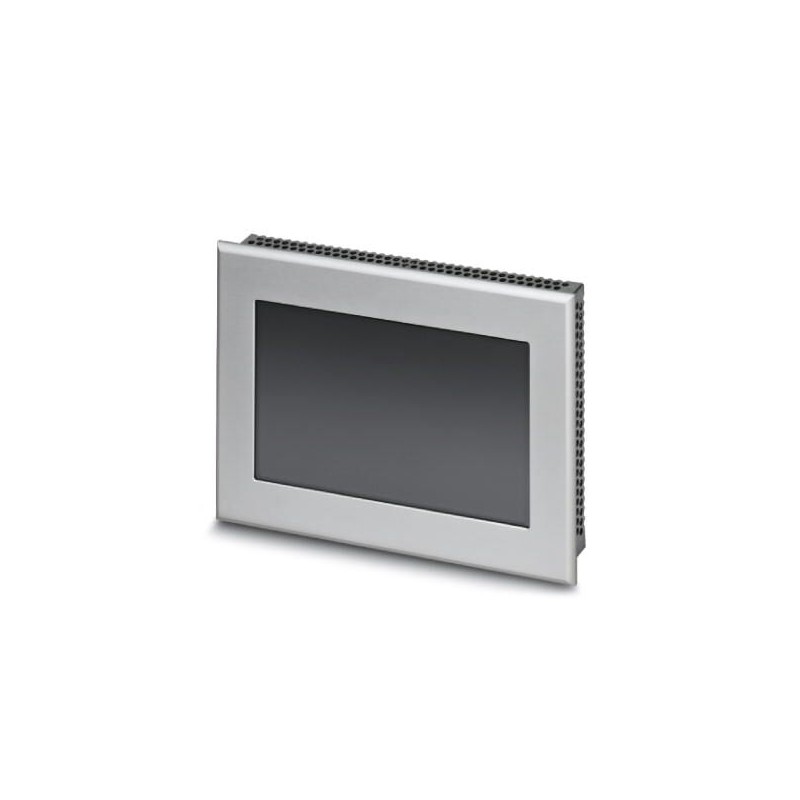

TP 1070T/703000 2701167 PHOENIX CONTACT Touch panel with 17.8 cm/7" TFT-display (analog resistive (polyester..
TP 1070T/703000
2701167
PHOENIX_CONTACT
Touch panel with 17.8 cm/7" TFT-display (analog resistive (polyester)), 800 x 480 Pixel(s) (WVGA), 65536 colors, Arm9™, 200 MHz, 2x USB host 2.0, 1 x Ethernet (10/100 Mbps), RJ45, Windows CE 5.0 and user software: TSDiag. (bus system: without)
Control Systems (CST)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Touch panel with 17.8 cm/7" TFT-display (analog resistive (polyester)), 800 x 480 Pixel(s) (WVGA), 65536 colors, Arm9™, 200 MHz, 2x USB host 2.0, 1 x Ethernet (10/100 Mbps), RJ45, Windows CE 5.0 and user software: TSDiag. (bus system: without)
Key Commercial Data
| Orderkey | 2701167 |
|---|---|
| Packing unit | 1 |
| GTIN | 4046356713382 |
| Custom tariff number | 84714100 |
Dimensions
| Width | 203 mm |
|---|---|
| Height | 147 mm |
| Depth | 59 mm |
Ambient conditions
| Ambient temperature (operation) | 0 °C ... 50 °C |
|---|
General
| Weight | 1000 g |
|---|
Standards and Regulations
| Shock | DIN EN 60068-2-27 |
|---|---|
| Vibration (operation) | DIN EN 60068-2-6 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 15; |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 5.1 | 27330200 |
|---|---|
| eCl@ss 6.0 | 27242300 |
| eCl@ss 7.0 | 27242302 |
| eCl@ss 8.0 | 27242302 |
| eCl@ss 9.0 | 27330201 |
ETIM
| ETIM 3.0 | EC001412 |
|---|---|
| ETIM 4.0 | EC001412 |
| ETIM 5.0 | EC001412 |
| ETIM 6.0 | EC001412 |
| ETIM 7.0 | EC001412 |
UNSPSC
| UNSPSC 6.01 | 43172015 |
|---|---|
| UNSPSC 7.0901 | 43201404 |
| UNSPSC 11 | 43172015 |
| UNSPSC 12.01 | 43211903 |
| UNSPSC 13.2 | 43211904 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX AUTOMATION EN .pdf | 35 Mbytes |
|
