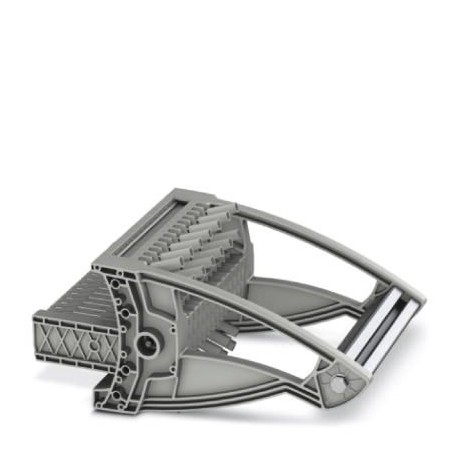

FTP 12+1 3069255 PHOENIX CONTACT Test plug, Connection method: Screw connection, Color: gray View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

FTP 12+1 3069255 PHOENIX CONTACT Test plug, Connection method: Screw connection, Color: gray

FTP 12+1

3069255

PHOENIX_CONTACT

Available

Ship on today

Test plug, Connection method: Screw connection, Color: gray

More details


CLIPLINE 1 rail terminals - PHOENIX CONTACT

Industry solutions

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

Quantity Price
1+$352.84
2+$343.34
3+$340.81
*This price is per unit and is the net value (not including taxes if applicable).

Related products

More info



General

Number of levels1
Nominal cross section6 mm²
Colorgray
Insulating materialPA
Flammability rating according to UL 94V0

General

Maximum load current24 A
Rated surge voltage4 kV
Overvoltage categoryIII
Insulating material groupI
Maximum load current24 A
Nominal current IN24 A
Nominal voltage UN400 V
Open side panelnein
Number of positions13

Connection data

NoteThe conductor cross section depends on the cable lug used
Connection methodScrew connection
Conductor cross section flexible min.0.5 mm²
Conductor cross section flexible max.2.5 mm²
Min. AWG conductor cross section, flexible20
Max. AWG conductor cross section, flexible14

Assembly

Mounting typeInsertion in base strip
Min. tightening torque of the test socket screw:0.5 Nm
Max. tightening torque of the test socket screw:0.6 Nm

Datasheet - PDF

Title: Language: Size: Type:
PHOENIX CONTACT-3069255-FTP 12+1 English 111 Kbytes PHOENIX CONTACT-3069255-FTP 12+1
