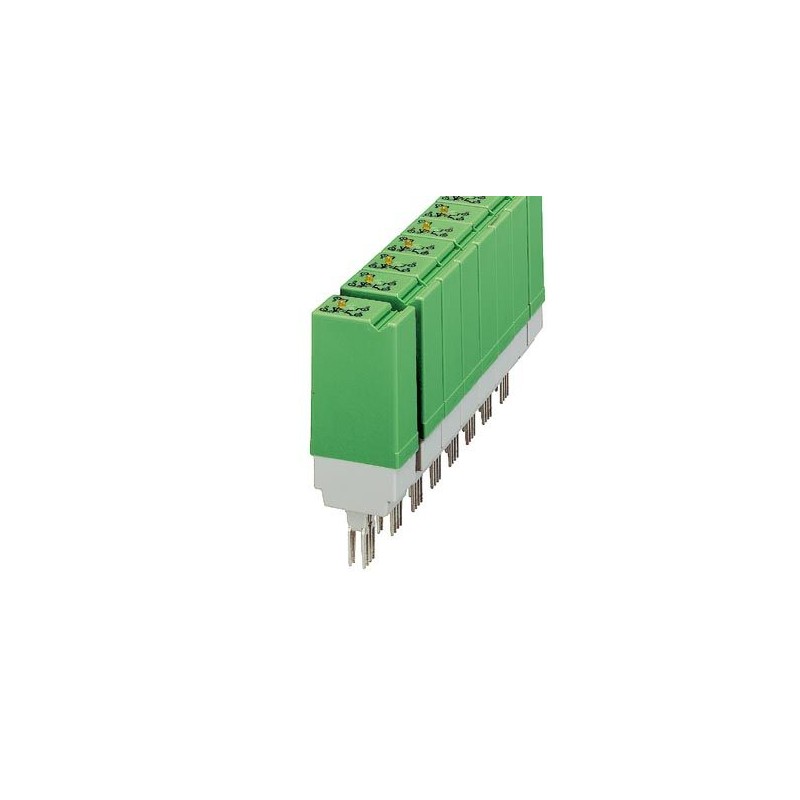

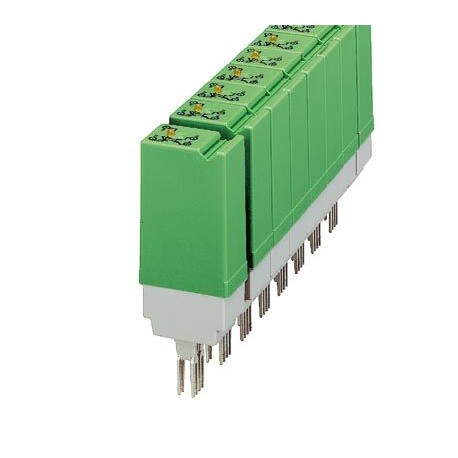

ST-OV3- 24DC/ 60DC/3 2903228 PHOENIX CONTACT Solid-state relays
ST-OV3- 24DC/ 60DC/3
2903228
PHOENIX_CONTACT
Solid-state relays
Industrial Relays
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2903228 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 92 (IF-2005) |
| GTIN | 4017918079000 |
| Weight per Piece (excluding packing) | 55.050 g |
| Custom tariff number | 85364190 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Input data
| Nominal input voltage UN | 24 V DC |
|---|---|
| Input voltage range in reference to UN | 0.8 ... 1.2 |
| Input voltage range | 19.2 V DC ... 28.8 V DC |
| Switching threshold "0" signal in reference to UN | ≤ 0.4 |
| Switching threshold "1" signal in reference to UN | ≥ 0.8 |
| Typical input current at UN | 7 mA |
| Typical response time | 20 µs |
| Typical turn-off time | 200 µs |
| Transmission frequency | 500 Hz |
Output data
| Output voltage range | 12 V DC ... 60 V DC |
|---|---|
| Limiting continuous current | 3 A (see derating curve) |
| Surge current | 5 A (t = 1 s) |
| Peak offstate voltage | 70 V DC (Collector-emitter reverse voltage) |
| Voltage drop at max. limiting continuous current | 1.2 V |
| Output circuit | 2-wire, floating |
| Type of protection | Reverse polarity protection |
| Surge protection | |
| Protective circuit/component | Polarity protection diode |
General
| Test voltage input/output | 2.5 kV AC |
|---|---|
| Mounting position | any |
| Standards/regulations | IEC 60664 |
| IEC 60664A | |
| DIN VDE 0110 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX INTERFACE TECHNOLOGY AND SWITCHING DEVICES EN.pdf | 27 Mbytes |
|
