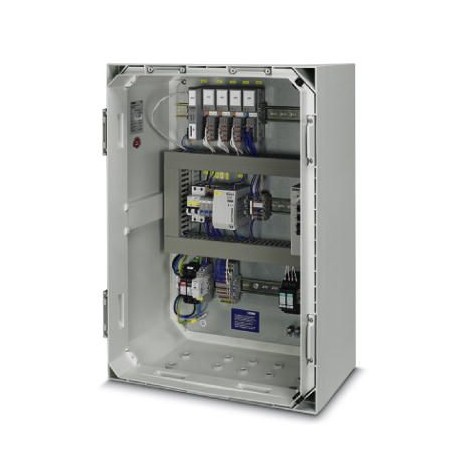

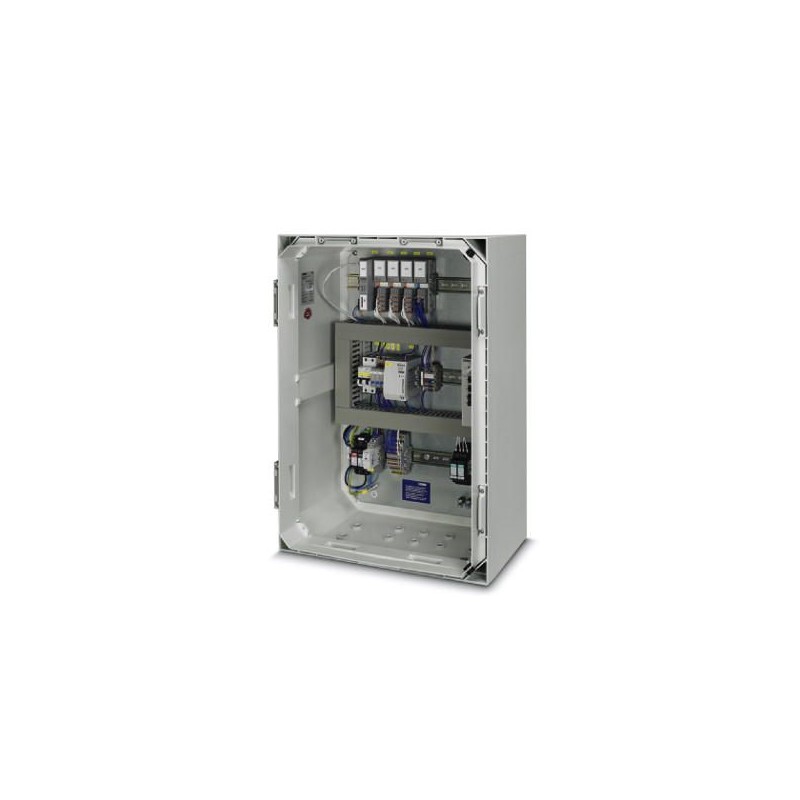

SOL-SC-ARRAY-CTR
2400309
PHOENIX_CONTACT
1
Switching device combination
Industry Solutions (IS)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Orderkey | 2400309 |
---|---|
Packing unit | 1 pc |
Note | Made to Order (non-returnable) |
GTIN | 4055626012612 |
Weight per Piece (excluding packing) | 22,220.000 g |
Material cover/door | Polycarbonate (with PUR seal) |
---|---|
Weight | approx. 19 kg |
Installation location | Outdoor installation, covered area |
Degree of protection | IP65 |
Protection class | I, IEC 61140, EN 61140, VDE 0140-1 |
Ambient temperature (operation) | -15 °C ... 49 °C |
---|---|
Ambient temperature (storage/transport) | -20 °C ... 55 °C |
Air pressure (operation) | 70 kPa ... 106 kPa |
Air pressure (storage/transport) | 580 hPa ... 106 kPa |
Permissible humidity (operation) | 5 % ... 95 % |
Permissible humidity (storage/transport) | 5 % ... 95 % |
Shock (operation) | 5g |
Vibration (operation) | 30g (11 ms period, half-sine shock pulse, according to IEC 60068-2-27) |
Nominal power | 0.1 kW |
---|---|
Nominal current IN | 1 A (at 230 V, 50 Hz) |
Nominal voltage UN | 230 V AC (1/N/PE) |
Nominal output current (IN) | 6 A |
Output voltage | 230 V |
Control voltage | 24 V DC |
Recommended backup fuse for 230 V AC | 16 A (Characteristic B, 1-pos.) |
Protection | 2 A (at 24 V) |
Recommended backup fuse | 16 A (Characteristic B, 1-pos.) |
Vibration (operation) | 30g (11 ms period, half-sine shock pulse, according to IEC 60068-2-27) |
---|---|
Shock (operation) | 5g |
