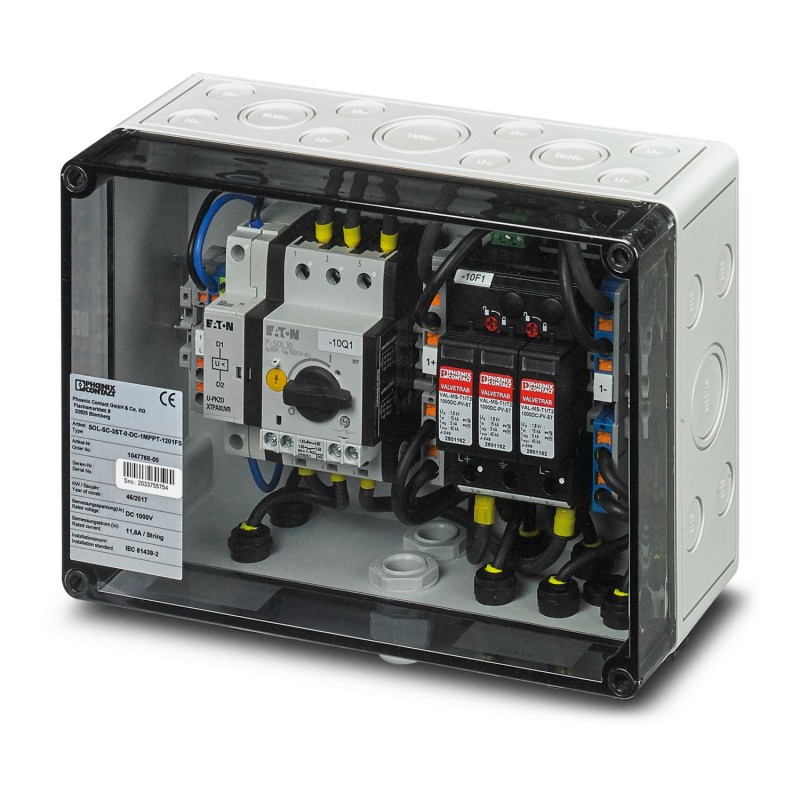

SOL-SC-3ST-0-DC-1MPPT-1201FS 1047768 PHOENIX CONTACT Switching device combination
SOL-SC-3ST-0-DC-1MPPT-1201FS
1047768
PHOENIX_CONTACT
Switching device combination
String box for photovoltaic installations up to 1000 V DC for the connection of 1x 3 strings. With surge protection (type 1/2), DC fire load disconnector and SUNCLIX DC connector for the input and output side
Industry Solutions (IS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1047768 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626649054 |
| Weight per Piece (excluding packing) | 2,400.000 g |
| Custom tariff number | 85363030 |
| Country of origin | DE (Germany) |
System parameter
| System voltage | 1000 V DC (Umax) |
|---|---|
| Number of string inputs | 3 |
| Number of outputs | 1 |
| Number of supported MPP trackers | 1 |
| Switching capacity | 30 A (1000 V) |
Safety equipment
| Surge protective device | T1 / T2 |
|---|---|
| Protection level Up | ≤ 3.5 kV |
| Total discharge current Itotal(8/20) µs | 40 kA |
| Total discharge current Itotal(10/350) µs | 5 kA |
Cable entry
| Type of cable entry | SUNCLIX |
|---|---|
| Cable cross section string input | 2.5 mm² ... 6 mm² |
| Cable cross section output | 6 mm² ... 16 mm² |
| Cable cross section grounding | 16 mm² |
| Sealing area grounding | 6 mm ... 12 mm |
| Cable cross section emergency stop | 3x 0.14 mm² ... 2.5 mm² |
| Sealing area emergency stop | 6 mm ... 12 mm |
General data
| Housing material | Polycarbonate |
|---|---|
| Material cover/door | Polycarbonate (transparent) |
| Degree of protection | IP65 |
| Protection class | II |
Classifications
