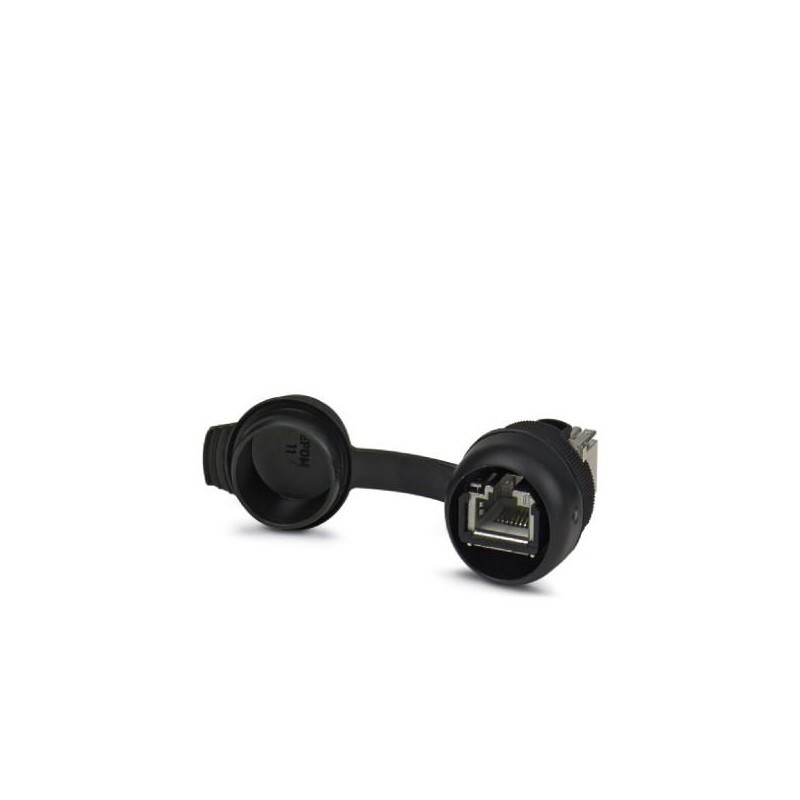

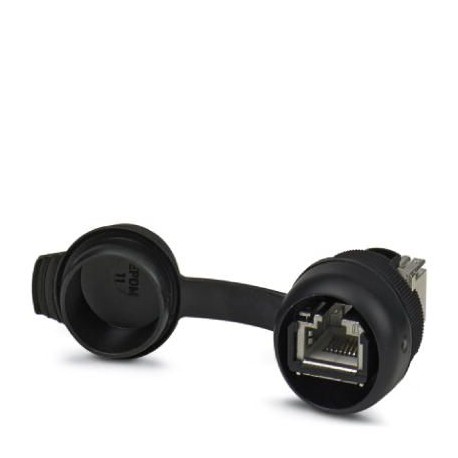

SI-RND-R1A 1425186 PHOENIX CONTACT Data interface
SI-RND-R1A
1425186
PHOENIX_CONTACT
Data interface
Service connection with RJ45 (female connector/female connector), 8 metal poles, CAT6A connection, with protective cap
Connectors > Modular connector (industrial connector)
Industrial plug-in connectors/interfaces
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1425186 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626386706 |
| Weight per Piece (excluding packing) | 22.220 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Mechanical characteristics
| Number of positions | 8 |
|---|---|
| Connection profile | RJ45 |
| Insertion/withdrawal cycles | ≥ 750 |
| Type of contact | Socket |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 70 °C |
|---|---|
| Degree of protection | IP65 (with closed protective cover) |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Housing material | PA |
| Contact material | Copper alloy |
| Contact surface material | gold-plated |
| Height | 42.7 mm |
Electrical characteristics
| Number of positions | 8 |
|---|---|
| GRP transmission properties | CAT6A |
| Transmission speed | 10 Gbps (RJ45 (socket/socket), 8-pos.) |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Width (EF000008) | 29.5 mm |
| Height (EF000040) | 42.7 mm |
| Material (EF002169) | Other |
| Surface finishing (EF006569) | Other |
