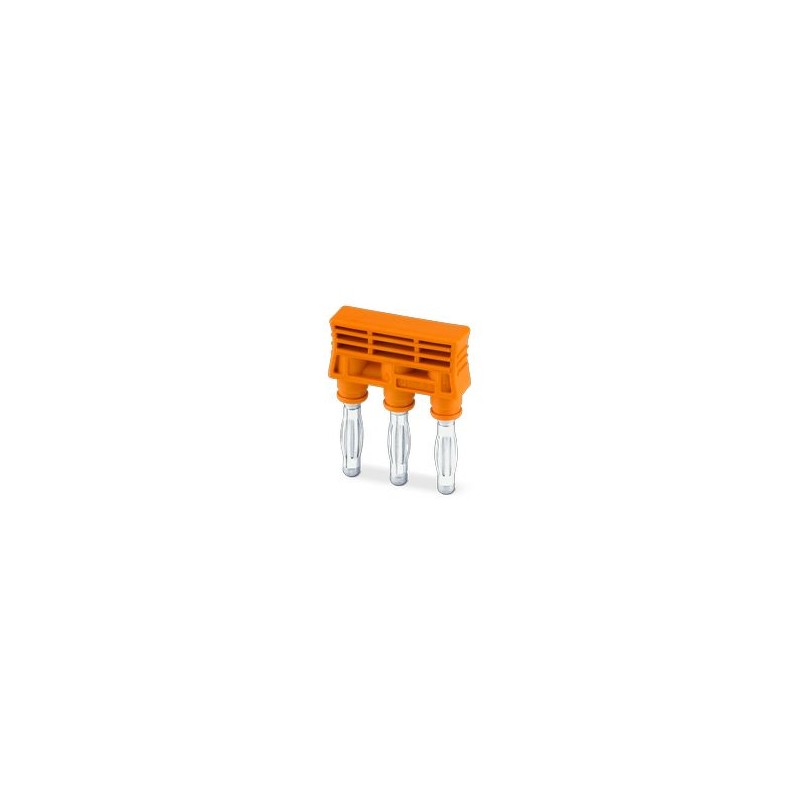

SCP 3-10 3070413 PHOENIX CONTACT Short Circuit Connector
SCP 3-10
3070413
PHOENIX_CONTACT
10
Short Circuit Connector
Short-circuit connector, pitch: 10.15 mm, number of positions: 3, color: orange
Modular TBs
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲More info
▲Technical data
Notes
| General | The SCP short-circuit plugs are designed for short-circuiting adjacent test-disconnect terminal blocks. They can be used as temporary current transformer short-circuiting options for maintenance and commissioning tasks on measuring and safety equipment in power generation systems. Connecting or disconnecting short-circuit plugs is only permitted while the power supply and all loads are disconnected. |
Product properties
| Product type | Short-circuit connector |
| Number of positions | 3 |
| Pitch | 10.15 mm |
Electrical properties
| Rated voltage | 60 V DC |
| 30 V AC |
Dimensions
| Pin diameter | 4.00 mm |
| Pitch | 10.15 mm |
Material specifications
| Color | orange |
| Material | Copper |
| Flammability rating according to UL 94 | V2 |
| Insulating material | PA |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -60 °C ... 105 °C |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Mounting
| Mounting type | Plug-in mounting |
Datasheet - PDF
