SCP 2-10
3070412
PHOENIX_CONTACT
10

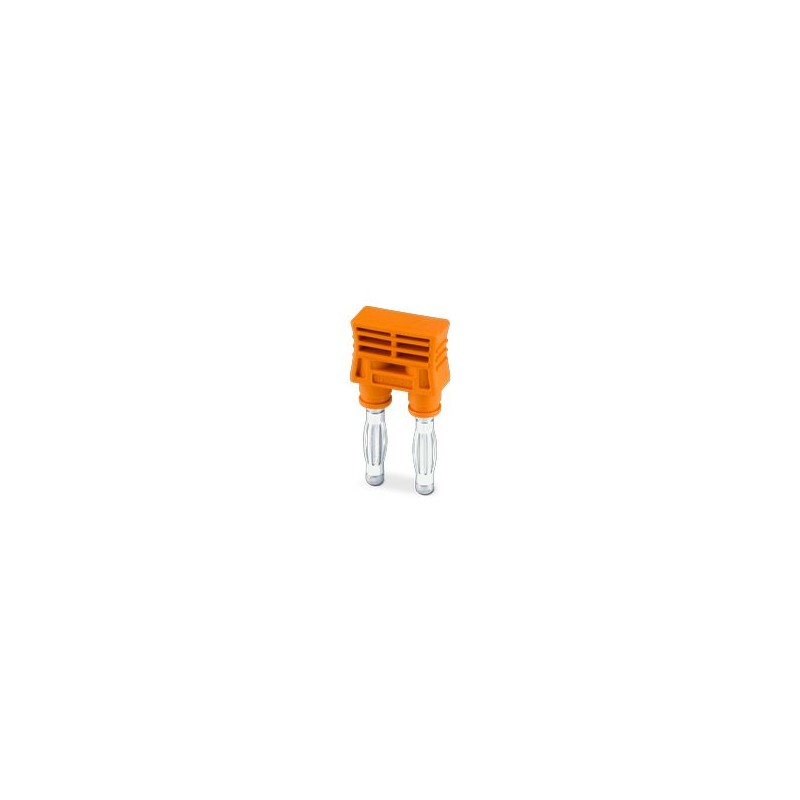

Short Circuit Connector
Short-circuit connector, pitch: 10.15 mm, number of positions: 2, color: orange
Modular TBs
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
General | The SCP short-circuit plugs are designed for short-circuiting adjacent test-disconnect terminal blocks. They can be used as temporary current transformer short-circuiting options for maintenance and commissioning tasks on measuring and safety equipment in power generation systems. Connecting or disconnecting short-circuit plugs is only permitted while the power supply and all loads are disconnected. |
Product type | Short-circuit connector |
Number of positions | 2 |
Pitch | 10.15 mm |
Rated voltage | 60 V DC |
30 V AC |
Pin diameter | 4.00 mm |
Pitch | 10.15 mm |
Color | orange |
Material | Copper |
Flammability rating according to UL 94 | V2 |
Insulating material | PA |
Ambient conditions | |
Ambient temperature (operation) | -60 °C ... 105 °C |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C |
Permissible humidity (storage/transport) | 30 % ... 70 % |
Mounting type | Plug-in mounting |
