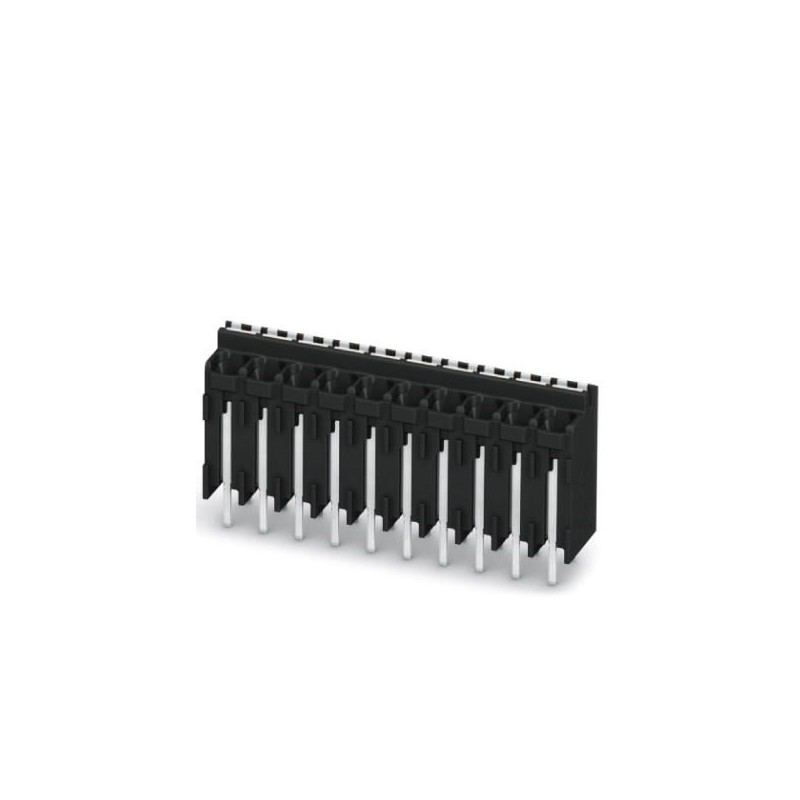

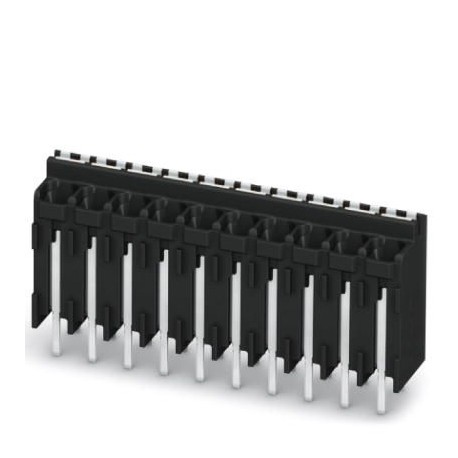

SAMPLE SPT-THR 1,5/12-V-3,81
1843100
PHOENIX_CONTACT
5
Sample set
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Orderkey | 1843100 |
---|---|
Packing unit | 5 pc |
Minimum order quantity | 5 pc |
Note | Made to Order (non-returnable) |
GTIN | 4046356949897 |
Weight per Piece (excluding packing) | 6.370 g |
Custom tariff number | 85369010 |
Country of origin | DE (Germany) |
Brief article description | PCB terminal block |
---|---|
Range of articles | SPT 1,5/..-V-THR |
Pitch | 3.81 mm |
Number of positions | 12 |
Connection method | Push-in spring connection |
Mounting type | THR soldering |
Pin layout | Linear double pinning |
Number of levels | 1 |
Rated current | 13.5 A |
---|---|
Rated insulation voltage (III/2) | 160 V |
Rated surge voltage (III/2) | 2.5 kV |
Conductor cross section solid | 0.2 mm² ... 1.5 mm² |
---|---|
Conductor cross section flexible | 0.2 mm² ... 1.5 mm² |
Conductor cross section AWG / kcmil | 24 ... 16 |
Conductor cross section flexible, with ferrule without plastic sleeve | 0.2 mm² ... 1.5 mm² |
Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.2 mm² ... 0.75 mm² |
Stripping length | 8 mm |
Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
---|---|
Contact material | Cu alloy |
Surface characteristics | hot-dip tin-plated |
Metal surface terminal point (top layer) | Tin (4 - 8 µm Sn) |
Metal surface soldering area (top layer) | Tin (4 - 8 µm Sn) |
Insulating material | LCP |
---|---|
Insulating material group | IIIa |
CTI according to IEC 60112 | 175 |
Flammability rating according to UL 94 | V0 |
Dimensional drawing | |
---|---|
Length [ l ] | 7.7 mm |
Width [ w ] | 45.91 mm |
Height [ h ] | 15.6 mm |
Pitch | 3.81 mm |
Height (without solder pin) | 13.6 mm |
Solder pin [P] | 2 mm |
Pin spacing | 5.5 mm |
Pin dimensions | 0.7 x 0.3 mm |
Dimension a | 41.91 mm |
Type of packaging | packed in cardboard |
---|---|
Pieces per package | 5 |
Denomination packing units | Pcs. |
Ambient temperature (storage/transport) | -40 °C ... 70 °C |
---|---|
Ambient temperature (assembly) | -5 °C ... 100 °C |
Ambient temperature (operation) | -40 °C |
Pull-out test | IEC 60998-2-2:2002-12 |
---|---|
Test passed | |
Conductor cross section / conductor type / tensile force | 0.2 mm² / solid / > 10 N |
0.2 mm² / flexible / > 10 N | |
1.5 mm² / solid / > 40 N | |
1.5 mm² / flexible / > 40 N |
Rated current | 13.5 A |
---|---|
Rated insulation voltage (III/2) | 160 V |
Rated surge voltage (III/2) | 2.5 kV |
Insulating material group | IIIa |
---|---|
Voltage | 160 V |
Rated insulation voltage (III/3) | 160 V |
Rated insulation voltage (III/2) | 160 V |
Rated insulation voltage (II/2) | 320 V |
Rated surge voltage (III/3) | 2.5 kV |
Rated surge voltage (III/2) | 2.5 kV |
Rated surge voltage (II/2) | 2.5 kV |
Resistance to ageing, to humidity conditions, to ingress of solid objects and to harmful ingress of water | Test passed IEC 60998-1:2002-12 168 h/100°C 48 h/30 °C/92 % |
---|---|
Test result | Test passed |
Test specification | IEC 60998-1:2002-12 |
Dry heat | 168 h/100°C |
Humid heat | 48 h/30 °C/92 % |
Test result | Test passed |
---|---|
Test specification | IEC 60998-1:2002-12 |
Dry heat | 168 h/100°C |
Humid heat | 48 h/30 °C/92 % |
Connection in acc. with standard | EN-VDE |
---|---|
Flammability rating according to UL 94 | V0 |
China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
---|---|
No hazardous substances above threshold values |
