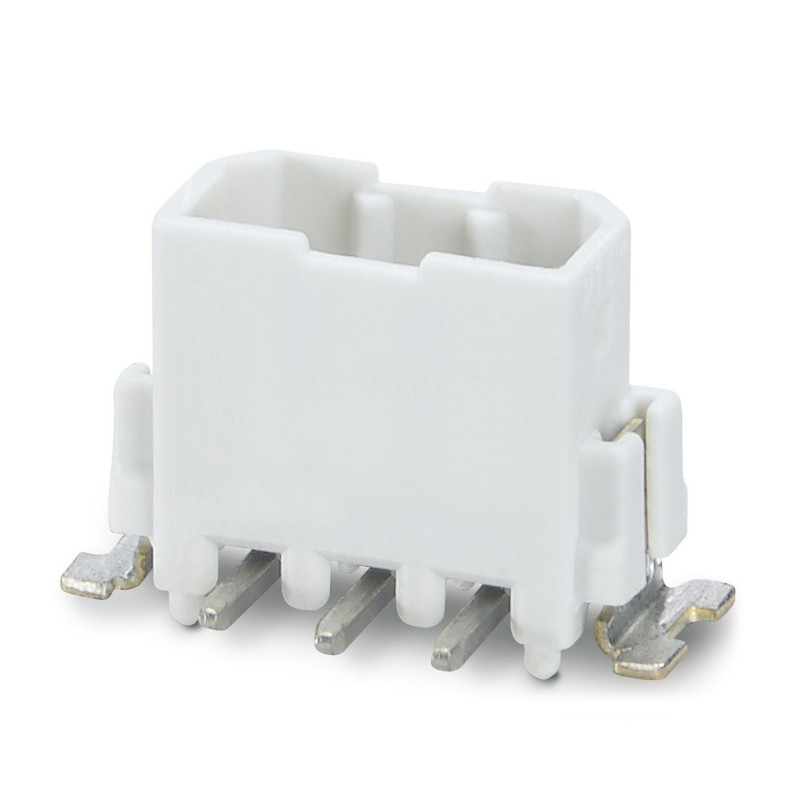

SAMPLE PTSM 0,5/ 8-HV0..SMD WH 1839318 PHOENIX CONTACT Sample set
SAMPLE PTSM 0,5/ 8-HV0..SMD WH
1839318
PHOENIX_CONTACT
5
Sample set
Printed circuit board base housing, nominal section: 0.5 mm², color: white signals, nominal current: 6 A, dimensioning voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 8, number of rows: 1, number of poles: 8, number of connections: 8, family of articles: PTSM 0.5/.. -HV-SMD WH, pitch: 2.5 mm, mounting: SMD soldering, pin arrangement: Linear pad geometry, number of solder pins per potential: 1, plug-in system: COMBICON COMPACT PTSM, Plug-in face orientation: Standard, Locking: without, fixing type: without, packaging type: boxed
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1839318 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626045702 |
| Weight per Piece (excluding packing) | 1.870 g |
| Custom tariff number | 85366930 |
| Country of origin | DE (Germany) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
