PHOENIX CONTACT PCB Connectors (PCC)SAMPLE PTSM 0,5/ 3-HTB...SMDWH 1847148 PHOENIX CONTACT Sample set

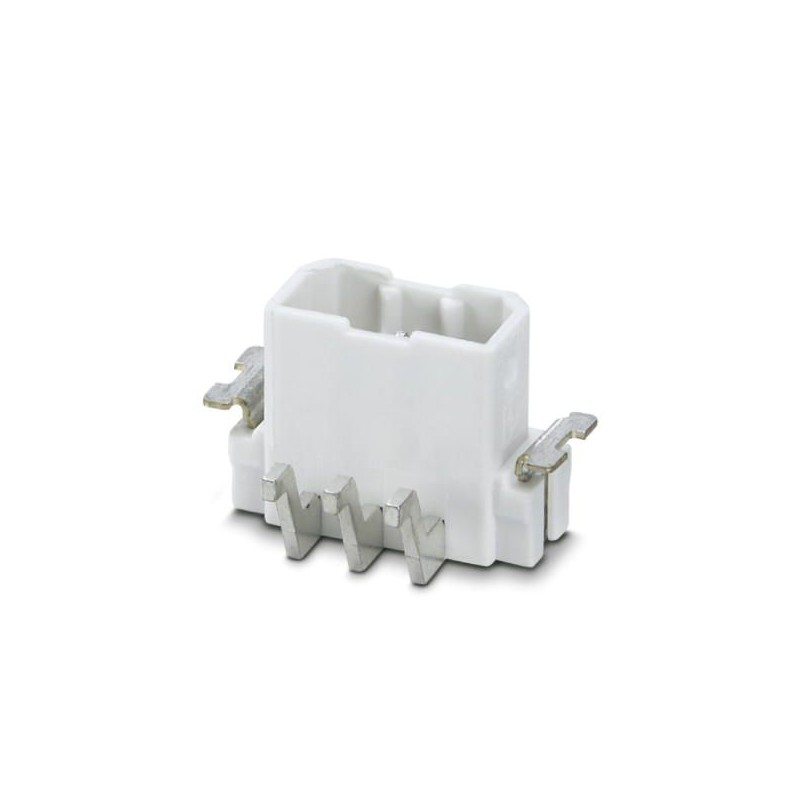

PHOENIX CONTACT SAMPLE PTSM 0,5/ 3-HTB...SMDWH 1847148 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

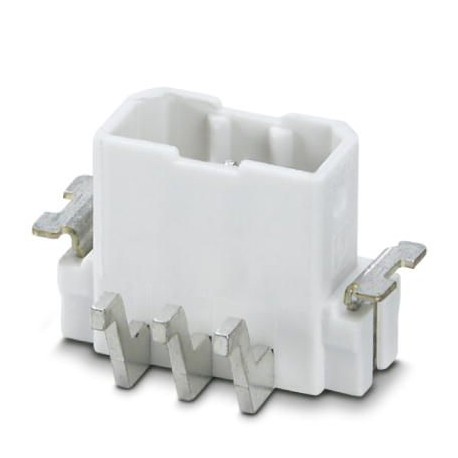

SAMPLE PTSM 0,5/ 3-HTB...SMDWH 1847148 PHOENIX CONTACT Sample set

Reference: SAMPLE PTSM 0,5/ 3-HTB...SMDWH

Code: 1847148

Manufacturer: PHOENIX CONTACT

Description:

Sample set
Printed circuit board base housing, nominal section: 0.5 mm², color: white signals, nominal current: 6 A, dimensioning voltage (III/2): 160 V, contact surface: Tin, contact type: Male, number of potentials: 3, number of rows: 1, number of poles: 3, number of connections: 3, family of articles: PTSM 0.5/.. -HTB-SMD WH, pitch: 2.5 mm, mounting: SMD soldering, pin arrangement: Linear pad geometry, number of solder pins per potential: 1, plug-in system: COMBICON COMPACT PTSM, Plug-in face orientation: Standard, Locking: without, fixing type: without, packaging type: boxed

Categories:

  • PHOENIX CONTACT > PCB Connectors (PCC)

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX CONTACT

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

Key Commercial Data

Orderkey1847148
Packing unit5 pc
Minimum order quantity5 pc
NoteMade to Order (non-returnable)
GTIN4055626003115
Weight per Piece (excluding packing)1.000 g
Custom tariff number85366930
Country of originDE (Germany)

Dimensions

Length [ l ]9.5 mm
Width12.2 mm
Pitch2.5 mm
Dimension a5 mm
Width [ w ]12.2 mm
Height [ h ]8.2 mm
Height8.2 mm
Length9.5 mm

General

Range of articlesPTSM 0,5/..-HTB-SMD WH
Insulating material groupI
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)125 V
Rated voltage (III/2)160 V
Rated voltage (II/2)250 V
Nominal current IN6 A
Maximum load current6 A
Insulating materialHT PA
Flammability rating according to UL 94V0
Colorwhite
Number of positions3

Standards and Regulations

Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
