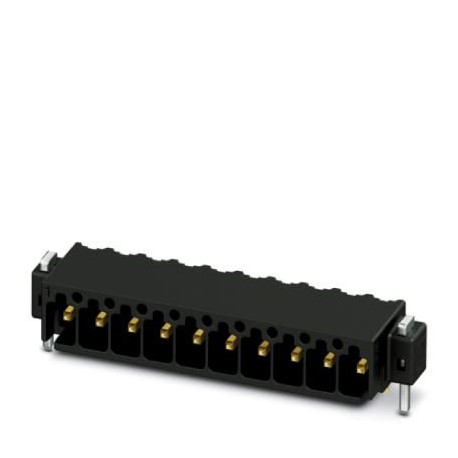

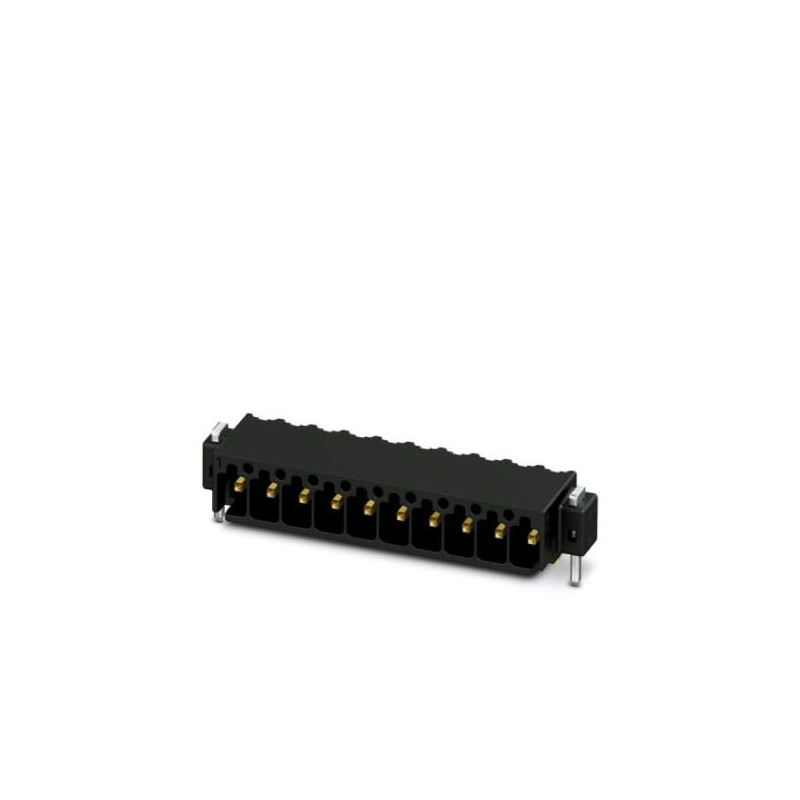

SAMPLE MC 0,5/14-G-2,54P20 THR 1859385 PHOENIX CONTACT Sample set
SAMPLE MC 0,5/14-G-2,54P20 THR
1859385
PHOENIX_CONTACT
5
Sample set
Printed circuit board base housing, nominal section: 0.5 mm², color: black, nominal current: 6 A, nominal voltage (III/2): 160 V, contact surface: Gold, contact type: Male, number of potentials: 11, number of rows: 1, number of poles: 11, number of connections: 11, family of articles: MC 0.5/.. -G-THR, pitch: 2.54 mm, mounting: Solder THR, pin arrangement: Linear pin arrangement, pin length [P]: 2 mm, number of solder pins per potential: 1, pluggable system: COMBICON FMC 0.5, Pluggable face orientation: Standard, locking: without, fixing type: without, packaging type: boxed, Sample quantities available under SAMPLE MC...
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1859385 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626082851 |
| Weight per Piece (excluding packing) | 2.650 g |
| Custom tariff number | 85366930 |
| Country of origin | DE (Germany) |
Dimensions
| Length [ l ] | 7.1 mm |
|---|---|
| Width | 40.1 mm |
| Pitch | 2.54 mm |
| Dimension a | 33.02 mm |
| Width [ w ] | 40.1 mm |
| Height [ h ] | 4.8 mm |
| Height | 4.85 mm |
| Length of the solder pin | 2 mm |
| Pin dimensions | 0.64 x 0.64 mm |
| Length | 7.1 mm |
General
| Range of articles | MC 0,5/..-G-THR |
|---|---|
| Insulating material group | IIIa |
| Rated voltage (III/3) | 32 V |
| Rated voltage (III/2) | 160 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 6 A |
| Flammability rating according to UL 94 | V0 |
| Color | black |
| Number of positions | 11 |
Standards and Regulations
| Connection in acc. with standard | EN-VDE |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
