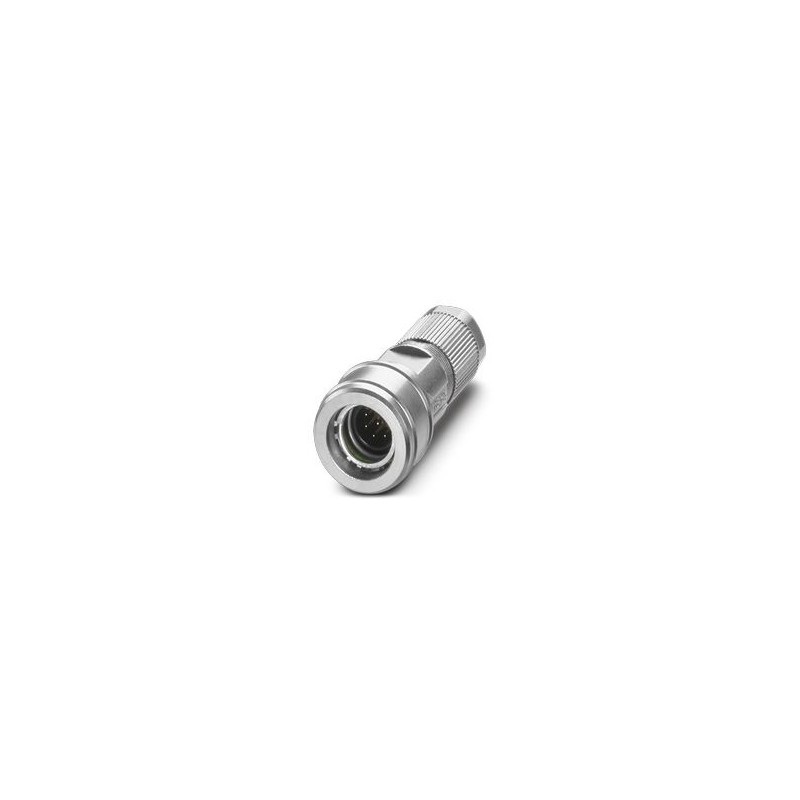

SACC-PO12MS-8CT-CM SH 1319944 PHOENIX CONTACT Connector, Universal, 8-pole, shielded, M12 straight male conn..
SACC-PO12MS-8CT-CM SH
1319944
PHOENIX_CONTACT
Connector, Universal, 8-pole, shielded, M12 straight male connector Push-Pull outer lock, coding: A, Crimp connection, knurling material: PA 6.6, cable outer diameter 4.5 mm ... 7.5 mm, no crimped contacts
Connector, Universal, 8-pole, shielded, M12 Push-Pull Straight Male Connector, A-Coded, Crimped Connection, Knurling Material: PA 6.6, Cable Outer Diameter 4.5 mm ... 7.5 mm, no crimped contacts
Connector, Universal, 8-position, shielded, Plug straight M12 Push-Pull, coding: A, Crimp connection, knurl material: PA 6.6, external cable diameter 4.5 mm ... 7.5 mm, without crimp contacts
Connectors > Circular connector for field assembly (industrial connector)
QUICKON Installation System (QPD)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| General | NOTE:Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g. by using cable ties. |
| Assembly instructions | Contacts can be clipped in place and unclipped without tools |
| Connection method | Crimp connection |
| Product type | Circular connector (cable-side) |
| Sensor type | Universal |
| Number of positions | 8 |
| No. of cable outlets | 1 |
| Shielded | yes |
| Coding | A |
| Cable outlet | straight |
| Insulation characteristics | |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Dimensional drawing |  |
| Length | 44 mm |
| Wrench size, union nut | 15 mm |
| Wrench size, counter nut | 14 mm |
| External dimensions | |
| Outside diameter | 4.5 mm ... 7.5 mm |
| Housing | |
| Diameter housing | 22 mm |
| Flammability rating according to UL 94 | V0 |
| Seal material | NBR |
| Material of grip body | Zinc die-cast, nickel-plated |
| Material for screw connection | PA 6.6 |
| Conductor connection | |
| Connection method | Crimp connection |
| Connection cross section | 0.14 mm² ... 0.34 mm² (flexible) |
| Connection cross section AWG | 26 ... 22 (flexible) |
| Stripping length of the individual wire | 4 mm +0,5 mm |
| Tightening torque | 4 Nm (Pressure nut with coupling sleeve) |
| Rated surge voltage | 0.8 kV |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 30 V AC |
| 30 V DC | |
| Nominal current IN | 2 A |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 100 |
| Connection 1 | |
| Head design | Plug |
| Head cable outlet | straight |
| Head thread type | M12 |
| Head locking type | Push-Pull |
| Coding | A |
| Signal type/category | Universal |
| Stripping length of the individual wire | 4 mm +0,5 mm |
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 85 °C (Plug / socket) |
| Standard designation | M12 connector |
| Standards/specifications | IEC 61076-2-101 |
| Note | In line with |
| Standard designation | Shock, vibration |
| Standards/specifications | EN 50155:2001 |
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Other |
| Number of data contacts (EF012232) | 0 |
| Number of power contacts (EF012216) | 0 |
| Number of control contacts (EF012217) | 8 |
| For cable outer diameter (EF009475) | 4.5 mm |
| Type of housing (EF006980) | Straight |
| Rated current In (EF008250) | 2 A |
| Ambient temperature (EF002386) | -40 °C |
| Rated voltage (EF000228) | 30 V |
| Over voltage category (EF006785) | II |
| Pollution degree (EF006786) | 3 |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.14 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.14 mm² |
| Connectable conductor cross section solid-core (EF007337) | 0.14 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.14 mm² |
| Type of electric connection (EF003961) | Crimp connection |
| Material of contact surface (EF004020) | Other |
| Housing material (EF001596) | Other |
| Coating housing (EF001601) | Other |
| Material thread ring (EF012304) | Other |
| Type of locking (EF000208) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| With protective conductor (EF007468) | No |
| Degree of protection (IP), mounted (EF007466) | IP65 |
| Min. number of insertion cycles (EF012212) | 100 |
| Screened (EF000881) | Yes |
| With status indication (EF001602) | No |
