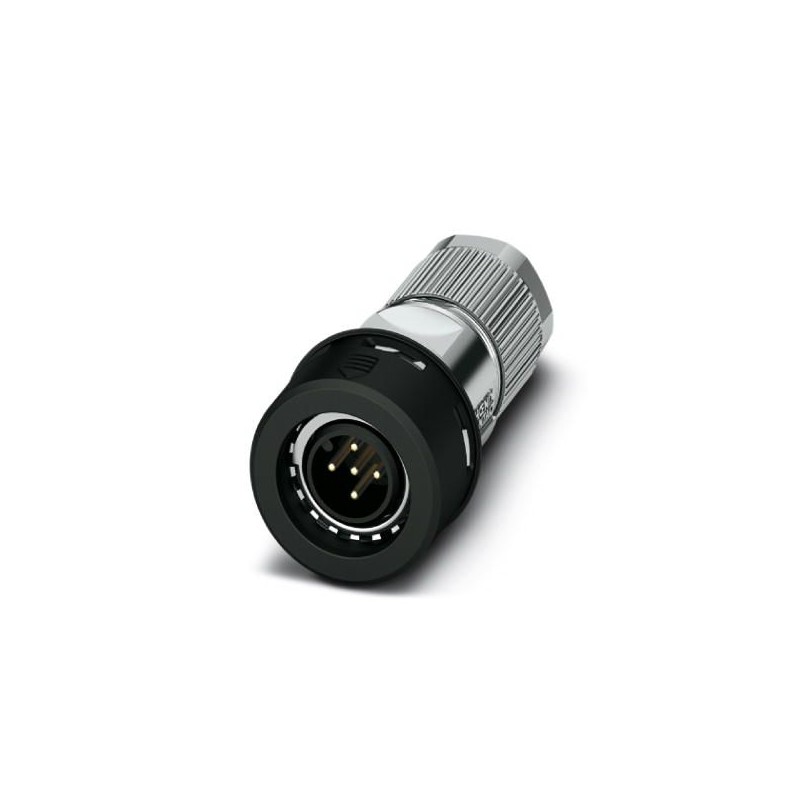

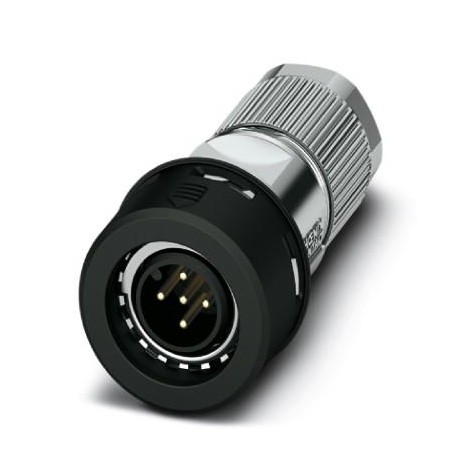

SACC-PO12MS-5CT-CM SH 1021815 PHOENIX CONTACT Connector
SACC-PO12MS-5CT-CM SH
1021815
PHOENIX_CONTACT
Connector
Connector, Universal, 5-pole, shielded, M12 Push-Pull straight male connector, A-coded, crimped connection, knurling material: PA 6.6, cable outer diameter 4.5 mm ... 7.5 mm, no crimped contacts
Connectors > Circular connector for field assembly (industrial connector)
QUICKON Installation System (QPD)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1021815 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626514642 |
| Weight per Piece (excluding packing) | 29.800 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Dimensions
| Wrench size, union nut | 15 mm |
|---|---|
| Diameter housing | 22 mm |
| Length | 44 mm |
| External cable diameter | 4.5 mm ... 7.5 mm |
| Stripping length of the sheath | 18 mm |
| Stripping length of the individual wire | 4 mm +0,5 mm |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 85 °C (Plug / socket) |
|---|---|
| Degree of protection | IP65 |
| IP67 | |
| IP68 | |
| IP69K |
General
| Rated current at 40°C | 4 A |
|---|---|
| Rated voltage | 60 V DC |
| 48 V AC | |
| Number of positions | 5 |
| Insulation resistance | ≥ 100 Ω |
| Coding | A - standard |
| Standards/regulations | M12 connector IEC 61076-2-101 In line with |
| Shock, vibration EN 50155:2001 | |
| Signal type/category | Universal |
| Status display | No |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Connection method | Crimp connection |
| Conductor cross section | 0.34 mm² ... 1 mm² (flexible) |
| Conductor cross section AWG | 22 ... 18 (flexible) |
| Wire diameter incl. insulation | ≤ 2.55 mm (Contact 5 up to max. 2.0 mm) |
| Insertion/withdrawal cycles | ≥ 100 |
| Torque | 4 Nm (Pressure nut with coupling sleeve) |
Material
| Flammability rating according to UL 94 | V0 |
|---|---|
| Contact carrier material | PA 6.6 |
| Material of grip body | Zinc die-cast, nickel-plated |
| Material, knurls | PA 6.6 |
| Sealing material | NBR |
| Standards/regulations | PA 6.6: Fire protection in rail vehicles - requirement sets R22, R23, R24, and R26 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
Cable
| Standards/specifications | M12 connector IEC 61076-2-101 In line with |
|---|---|
| Shock, vibration EN 50155:2001 |
Standards and Regulations
| Standard designation | M12 connector |
|---|---|
| Standards/regulations | IEC 61076-2-101 |
| Standard designation | Shock, vibration |
| Standards/regulations | EN 50155:2001 |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Other |
| Diameter connector (EF007496) | 21.9 mm |
| Number of data contacts (EF012232) | 0 |
| Number of power contacts (EF012216) | 0 |
| Number of control contacts (EF012217) | 5 |
| For cable outer diameter (EF009475) | 4.5 mm |
| Type of housing (EF006980) | Straight |
| Rated current In (EF008250) | 4 A |
| Ambient temperature (EF002386) | -40 °C |
| Rated voltage (EF000228) | 48 V |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 3 |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.14 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.14 mm² |
| Connectable conductor cross section solid-core (EF007337) | 0.14 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.14 mm² |
| Type of electric connection (EF003961) | Crimp connection |
| Material of contact surface (EF004020) | Other |
| Housing material (EF001596) | Other |
| Coating housing (EF001601) | Other |
| Material thread ring (EF012304) | Other |
| Type of locking (EF000208) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| With protective conductor (EF007468) | No |
| Degree of protection (IP), mounted (EF007466) | IP65 |
| Min. number of insertion cycles (EF012212) | 100 |
| Screened (EF000881) | Yes |
| With status indication (EF001602) | No |
