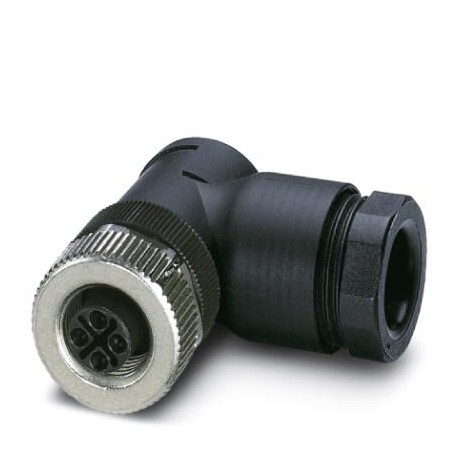

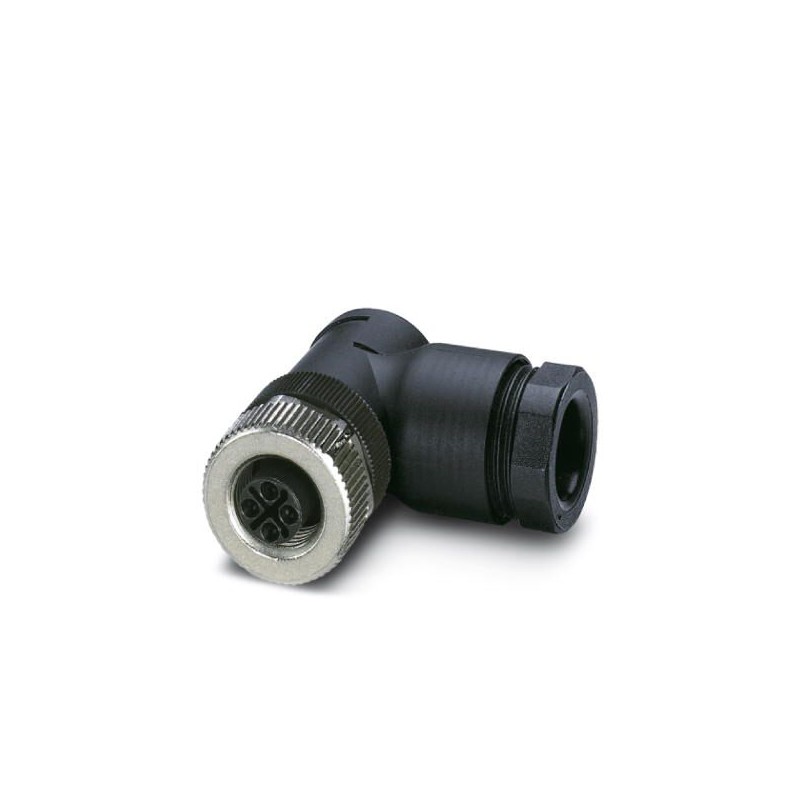

SACC-M12FRS-3PECON-PG 9-M 1107272 PHOENIX CONTACT Power connectors, 4-position, Socket angled M12, S-coded, ..
SACC-M12FRS-3PECON-PG 9-M
1107272
PHOENIX_CONTACT
Power connectors, 4-position, Socket angled M12, S-coded, Screw connection, knurl material: Zinc die-cast, nickel-plated, cable gland Pg9, external cable diameter 6 mm ... 8 mm, for AC current up to 12 A/630 V
Power connector, 4-pole, Elbow connection female M12, S, Screw connection, knurling material: Zinc die-cast, nickel-plated, Pg9 cable gland, cable diameter 6 mm ... 8 mm, for alternating current up to 12 A/630 V
Connectors > Circular connector for field assembly (industrial connector)
QUICKON Installation System (QPD)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1107272 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4063151008901 |
| Weight per Piece (excluding packing) | 0.000 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Dimensions
| Wrench size, union nut | 16 mm |
|---|---|
| Diameter housing | 20 mm |
| Length | 35 mm |
| External cable diameter | 6 mm ... 8 mm |
| Stripping length of the sheath | 20 mm |
| Stripping length of the individual wire | 5 mm |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 85 °C (Plug / socket) |
|---|---|
| Degree of protection | IP67 |
General
| Note | Strip 21 mm off the cable sheath, strip 6 mm off the conductor insulation, crimp the ferrule, then shorten this to 5 mm. Conductor length with shortened ferrule: 20 mm. Connect conductors and tighten the mounting screws with 0.2 Nm. |
|---|---|
| NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g. by using cable ties. | |
| Rated current at 40°C | 12 A (when using 1.5 mm² conductors) |
| 12 A (at 40 °C) | |
| Rated voltage | 630 V AC |
| Number of positions | 4 |
| Color handle area | black |
| Insulation resistance | > 10 GΩ |
| Coding | S power |
| Standards/regulations | M12 connector IEC 61076-2-111 |
| Status display | No |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Connection method | Screw connection |
| Conductor cross section | 0.75 mm² ... 1.5 mm² (without ferrule) |
| 0.75 mm² ... 1.5 mm² (with ferrule) | |
| 0.75 mm² ... 1.5 mm² (solid) | |
| Conductor cross section AWG | 18 ... 16 (without ferrule) |
| 18 ... 16 (with ferrule) | |
| Insertion/withdrawal cycles | > 100 |
| Torque | 0.4 Nm (M12 knurl) |
| 0.8 Nm ... 1 Nm (Pressure screw with sleeve housing) | |
| 0.4 Nm (Screw plug insert with sleeve housing as far it will go) | |
| 0.2 Nm (Screw terminal blocks) | |
| Assembly instructions | The wires can be connected both with ferrules and without ferrules |
| The connector pin assignment can be rotated 90° to the cable outlet |
Material
| Flammability rating according to UL 94 | V0 |
|---|---|
| Contact material | CuZn |
| Contact surface material | Au |
| Contact carrier material | PA |
| Material of grip body | PA |
| Material, knurls | Zinc die-cast, nickel-plated |
| Sealing material | Viton (M12 socket) |
| NBR (Cable clamping) |
Standards and Regulations
| Standards/specifications | M12 connector IEC 61076-2-111 |
|---|---|
| Flammability rating according to UL 94 | V0 |
Classifications
