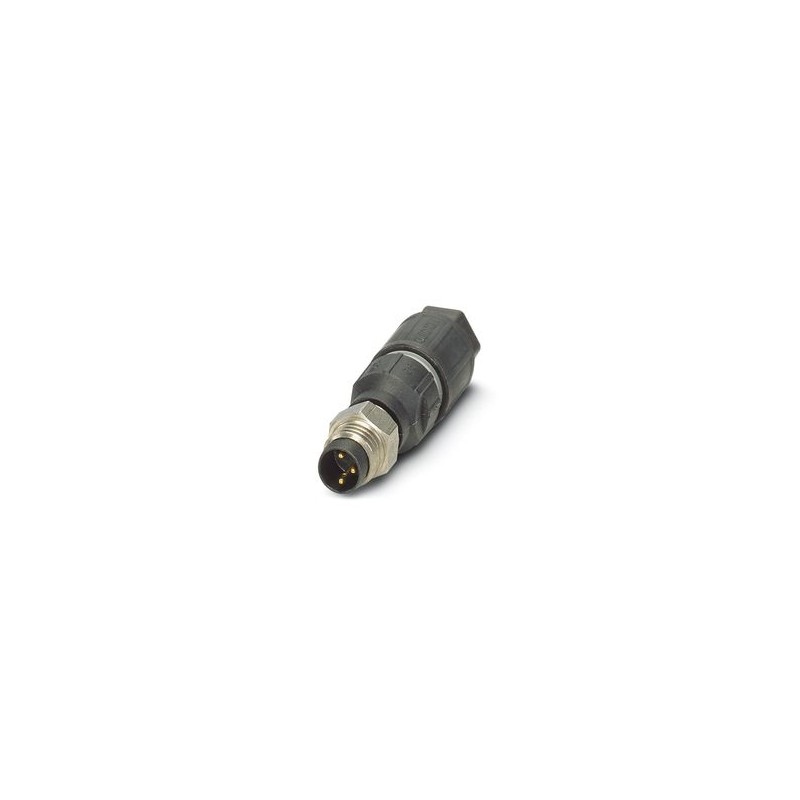

SACC-M 8MS-3QO-0,5-VA 1426313 PHOENIX CONTACT Sensor/actuator connector
SACC-M 8MS-3QO-0,5-VA
1426313
PHOENIX_CONTACT
Sensor/actuator connector
Connector, 3-pole, M8 straight male connector, Coding: A, Scroll connection. Insulation, knurling material: Stainless steel 1.4305, outer diameter of the cable 2.5 mm ... 5 mm
Connector, 3-position, Plug straight M8, coding: A, Insulation displacement connection, knurl material: Stainless steel 1.4305, external cable diameter 2.5 mm ... 5 mm
Connectors > Circular connector for field assembly (industrial connector)
QUICKON Installation System (QPD)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| General | NOTE:Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g. by using cable ties. |
| Connection method | Insulation displacement connection |
| Product type | Circular connector (cable-side) |
| Number of positions | 3 |
| No. of cable outlets | 1 |
| Shielded | no |
| Coding | A |
| Cable outlet | straight |
| Insulation characteristics | |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Dimensional drawing |  |
| Length | 43.4 mm |
| External dimensions | |
| Outside diameter | 2.5 mm ... 5 mm ±0.2 mm |
| Housing | |
| Diameter housing | 12.5 mm |
| Flammability rating according to UL 94 | HB |
| Seal material | NBR |
| Material of grip body | PA 6 |
| Contact material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | TPU GF |
| Material for screw connection | Stainless steel 1.4305 |
| Wire insulation material | PVC / PE / PP / rubber |
| Conductor connection | |
| Connection method | Insulation displacement connection |
| Connection cross section | 0.25 mm² ... 0.5 mm² |
| Connection cross section AWG | 24 ... 20 |
| Tightening torque | 0.6 Nm (Pressure nut) |
| 0.2 Nm (M8 knurl) | |
| Rated surge voltage | 0.8 kV |
| Contact resistance | ≤ 5 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 60 V AC |
| 60 V DC | |
| Nominal current IN | 4 A |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 100 |
| Connection 1 | |
| Head design | Plug |
| Head cable outlet | straight |
| Head thread type | M8 |
| Coding | A |
| External cable diameter () | 2.5 mm ... 5 mm |
| Ambient conditions | |
| Degree of protection | IP65 |
| IP67 | |
| IP69K | |
| Ambient temperature (operation) | -25 °C ... 80 °C (Plug / socket) |
| M8 | |
| Standard designation | M8 connector |
| Standards/specifications | IEC 61076-2-104 |
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Other |
| Diameter connector (EF007496) | 12.5 mm |
| Number of data contacts (EF012232) | 0 |
| Number of power contacts (EF012216) | 0 |
| Number of control contacts (EF012217) | 3 |
| For cable outer diameter (EF009475) | 2.5 mm |
| Type of housing (EF006980) | Straight |
| Rated current In (EF008250) | 4 A |
| Ambient temperature (EF002386) | -25 °C |
| Rated voltage (EF000228) | 60 V |
| Over voltage category (EF006785) | II |
| Pollution degree (EF006786) | 3 |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.25 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.25 mm² |
| Connectable conductor cross section solid-core (EF007337) | 0.25 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.25 mm² |
| Type of electric connection (EF003961) | Insulation displacement connection |
| Material of contact surface (EF004020) | Nickel |
| Housing material (EF001596) | Plastic |
| Coating housing (EF001601) | Other |
| Material thread ring (EF012304) | Other |
| Type of locking (EF000208) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | HB |
| With protective conductor (EF007468) | No |
| Degree of protection (IP), mounted (EF007466) | IP65 |
| Min. number of insertion cycles (EF012212) | 100 |
| Screened (EF000881) | No |
| With status indication (EF001602) | No |
