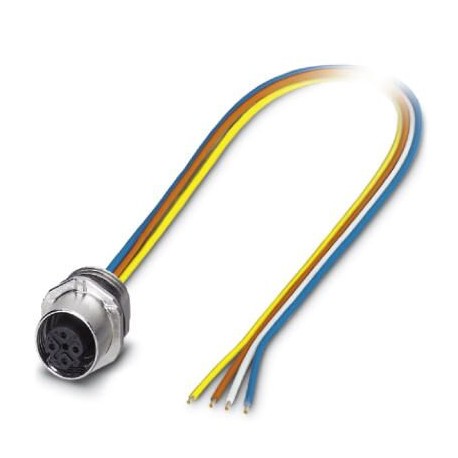

SACC-E-FSD-4P-M16/0,5 SCO GN 1067227 PHOENIX CONTACT Bus system flat-type plug SACC-E-FSD-4P-M16/0,5 SCO GN ..
SACC-E-FSD-4P-M16/0,5 SCO GN
1067227
PHOENIX_CONTACT
100
Bus system flat-type plug - SACC-E-FSD-4P-M16/0,5 SCO GN - 1067227

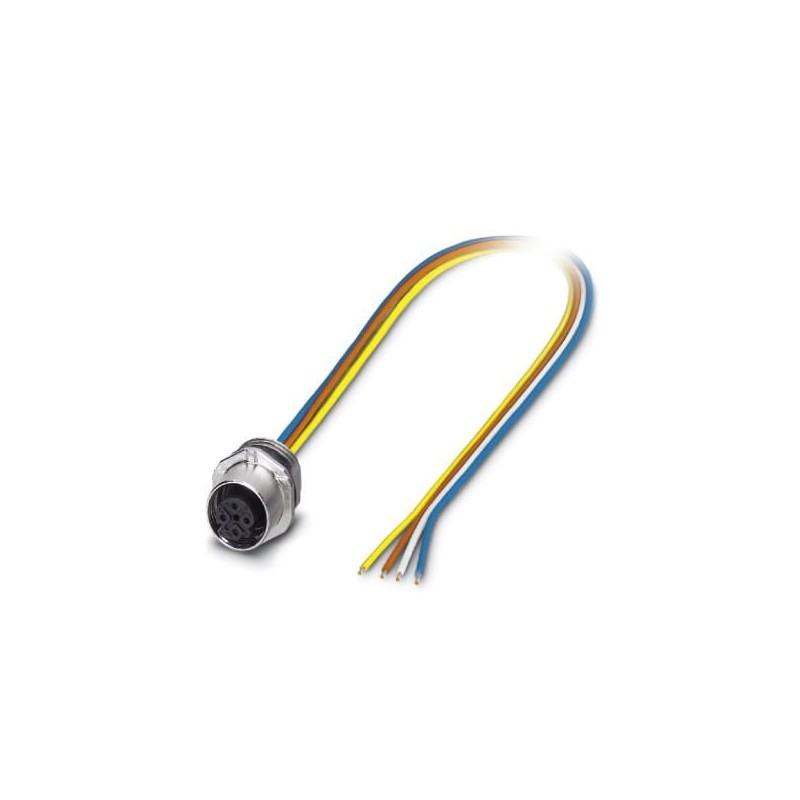

Built-in mounting female for bus system, PROFINET, 4-pole, SPEEDCON M12, D-coded, front wall mount/M16 thread screw mount, with 0.5 m TPE braided thread, 4 x 0.34 mm²
Connectors > Circular connector, mounting (with cable)
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Bus system flush-type socket, PROFINET, 4-pos., M12-SPEEDCON, D-coded, front/screw mounting with M16 thread, with 0.5 m TPE litz wire, 4 x 0.34 mm²
Key Commercial Data
| Orderkey | 1067227 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626735962 |
| Custom tariff number | 85444290 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss
| eCl@ss 8.0 | 27279218 |
|---|---|
| eCl@ss 9.0 | 27440103 |
ETIM
| ETIM 5.0 | EC001855 |
|---|---|
| ETIM 6.0 | EC002061 |
| Feature Name | Feature Value |
|---|---|
| Cable length (EF000536) | 0.5 mm |
| Type of plug-in contact, outer side (EF005528) | None |
| Mounting method (EF000003) | Front mounting |
| Housing material (EF001596) | Other |
| Material core insulation (EF000061) | Other |
| Material of contact surface (EF004020) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Ambient temperature (EF002386) | 85 °C |
| Operating temperature (EF002393) | -25 °C |
| Rated voltage (EF000228) | 250 V |
| With shield connection (EF002535) | No |
| Screw-in thread (EF012303) | M12 |
| Core cross section (EF000018) | 0.34 mm² |
| Min. number of insertion cycles (EF012212) | 100 |
| Degree of protection (IP), mounted (EF007466) | Other |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 68 Mbytes |
|
