PHOENIX CONTACT Field Device Connectors (FDC)SACC-CIM12MSD4PL180THRSAMPLE 1413550 PHOENIX CONTACT Sample set
PHOENIX CONTACT SACC-CIM12MSD4PL180THRSAMPLE 1413550 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

SACC-CIM12MSD4PL180THRSAMPLE 1413550 PHOENIX CONTACT Sample set

Reference: SACC-CIM12MSD4PL180THRSAMPLE

Code: 1413550

Manufacturer: PHOENIX CONTACT

Description:

Sample set

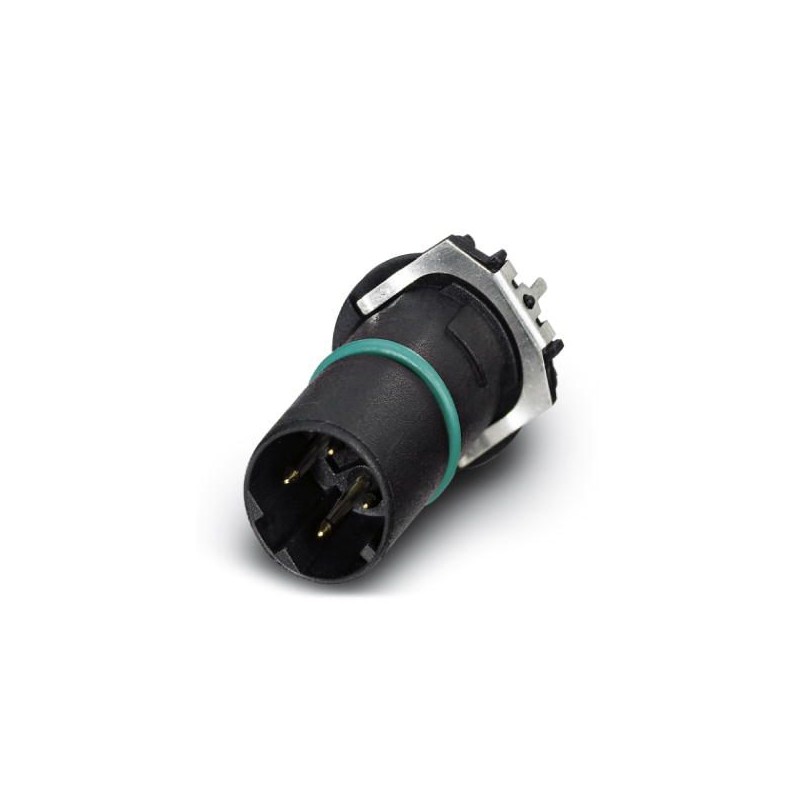

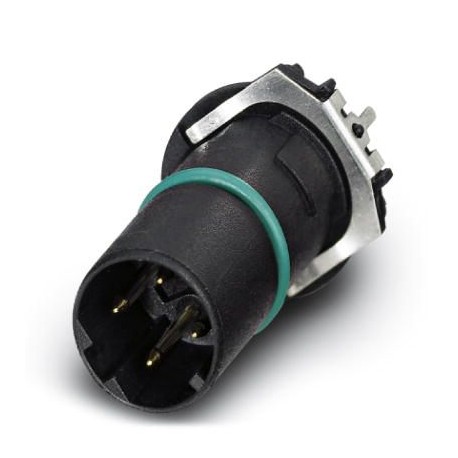

Built-in mounting male for bus system, Ethernet, 4-pole, D-coded, with straight THR welding connection, contact insert only

Categories:

  • Connectors > Contact insert for circular connectors
  • PHOENIX CONTACT > Field Device Connectors (FDC)

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX CONTACT

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 8,13 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2-3 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Key Commercial Data

Orderkey1413550
Packing unit1 pc
NoteMade to Order (non-returnable)
GTIN4055626008202
Weight per Piece (excluding packing)4.500 g
Custom tariff number85366990
Country of originDE (Germany)

Ambient conditions

Ambient temperature (operation)-25 °C ... 85 °C (Plug / socket)
-40 °C ... 85 °C (without mechanical actuation)
Degree of protectionIP67

General

NoteThe electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Rated current at 40°C4 A
Rated voltage250 V
Rated surge voltage2.5 kV
Number of positions4
Insulation resistance≥ 100 MΩ
CodingD - data
Standards/regulationsM12 connector IEC 61076-2-101
Overvoltage categoryII
Degree of pollution3
Connection methodTHR solder connection
Insertion/withdrawal cycles> 100
Torque3 Nm ... 4 Nm (Installation-side)
Mounting typePCB mounting

Material

Flammability rating according to UL 94V0
Contact materialCuZn
Contact surface materialAu
Contact carrier materialPA 6.6
Sealing materialFKM / EPDM

Cable

Standards/specificationsM12 connector IEC 61076-2-101
Ambient temperature (operation)-40 °C ... 85 °C (cable, fixed installation)
-25 °C ... 85 °C (cable, flexible installation)

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-101
Flammability rating according to UL 94V0

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
