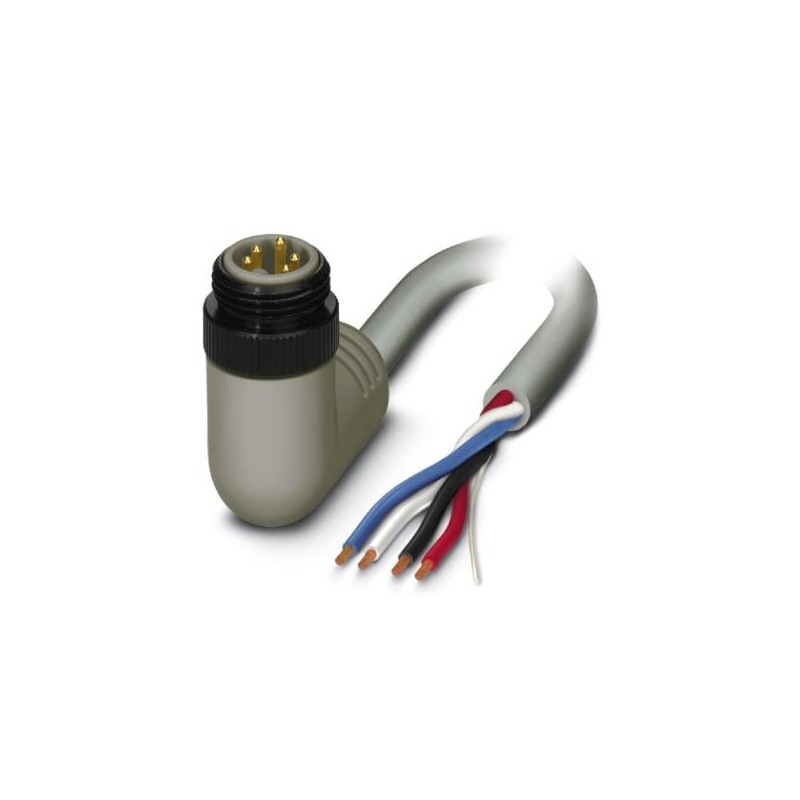

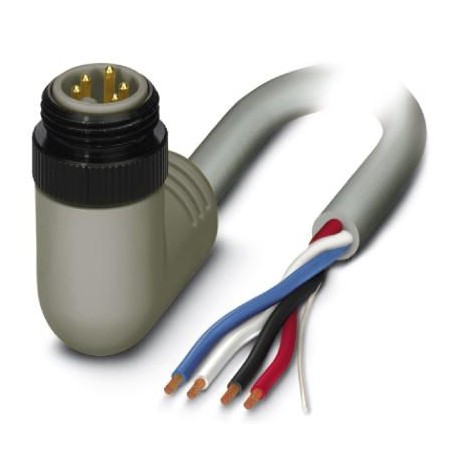

SAC-5P-MINMR/ 2,0-U40 1416675 PHOENIX CONTACT Bus system cable
Reference: SAC-5P-MINMR/ 2,0-U40
Code: 1416675
Manufacturer: PHOENIX CONTACT
Description:
Bus system cable
Categories:
- PHOENIX CONTACT > Industrial Field Connectivity (IFC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX CONTACT
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
LAST VIEWED
MORE INFO
Key Commercial Data
| Orderkey | 1416675 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626219356 |
| Weight per Piece (excluding packing) | 22.220 g |
| Custom tariff number | 85444290 |
| Country of origin | MX (Mexico) |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 75 °C (Plug / socket) |
|---|---|
| Degree of protection | IP68 |
General
| Rated current at 40°C | 8 A |
|---|---|
| Rated voltage | 600 V AC |
| 600 V DC | |
| Number of positions | 5 |
| Color handle area | gray |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A - standard |
| Signal type/category | DeviceNet™ |
| Status display | No |
| Protective circuit/component | unwired |
| Torque | 10 lbf-in. |
| 1.12 Nm |
Material
| Contact material | CuZn |
|---|---|
| Contact surface material | Au |
| Contact carrier material | PVC |
| Material of grip body | PVC |
| Material, knurls | Anodized aluminum |
Cable
| Cable type | DeviceNet trunk cable |
|---|---|
| Cable abbreviation | U40 |
| Cable structure | 2xAWG18+2xAWG15+1xAWG18 |
| Conductor cross section | 2 x AWG 18 data cable |
| 2 x AWG 15 power supply | |
| 1 x AWG 18 drain wire | |
| AWG signal line | 18 |
| AWG power supply | 15 |
| Conductor structure signal line | 19 x AWG 30 |
| Conductor structure, voltage supply | 19 x AWG 28 |
| Wire colors | Red-black, blue-white |
| Twisted pairs | 2 cores to the pair |
| Type of pair shielding | Plastic-coated aluminum foil, aluminum side outside |
| Overall twist | 2 pairs around a drain wire in the center to the core |
| Shielding | Tinned copper braided shield |
| Optical shield covering | 65 % |
| External sheath, color | gray |
| External cable diameter D | 11.43 mm |
| Outer sheath, material | PVC |
| Material conductor insulation | Foamed PE |
| PVC (Power supply) | |
| Conductor material | Tin-plated Cu litz wires |
| Flame resistance | UL 1581, FT4 |
| Resistance to oil | OIL RES I according to UL 2256 |
| Other resistance | UV resistant (720 h) UL 2556 |
| Ambient temperature (operation) | -20 °C ... 75 °C (cable, fixed installation) |
| -5 °C ... 80 °C (cable, flexible installation) |
Standards and Regulations
| Flame resistance | UL 1581, FT4 |
|---|---|
| Resistance to oil | OIL RES I according to UL 2256 |
| Other resistance | UV resistant (720 h) UL 2556 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
