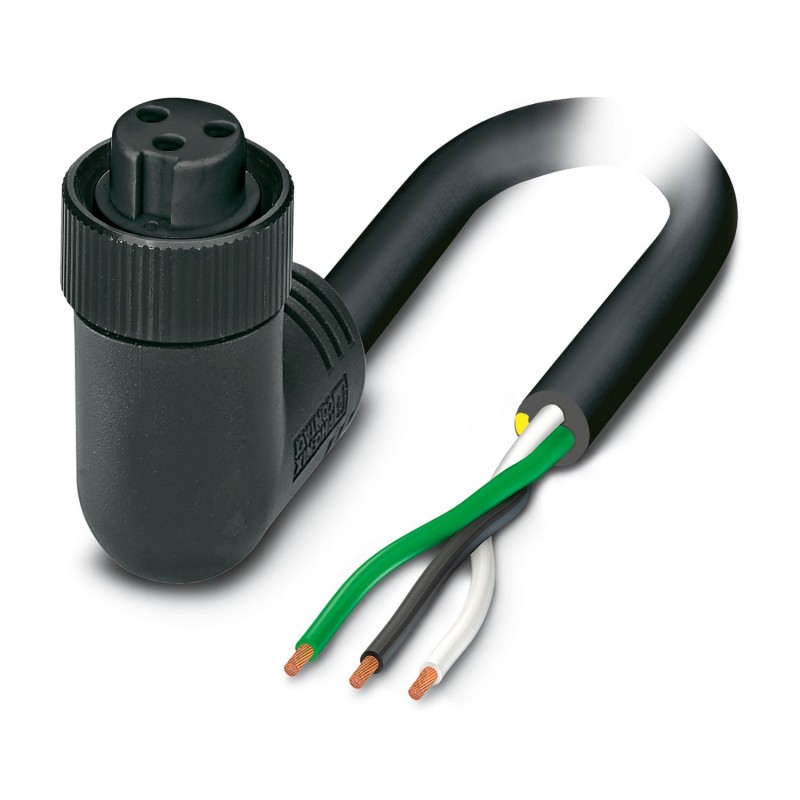

SAC-3P- 5,0-U50/MINFR 1417095 PHOENIX CONTACT Power cable
SAC-3P- 5,0-U50/MINFR
1417095
PHOENIX_CONTACT
Power cable
Industrial Field Connectivity (IFC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1417095 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626222325 |
| Weight per Piece (excluding packing) | 22.220 g |
| Custom tariff number | 85444290 |
| Country of origin | MX (Mexico) |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 105 °C (Plug / socket) |
|---|---|
| Degree of protection | IP68 |
General
| Rated current at 40°C | 23.5 A |
|---|---|
| Rated voltage | 600 V AC |
| 600 V DC | |
| Number of positions | 3 |
| Color handle area | black |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A - standard |
| Status display | No |
| Protective circuit/component | unwired |
| Insertion/withdrawal cycles | 100 |
| Torque | 10 lbf-in. |
| 1.12 Nm |
Material
| Contact material | CuZn |
|---|---|
| Contact surface material | AU |
| Contact carrier material | PVC |
| Material of grip body | PVC |
| Material, knurls | Anodized aluminum |
Cable
| Cable type | TC-ER/600V, STOOW |
|---|---|
| Cable abbreviation | U50 |
| AWG signal line | 14 |
| Conductor cross section signal conductor | 3 x AWG 14 |
| Conductor cross section voltage supply | |
| Wire colors | Green 1, black 2, white 3 |
| Overall twist | 3 wires, twisted |
| External sheath, color | black |
| External cable diameter | 14.53 mm |
| Outer sheath, material | PVC |
| Material conductor insulation | PVC |
| Conductor material | Bare Cu litz wires |
| Nominal voltage, cable | 600 V |
| Flame resistance | UL 1581, FT2 |
| Resistance to oil | Premium oil resistance (jacket and conductor) |
| Other resistance | UV resistant (720 h) UL 2556 |
| Ambient temperature (operation) | -40 °C ... 105 °C (cable, fixed installation) |
| -30 °C ... 105 °C (cable, flexible installation) |
Standards and Regulations
| Flame resistance | UL 1581, FT2 |
|---|---|
| Resistance to oil | Premium oil resistance (jacket and conductor) |
| Other resistance | UV resistant (720 h) UL 2556 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 57 Mbytes |
|
