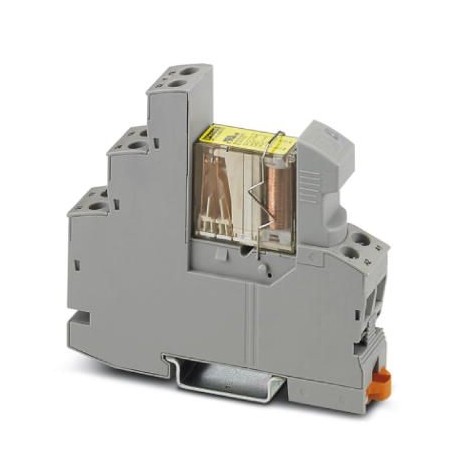

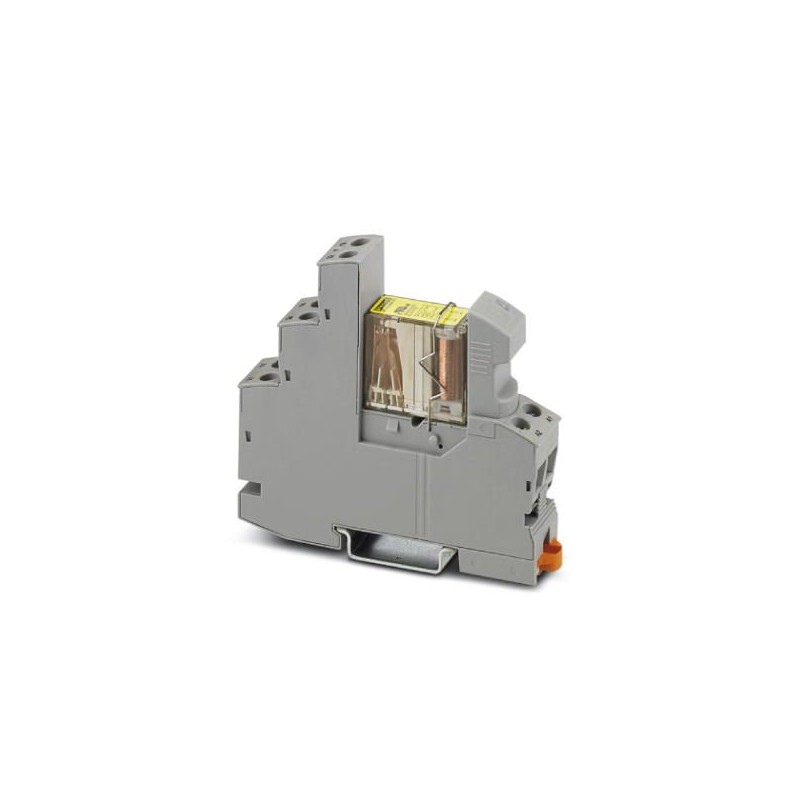

RIF-1-RSC-LDP-24DC/2X21/FG 2909848 PHOENIX CONTACT Relay Module
RIF-1-RSC-LDP-24DC/2X21/FG
2909848
PHOENIX_CONTACT
10
Relay Module
Pre-assembled relay module with screw connection, consisting of: relay socket, safety relay with forced-conduction contacts according to DIN EN 61810-3, plug-in indication/anti-parasitic module and clamping flange, contact type: 2 switches, input voltage: 24 V DC
INTERFACE Components (IF)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2909848 |
|---|---|
| Packing unit | 10 pc |
| GTIN | 4055626394596 |
| Weight per Piece (excluding packing) | 72.000 g |
| Custom tariff number | 85364110 |
| Country of origin | CN (China) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Coil side
| Nominal input voltage UN | 24 V DC |
|---|---|
| Input voltage range in reference to UN | see diagram |
| Typical input current at UN | 30 mA |
| Typical response time | 10 ms |
| Typical release time | 10 ms |
| Coil voltage | 24 V DC |
| Protective circuit | Damping diode |
| Operating voltage display | Yellow LED |
| Power dissipation for nominal condition | 0.72 W |
Contact side
| Contact type | 2 changeover contacts, forcibly actuated |
|---|---|
| Type of switch contact | Single contact |
| Contact material | AgNi |
| Maximum switching voltage | 250 V AC/DC |
| Minimum switching voltage | 15 V AC/DC |
| Min. switching current | 10 mA |
| Maximum inrush current | 6 A |
| Limiting continuous current | 6 A |
| Interrupting rating (ohmic load) max. | 144 W (at 24 V DC) |
| 288 W (at 48 V DC) | |
| 88 W (at 110 V DC) | |
| 110 W (at 220 V DC) | |
| 1500 VA (for 250 V AC) | |
| Switching capacity | 2 A (at 24 V, DC13) |
| 3 A (at 230 V, AC15) |
Connection data input side
| Connection name | Coil side |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Conductor cross section solid | 0.5 mm² ... 4 mm² |
| Conductor cross-section solid (2 conductors with same cross section) | 0.5 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.5 mm² ... 4 mm² |
| 0.5 mm² ... 4 mm² (Ferrule with plastic sleeve) | |
| Conductor cross section flexible (2 conductors with same cross section) | 0.5 mm² ... 2.5 mm² |
| 0.5 mm² ... 1.5 mm² (TWIN ferrule with plastic sleeve) | |
| Conductor cross section AWG | 20 ... 10 (solid) |
| 20 ... 12 (flexible) | |
| Torque | 0.5 Nm ... 0.6 Nm |
Connection data output side
| Connection name | Contact side |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Conductor cross section solid | 0.5 mm² ... 4 mm² |
| Conductor cross-section solid (2 conductors with same cross section) | 0.5 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.5 mm² ... 4 mm² |
| 0.5 mm² ... 4 mm² (Ferrule with plastic sleeve) | |
| Conductor cross section flexible (2 conductors with same cross section) | 0.5 mm² ... 2.5 mm² |
| 0.5 mm² ... 1.5 mm² (TWIN ferrule with plastic sleeve) | |
| Conductor cross section AWG | 20 ... 10 (solid) |
| 20 ... 12 (flexible) | |
| Torque | 0.5 Nm ... 0.6 Nm |
General
| Operating mode | 100% operating factor |
|---|---|
| Degree of protection | IP20 (Relay base) |
| RT II (Relay) | |
| Mechanical service life | approx. 107cycles |
| Mounting position | any |
| Assembly instructions | In rows with zero spacing |
| B10d | 600000 Cycles (AC1; 250 V / 6 A; 1 NO) |
| 900000 Cycles (AC1; 250 V / 3 A; 1 NO) | |
| 1800000 Cycles (AC1; 250 V / 1,5 A; 1 NO) | |
| 180000 Cycles (AC15; 250 V / 3 A; 1 NO) | |
| 560000 Cycles (AC15; 250 V / 2 A; 1 NO) | |
| 4600000 Cycles (AC15; 250 V / 0,75 A; 1 NO) | |
| 360000 Cycles (DC13; 24 V / 3 A; 1 NO) | |
| 740000 Cycles (DC13; 24 V / 1,5 A; 1 NO) | |
| 4200000 Cycles (DC13; 24 V / 0,75 A; 1 NO) |
Standards and Regulations
| Designation | Air clearances and creepage distances between the power circuits |
|---|---|
| Standards/regulations | DIN EN 50178/VDE 0160 |
| EN 50205 | |
| Rated insulation voltage | 250 V |
| Rated surge voltage | 6 kV |
| Insulation | safe isolation |
| Degree of pollution | 2 |
| Overvoltage category | III |
| Flammability rating according to UL 94 | V2 |
| Conformance | CE-compliant |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Articles in set
Classifications
eCl@ss 5.027371601eCl@ss 5.127371600eCl@ss 6.027371600eCl@ss 7.027371601eCl@ss 8.027371601eCl@ss 9.027371601
