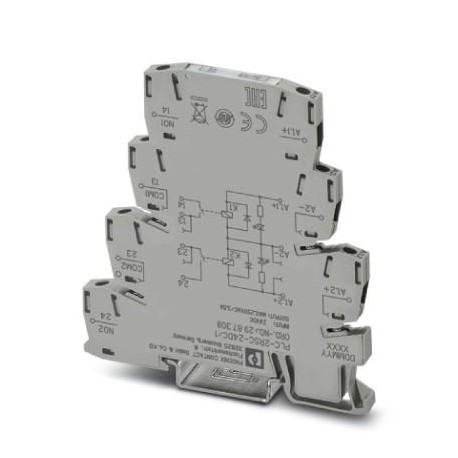

PLC-2RSC-24DC/ 1 2987309 PHOENIX CONTACT Relay Module
PLC-2RSC-24DC/ 1
2987309
PHOENIX_CONTACT
10
Relay Module
PLC-INTERFACE with two independent relays, consisting of PLC-BSC.../21 base terminal block with screw connection and two integrated relays, power contact, for installation on NS 35/7.5 rail, 2 x 1 closing contact, input voltage 24 V DC
Relays > Switching relay
Industrial Relays
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2987309 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 402 (C-5-2017) |
| GTIN | 4046356451215 |
| Weight per Piece (excluding packing) | 34.000 g |
| Custom tariff number | 85364190 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 60 °C |
Coil side
| Nominal input voltage UN | 24 V DC |
|---|---|
| Typical input current at UN | 7 mA |
| Typical response time | 4 ms |
| Typical release time | 6 ms |
| Protective circuit | Reverse polarity protection Polarity protection diode |
| Free-wheeling diode Damping diode | |
| Operating voltage display | Yellow LED |
| Power dissipation for nominal condition | 0.17 W |
Contact side
| Contact type | 2 N/O contacts (2 relays with 1 N/O contact) |
|---|---|
| Type of switch contact | Single contact |
| Note regarding the switch contact | 2x |
| Contact material | AgNi |
| Maximum switching voltage | 250 V AC |
| 30 V DC | |
| Minimum switching voltage | 24 V AC/DC |
| Min. switching current | 5 mA |
| Limiting continuous current | 3.5 A |
| Interrupting rating (ohmic load) max. | 84 W (at 24 V DC) |
| 24 W (at 48 V DC) | |
| 24 W (at 60 V DC) | |
| 31 W (at 110 V DC) | |
| 46 W (at 220 V DC) | |
| 875 VA (for 250 V AC) |
Connection data 1
| Connection name | Coil side |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 26 ... 14 |
Connection data 2
| Connection name | Contact side |
|---|---|
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 26 ... 14 |
General
| Test voltage relay winding/relay contact | 3 kV AC (50 Hz, 1 min.) |
|---|---|
| Test voltage relay contact/relay contact | 3 kV AC (50 Hz, 1 min.) |
| Operating mode | 100% operating factor |
| Degree of protection | IP20 (Relay base) |
| Mechanical service life | 2x 107cycles |
| Mounting position | any |
| Assembly instructions | In rows with zero spacing |
| Net weight (SAP) | 34 g |
Standards and Regulations
| Designation | Air clearances and creepage distances between the power circuits |
|---|---|
| Standards/regulations | IEC 60664 |
| EN 50178 | |
| Rated insulation voltage | 250 V AC |
| Rated surge voltage | 4 kV |
| Insulation | Basic insulation |
| Degree of pollution | 2 |
| Overvoltage category | III |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 5.027371601eCl@ss 5.127371601eCl@ss 6.027371601eCl@ss 7.027371601eCl@ss 8.027371601eCl@ss 9.027371601
| Feature Name | Feature Value |
|---|---|
| Type of electric connection (EF003961) | Screw connection |
| Complete with socket (EF003359) | Yes |
| With detachable clamps (EF003340) | No |
| With LED indication (EF005950) | Yes |
| Rated control supply voltage DC (EF003980) | 18 V |
| Voltage type for actuating (EF008242) | DC |
| Drive, polarization (EF003355) | Polarized |
| Drive, switching attitude (EF003356) | Mono stable |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as normally open contact (EF008256) | 2 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Type of switch contact (EF003358) | Single contact |
| With forced-guided contacts (EF003357) | No |
| Material of contact insert (EF008521) | Other |
| Material of contact surface (EF004020) | Untreated |
| Nominal current (EF000001) | 0.007 A |
| Degree of protection (IP) (EF005474) | IP20 |
| Width (EF000008) | 6.2 mm |
| Height (EF000040) | 80 mm |
| Depth (EF000049) | 94 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX INTERFACE TECHNOLOGY AND SWITCHING DEVICES EN .pdf | 28 Mbytes |
|
| PHOENIX CONTACT-2987309-PLC-2RSC-24DC/ 1 | 135 Kbytes |
|
